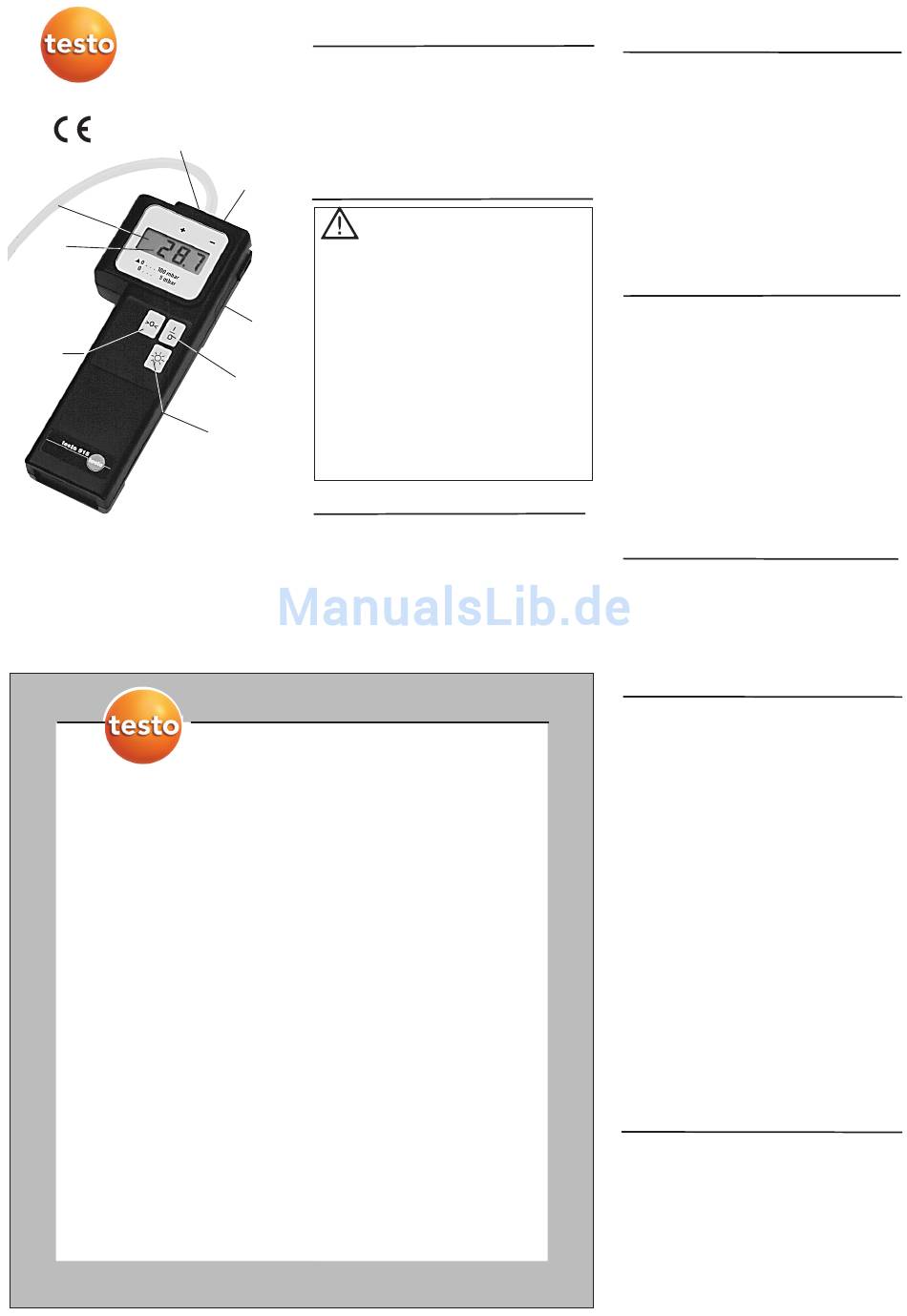

testo 515 Bedienungsanleitung Seite 2

Digital manometer
switch-over measuring range
Instruction manual
Excess pressure
inlet (+)
Display
Display of
the upper
meas. range
Zero point
adjustment
Touch button for
Meas. instr. conforms
with EN 50 081-1
and EN 50 082-1
Testo
AG
Postfach 1140, D-79849 Lenzkirch
Testo-Strasse 1, D-79853 Lenzkirch
Telefon (0 76 53) 6 81 - 0, Telefax (0 76 53) 68 11 00
Wir bestätigen, daß dieses Testo-Produkt
unter Beachtung eines zertifizierten Quaitäts-
sicherungssystems nach DIN ISO 9001
abgeglichen wurde.
Die dafür verwendeten Meßeinrichtungen
werden regelmäßig kalibriert und sind rück-
führbar auf die nationalen Normale der Physi-
kalisch Technischen Bundesanstalt (PTB)
Deutschlands oder auf andere nationale Nor-
male. Wo keine nationalen Normale existieren,
entspricht das Meßverfahren den derzeit gülti-
gen technischen Regeln und Normen.
Dieses Kalibrier-Protokoll belegt die Einhal-
tung der von uns zugesagten Toleranzen.
Sehr gerne informieren wir Sie über Kalibrier-
Zertifikate, die die Toleranzen des ge-sam-
ten Meßsystems (Meßgerät und Fühler)
beinhalten.
Dieses Zertifikat benötigen Sie, wenn das
Meßsystem in qualitätsrelevanten Prozessen
innerhalb eines nach DIN ISO 9001 zertifi-
ziertem Unternehmen eingesetzt wird.
Unsere Kalibrierlabors für Temperatur, Feuch-
te und Strömung sind vom Deutschen Kali-
brierdienst (DKD) akkreditierte Kalibrierlabors.
DKD-Kalibrierscheine werden für Messungen
gefordert, bei denen die Genauigkeit eine ent-
scheidende Rolle spielt.
testo 515
The highly accurate digital manometer testo
with automatic
515 is used to measure all the differential pres-
sures needed when setting modern heating
systems. The automatic switch-over measuring
ranges in testo 515 make high accuracies pos-
sible in the upper as well as in the lower measu-
Negative
ring ranges.
pressure
inlet (-)
Observe the permissible storage and transport
temperature as well as the permissible operating
Protect the instrument from the sun.
Foreign matter should not enter the pressure
Battery
inlets (barometric pressure changes
section
On/Off
When carrying out precision measurements in
button
the lower measuring range, the temperature of
the instrument must be adapted to the ambient
temperature (waiting time approx. 30 minutes).
The zero point may drift otherwise.
display light
The pressure is measured in a pressure load
cell using a membrane spring which is displa-
ced according to the pressure difference bet-
ween the two chambers in the pressure load
cell. Using an inductive distance measuring
system this displacement is converted to an
electric signal.
We confirm that this Testo product was cali-
brated under the observation of a DIN ISO
9001 certified quality assurance system.
The measuring installations used for this cali-
bration are calibrated regularly and can be
traced back to the national standards of the
German Federal Physical and Technical Insti-
tution (PTB), or to other national standards.
Should no national standards exist, the mea-
suring procedure corresponds with the cur-
rently valid technical regulations and stan-
dards.
This certificate is required only if the measu-
ring system is to be used in processes rele-
vant to quality in a company certified to DIN
ISO 9001.
Our calibration laboratories for temperature,
humidity and velocity are calibration laborato-
ries accredited by the German Calibration
Service (DKD).
DKD calibration certificates are required for
measurements where accuracy plays a deci-
sive rôle.
1
Instructions
Safety advice
Read before use
Observe measuring ranges.
temperature.
Avoid using in corrosive gases.
could damage instruments with
low measuring ranges).
Do not blow into sleeves.
2
Mode of operation
Kalibrier-Protokoll
Calibration certificate
3
Initial operation
Switch on instrument: Press "On" button
Switch off instrument: Press "Off" button
If the "LOBAT" symbol appears in the display,
change the battery. The battery section is loca-
ted on the right side of the instrument.
If the pressure connections are open and zero
does not appear in the display proceed as
described under "Zero point adjustment". The
instrument is then ready to operate.
The display is lit up if the light button is kept
pressed.
4
Zero point adjustment
The instrument has an electronic zero point
adjustment function. An adjustment is recom-
mended before every measurement.
The zero point adjustment is carried out by
pressing the ">0<" button. The pressure
connections should be open.
The position of the instrument should not be
altered following zero point calibration.
Errors occurring due to overloading of the load
cell cannot be compensated by the electronics.
The zero point can no longer be adjusted. In
this case the instrument should be returned to
the factory.
testo 515 instrument ..........................1 year
Take care when opening the instrument
since inexpert handling or use of force can-
cels the warranty.
6
Technical data
Sensor: Pressure load cell with
membrane spring and
inductive measurement of
displacement
Meas. range 1: 0 to 5.00 mbar
(0 to 5.00 hPa)
20 times overload capacity
Linearity: ±0.5% meas. fin. val. ± 1 digit
Hysteresis: <0.1% meas. fin. val.
Meas. range 2: 5.00 to 100.0 mbar
(5.00 to 100.0 hPa)
20 times overload capacity
Linearity: ±2% meas. fin. val. ± 1 digit
Hysteresis: <0.1% of meas. final value
Automatic switch-over between
meas. range 1 and meas. range 2
Connection: Ø 6.5 mm hose NW 5
Storage/
transport
temperature: -10 to +70 °C
Operating
temperature: 0 to +60 °C
7
Ordering data
Description
testo 515 digital manometer
incl. battery, Instruction manual........0560.5150
Case ..............................................0516.5150
Silicone pipe 5 m .......................... 0554.0440
Pitot tube, chromium-plated brass
Ø 7 mm, length: 350 mm ................0635.2145
ISO calibration certificate..............0520.0005
5
Warranty
Order no.
