System overview

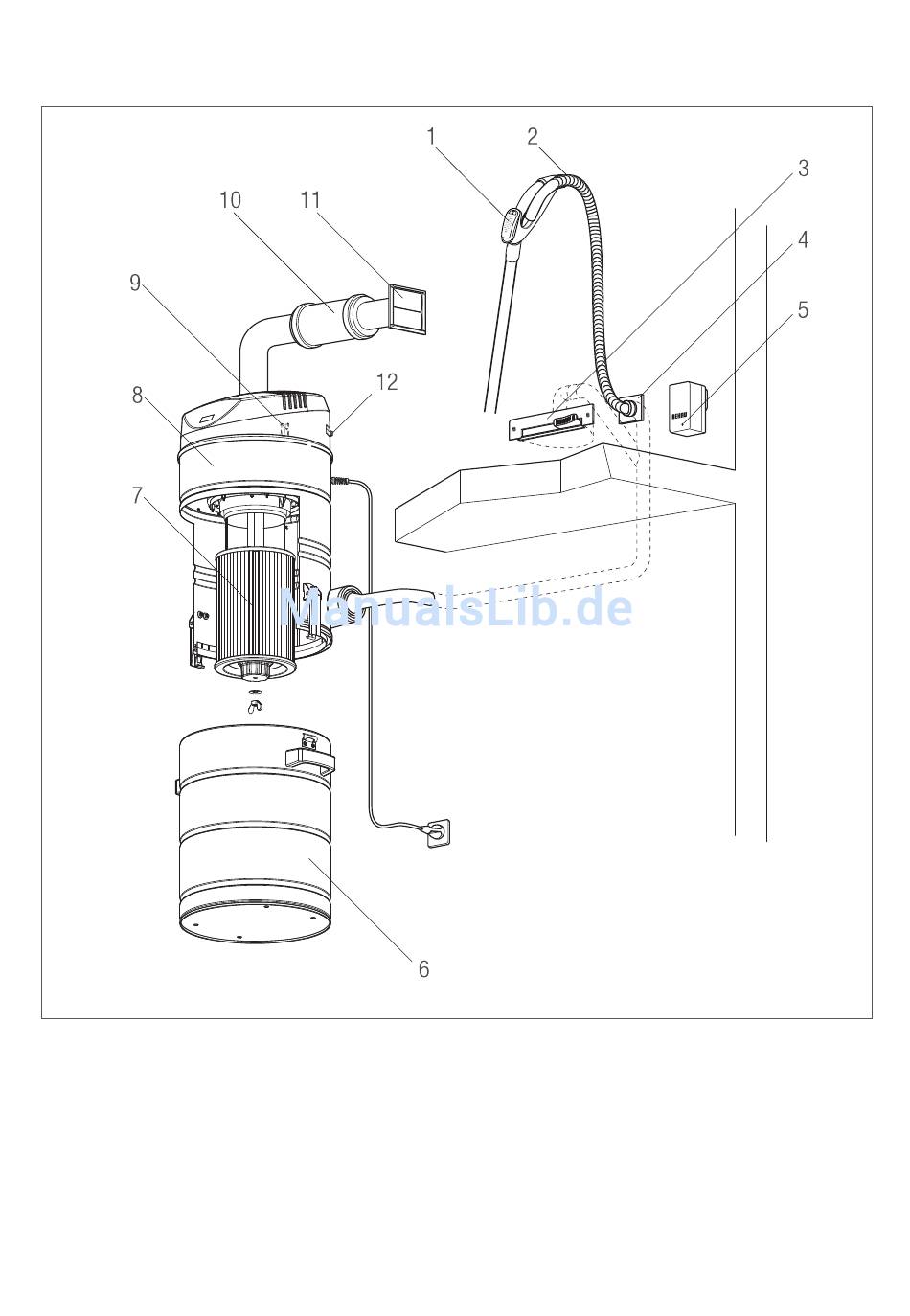

Fig. 2 System overview
1 Transmitter unit
2 Suction hose
3 Vac-Pan
4 Suction socket
5 Repeater (optional)
6 Waste container
26
7 Cartridge filter
8 Central vacuum unit
9 Main power switch
10 Vent air silencer
11 Vent air flap
12 Control cable connection
