Indenter Setting - Rennsteig SelectorCrimp Bedienungsanleitung

Operating Instructions
Four indent crimping tool SelectorCrimp
ATTENTION!
If a crimp process is interrupted, the crimp must be repeated using a new contact.
Crimped contacts must not be used. Risk of fire!

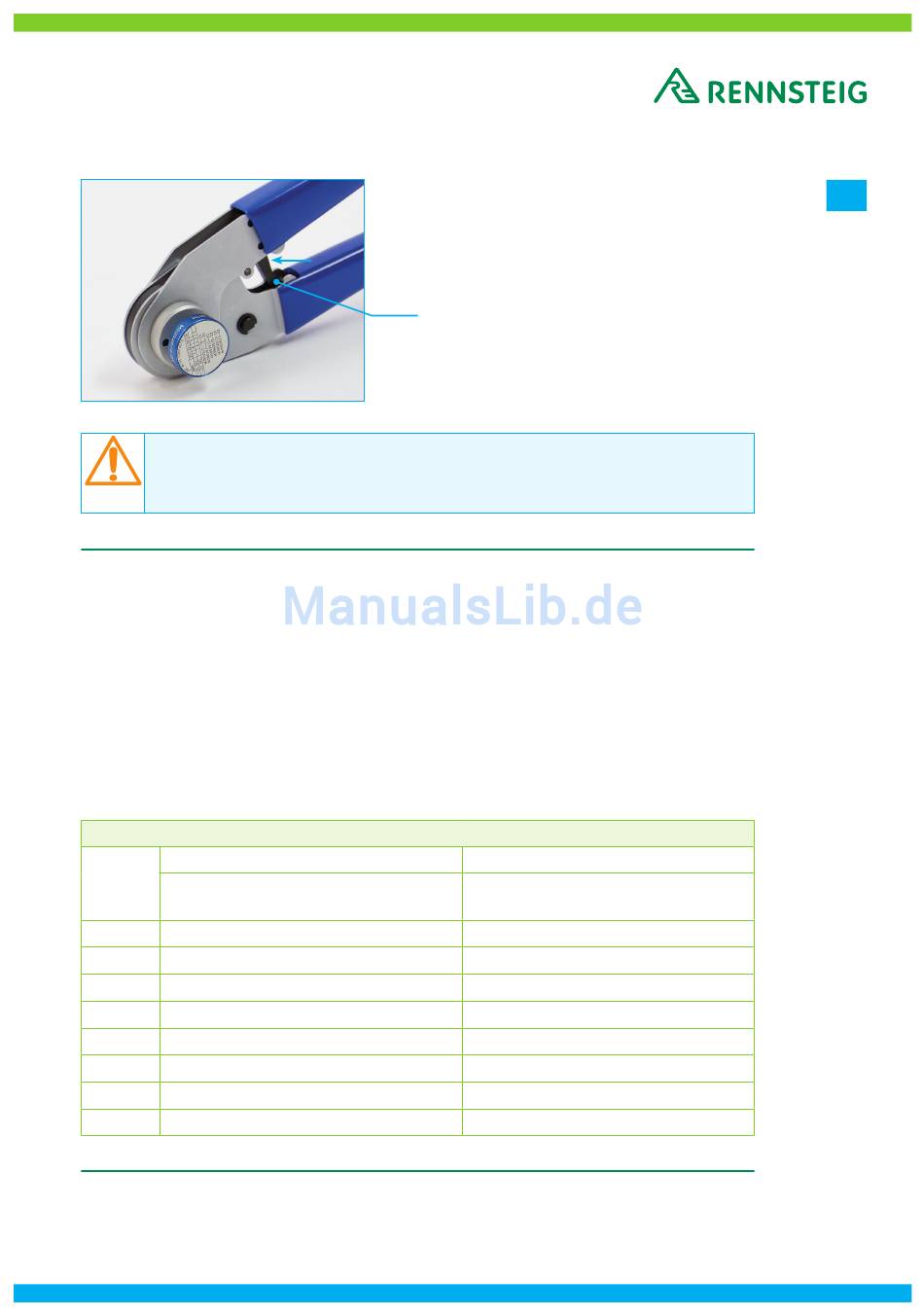

4 Indenter setting

· Open the pliers.
· Remove the safety clamp.
· Raise the adjusting disc over the locking pin.
· Rotate the adjusting disc to put it in the specified pawl position (1-8).
· Push down the adjusting disc onto the locking pin.
· Secure the adjusting disc with a locking spring against unintentional rotation.
Gauge dimensions according to M22520/2-01
Selector
number
1 0.33
2 0.41
3 0.48
4 0.56
5 0.66
6 0.76
7 0.86
8 0.99
Rev.: 19/05/2014
Pawl
Figure 2
mm
GO
± 0.0025
mm
NOGO
± 0.0025
0.46
0.53
0.61
0.69
0.79
0.89
0.99
1.12
