Operating Instructions
Four indent crimping tool SelectorCrimp

1 General

The four indent crimping tool of the "SelectorCrimp" series have been designed according to
the latest state of technology and to the recognised safety-related regulations. The tool must
only be used when fully serviceable.
The special crimping tool can be used to process twisted pin and socket contacts in
accordance with M39029 in the wire cross-section range of AWG 32 – AWG 20. They can
be equipped with a 4-part pin positioner and are compatible with the 1-part positioner in
accordance with M22520/2.
The tool must only be used for the purpose described in the Operating Instructions.
The manufacturer is not liable for damages resulting from arbitrary modifications or
non-authorised utilisation of the hand crimping tool.

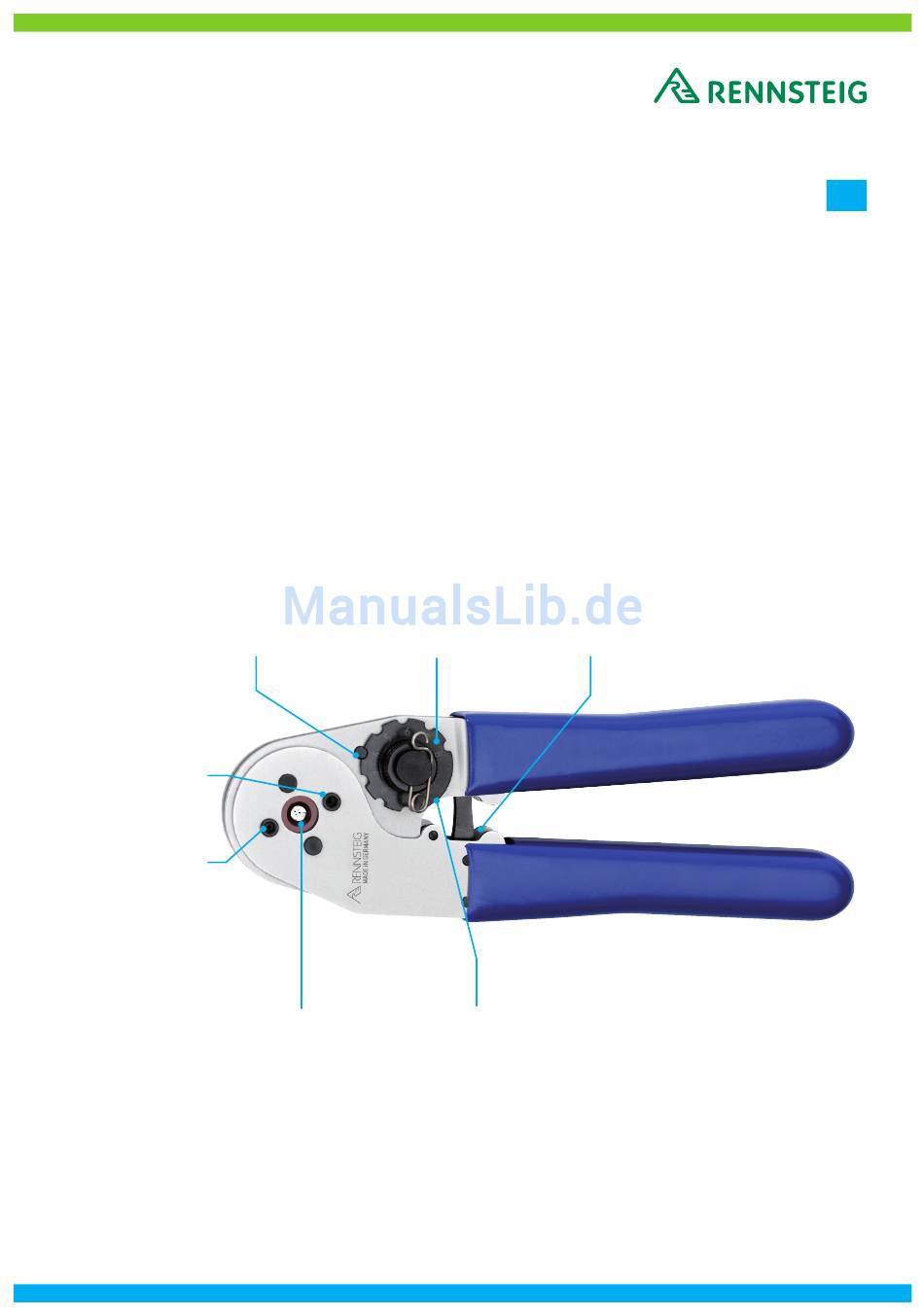

Locking pin
Retaining screw 1
Retaining screw 2
Rev.: 19/05/2014
Adjusting disc
Crimp opening
Emergency release lever
Safety clamp
EN
Figure 1
