Dimensioner - ergoline INSPIRATION 600 dynamic performance Gebrauchsanweisung

01/2016 1017001-00
5.2

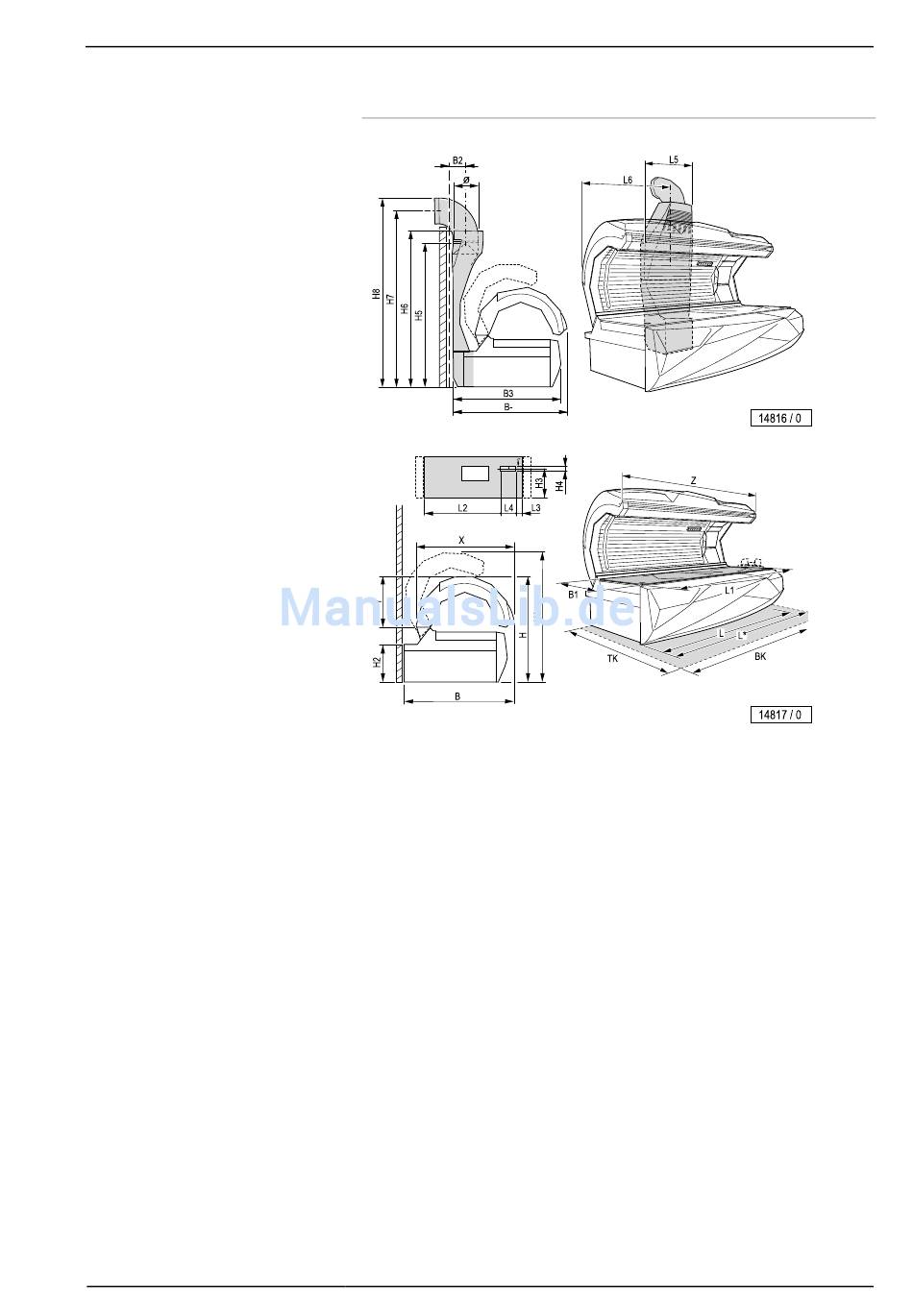

Dimensioner

B = 1443 mm
B- = 1530 mm
B1 = 830 mm
B2 = 167 mm
B3 = 1520 mm
L = 2270 mm
L* = 2370 mm
L1 = 2250 mm
L2 = 1670 mm
L3 = 45 mm
L4 = 245 mm
L5 = 650 mm
L6 = 1012 mm
H = 1322 mm
H1 = 1694 mm
H2 = 435 mm
H3 = 350 mm
H4 = 55 mm
H5 = 1874 mm
H6 = 1950 mm
H7 = 2183 mm
H8 = 2333 mm
Ø = 300 mm
BK = 2400 mm
TK = 2100 mm
X = 1277 mm
Y = 712 mm
Z = 2240 mm
Tekniska data
Bruksanvisning – 63/70
