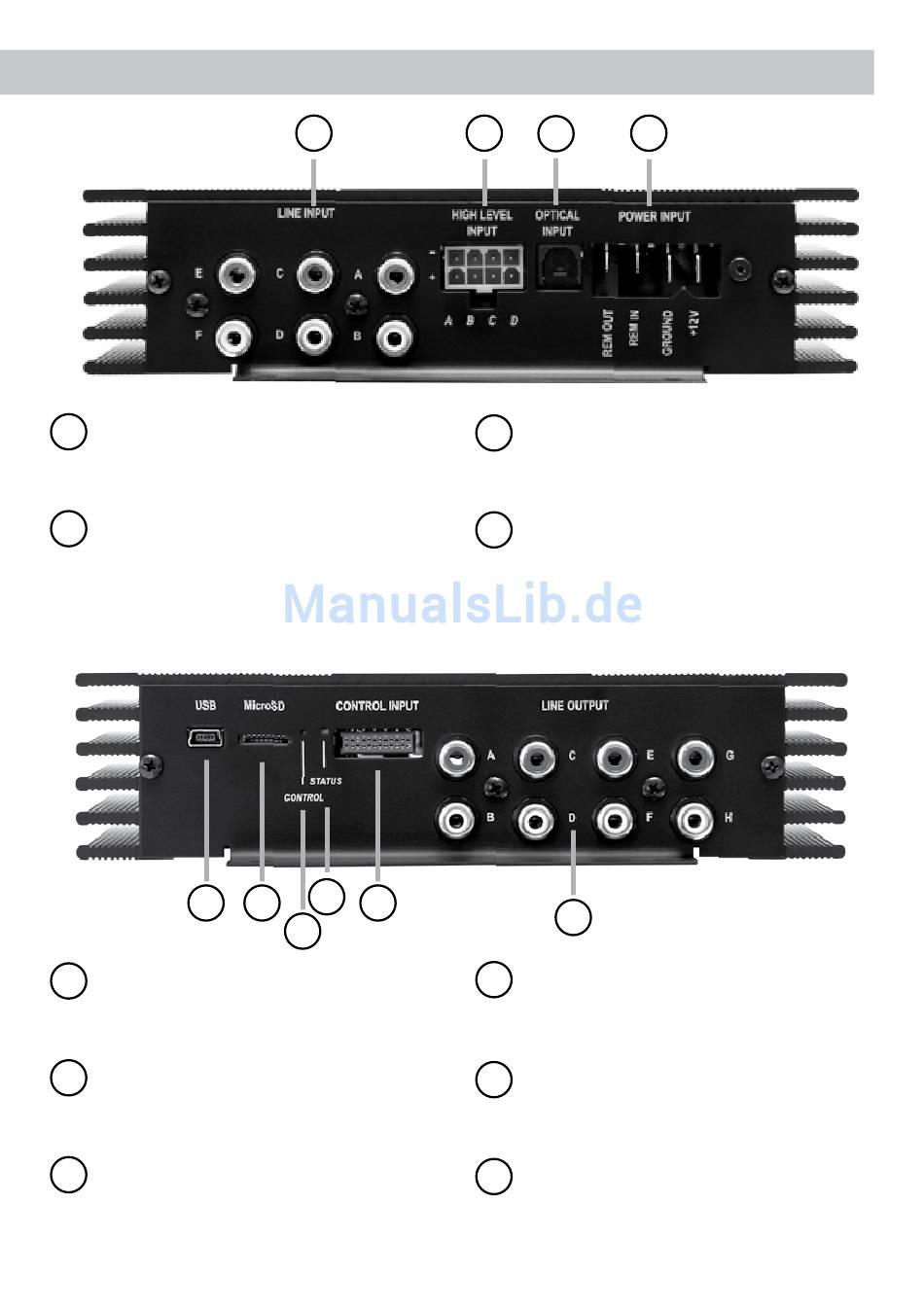

Connectors und Control Units

1
Line Inputs
RCA inputs for conneting pre-amplifier signals
2
Highlevel Input
High level speaker inputs for connecting a
factory radio or an after market radio without
pre-amp / line outputs
5
5
USB Input
For connecting the computer
6
MicroSD card reader
for updating the operating system and uploa-
ding DSP setup files.
7
Control Pushbutton
to switch or delete the setup storages
12
1
8
6 9
7
2 3 4
3
Optical Input
Optical input with SPDIF format for digital
stereo signals
4
Power Inputs
Connector for the DC power supply with an
additional remote in- and output.
The remote output has to be used to switch on
the amplifier/s.
10
8
Status LED
The LED shows the operation mode of the DSP
9
Control Input
Multifunctional connector for HELIX DSP
accessories
10
Line Outputs
Pre-amplifier outputs for connecting the
amplifier/s
