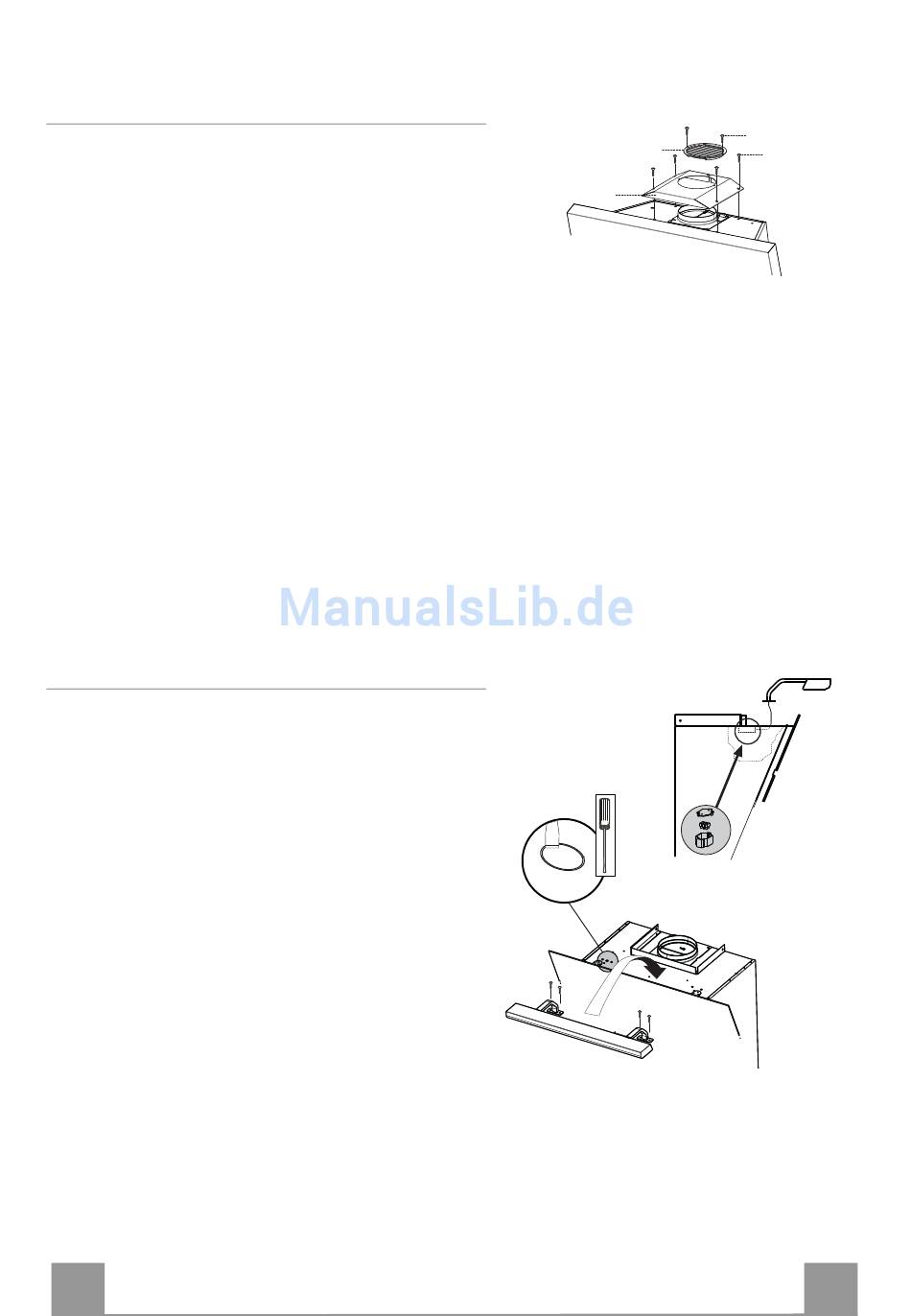

RECYCLING VERSION AIR OUTLET
To install the hood in recycling version, the op-
tional charcoal filter kit must be purchased.
• Remove the chimney angle bracket.
• Screw the filter cover onto the air outlet, using
four screws 12c (2.9 x 12.5).
• Fix the air outlet grid 8 on the recirculation air
outlet using the 2 screws 12d (2,9 x 9,5) pro-
vided.
Fitting the Lighting Unit
• A pre-perforated plug is provided on the top part
of the Hood set up for the lighting unit. This must
be opened using a tool.
• Insert the Lighting unit cable into the opening.
• Rest the Lighting unit 9 on the upper part of the
hood.
• Fix it using the Screws 12r provided.
• Remove grease filters.
• Inside the hood canopy near the Plug that has just
been broken open there is a wiring box for
connection of the lighting unit.
• Open the box and connect the wires to the
terminal inside it, checking that the colours are
combined properly.
• Close the wiring box, replace the grease filters
and close the doors.
