5.2. Setting the Output Current
1. Turn on the power supply
Refer to Section 5.1 step 1 – 4 to give the voltage around 2-5V.
2.
3. Turn the CURRENT COARSE TUNE KNOB [9] and CURRENT FINE TUNE KNOB [10]
anticlockwise reach the minimum current value.

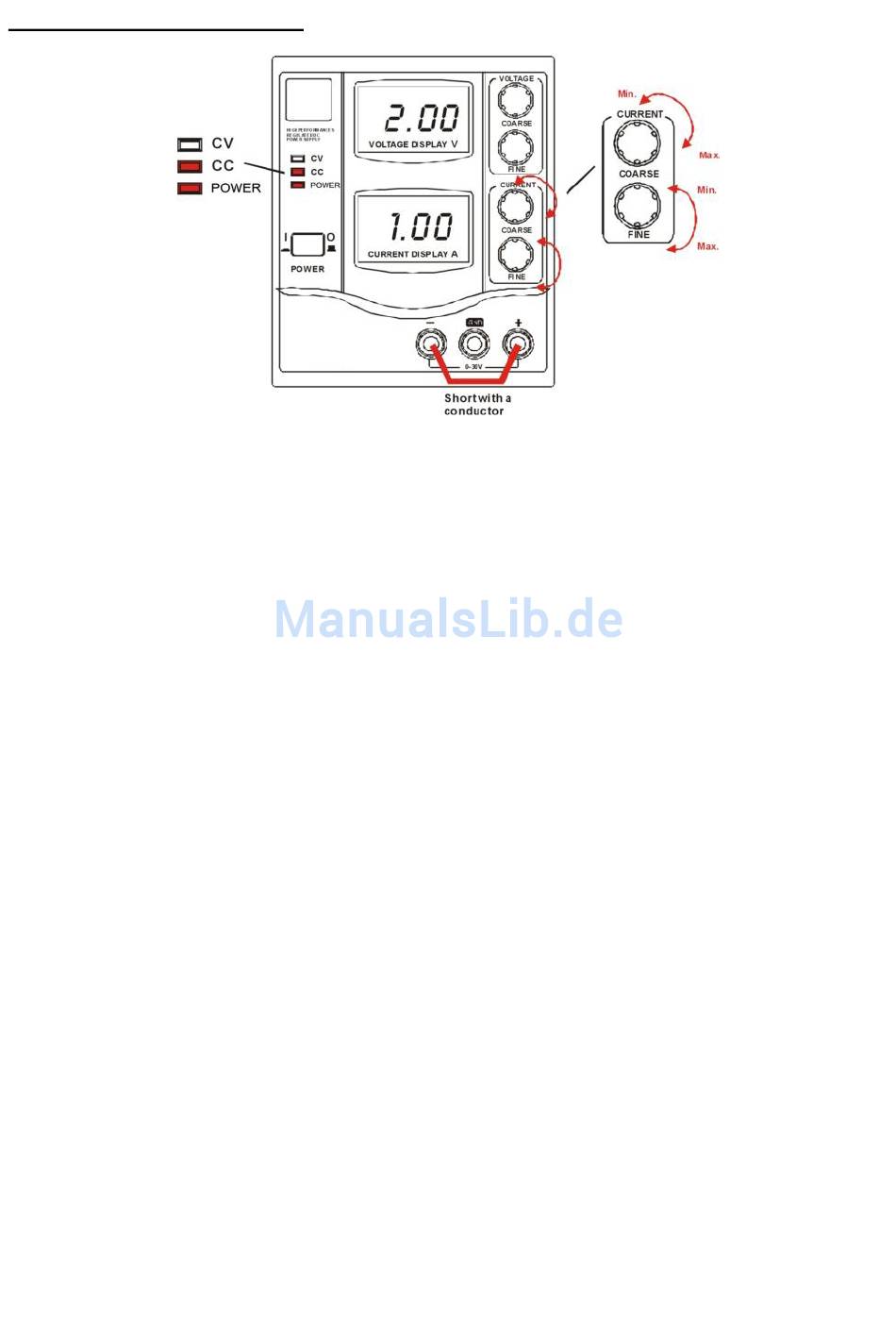

Short the + and the – MAIN TERMINAL [11, 13] with a conductor.
4.
5. Adjust the CURRENT KNOB [9, 10] to give a desired output current.
6. Then the CC INDICATOR [3] will off and the CV INDICATOR [4] will on.
7. Remove the conductor from the MAIN TERMINAL [11, 13].
8. Set to the desired voltage.
9. Connect the circuit to the MAIN TERMINAL [11, 13].
Caution:
* Ensure the current is set to zero before short the MAIN TERMINAL [11, 13]. Otherwise it will
damage the power supply.
* Do not short the MAIN TERMINAL [11, 13] over 1 minute; it will damage the power supply.
