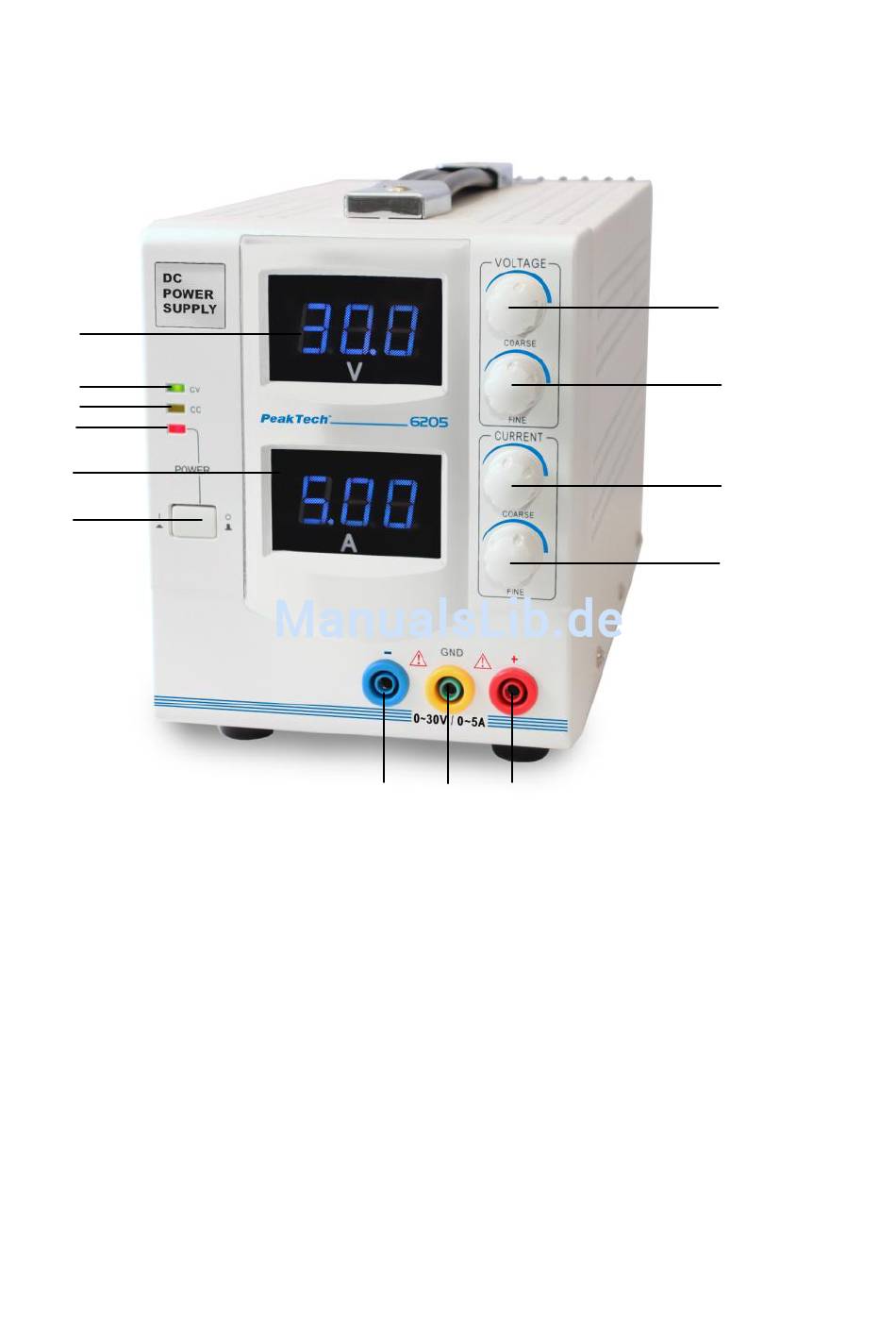

3. Controls and descriptions
5.
4.
3.
2.
6.
1.
1. Power-Switch
2. Power Indicator
3. Constant current mode: LED lights in CC-mode
4. Constant voltage mode: LED lights in CV-mode
5. Voltage-Display
6. Current-Display
7. Voltage coarse adjustment
8. Voltage fine adjustment
9. Current coarse adjustment
10. Current fine adjustment
11. Output socket (+)
12. Output socket (GND)
13. Output socket (-)
13.
12.
11.
