5. Operation

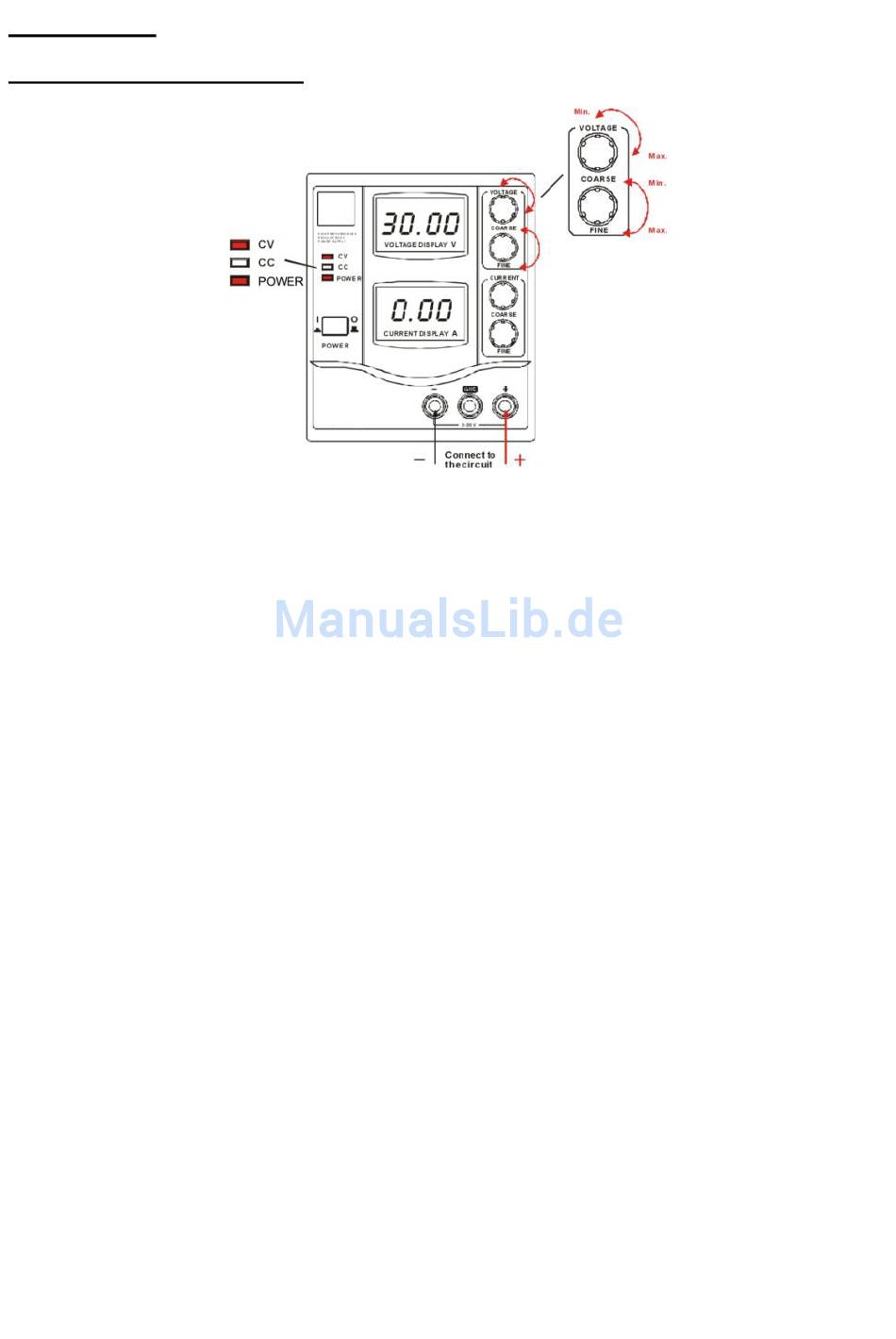

5.1. Setting the Output Voltage
1. Connect the power supply to the power source.
Press the POWER SWITCH [1] to "I" position to turn on the power supply.
2.
3. The CV INDICATOR [4] and POWER INDICATOR [2]* will on and the voltage value will
be displayed on the display.
4. Use the VOLTAGE COARSE TUNE KNOB [7] and VOLTAGE FINE TUNE KNOB [8] to
adjust and fine turn the voltage to give a desired output voltage.
5. Connect the circuit to the MAIN TERMINAL [11, 13].
6. When the CC INDICATOR [3] is on, adjust the CURRENT COARSE TUNE KNOB [9]
and CURRENT FINE TUNE KNOB [10] to give a suitable current.
Caution:
* Make sure the INPUT VOLTAGE SELECTOR [16] set to a correct position. Otherwise, it will
damage the power supply.
* Do not short the MAIN TERMINAL [11, 13] over 1 minute; it will damage the power supply.
