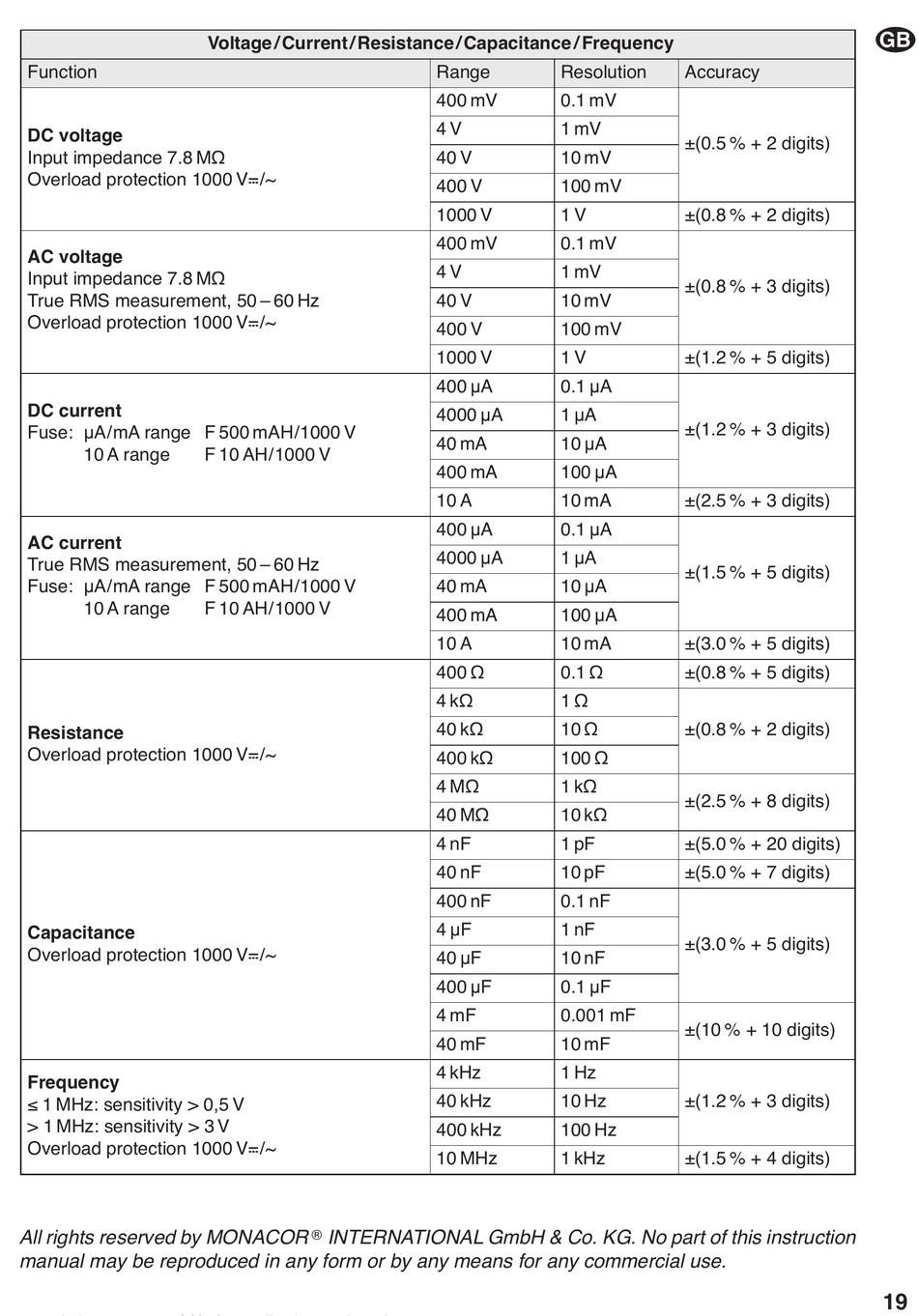

Monacor DMT-4010RMS Bedienungsanleitung Seite 19

Function
DC voltage
Input impedance 7.8 MΩ
Overload protection 1000 V¿/~
AC voltage
Input impedance 7.8 MΩ
True RMS measurement, 50 – 60 Hz
Overload protection 1000 V¿/~
DC current
Fuse: µA / mA range F 500 mAH / 1000 V
10 A range
AC current
True RMS measurement, 50 – 60 Hz
Fuse: µA / mA range F 500 mAH/1000 V
10 A range
Resistance
Overload protection 1000 V¿/~
Capacitance
Overload protection 1000 V¿/~
Frequency
≤ 1 MHz: sensitivity > 0,5 V
> 1 MHz: sensitivity > 3 V
Overload protection 1000 V¿/~
All rights reserved by MONACOR
manual may be reproduced in any form or by any means for any commercial use.
Voltage / Current / Resistance / Capacitance / Frequency
F 10 AH / 1000 V
F 10 AH/1000 V
INTERNATIONAL GmbH & Co. KG. No part of this instruction
®
Range Resolution
400 mV 0.1 mV
4 V 1 mV
40 V 10 mV
400 V 100 mV
1000 V 1 V
400 mV 0.1 mV
4 V 1 mV
40 V 10 mV
400 V 100 mV
1000 V 1 V
400 µA 0.1 µA
4000 µA 1 µA
40 mA 10 µA
400 mA 100 µA
10 A 10 mA
400 µA 0.1 µA
4000 µA 1 µA
40 mA 10 µA
400 mA 100 µA
10 A 10 mA
400 Ω 0.1 Ω
4 kΩ 1 Ω
40 kΩ 10 Ω
400 kΩ 100 Ω
4 MΩ 1 kΩ
40 MΩ 10 kΩ
4 nF 1 pF
40 nF 10 pF
400 nF 0.1 nF
4 µF 1 nF
40 µF 10 nF
400 µF 0.1 µF
4 mF 0.001 mF
40 mF 10 mF
4 kHz 1 Hz
40 kHz 10 Hz
400 kHz 100 Hz
10 MHz 1 kHz
Accuracy
±(0.5 % + 2 digits)
±(0.8 % + 2 digits)
±(0.8 % + 3 digits)
±(1.2 % + 5 digits)
±(1.2 % + 3 digits)
±(2.5 % + 3 digits)
±(1.5 % + 5 digits)
±(3.0 % + 5 digits)
±(0.8 % + 5 digits)
±(0.8 % + 2 digits)
±(2.5 % + 8 digits)
±(5.0 % + 20 digits)
±(5.0 % + 7 digits)
±(3.0 % + 5 digits)
±(10 % + 10 digits)
±(1.2 % + 3 digits)
±(1.5 % + 4 digits)
GB
19
