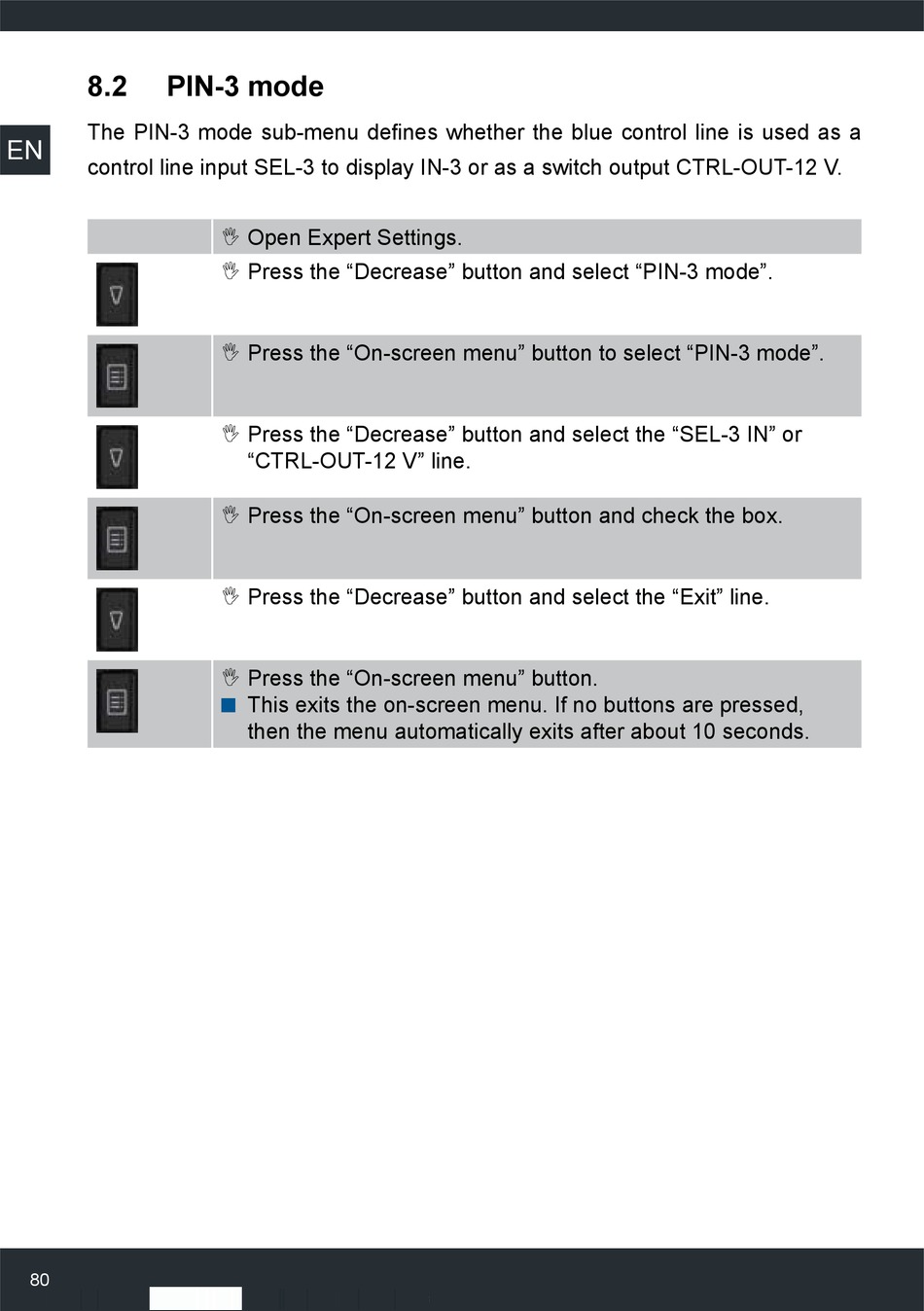

8.2

PIN-3 mode

The PIN-3 mode sub-menu defines whether the blue control line is used as a
EN
control line input SEL-3 to display IN-3 or as a switch output CTRL-OUT-12 V.
80
 Open Expert Settings.
 Press the "Decrease" button and select "PIN-3 mode".
 Press the "On-screen menu" button to select "PIN-3 mode".
 Press the "Decrease" button and select the "SEL-3 IN" or
"CTRL-OUT-12 V" line.
 Press the "On-screen menu" button and check the box.
 Press the "Decrease" button and select the "Exit" line.
 Press the "On-screen menu" button.
This exits the on-screen menu. If no buttons are pressed,
then the menu automatically exits after about 10 seconds.
