7

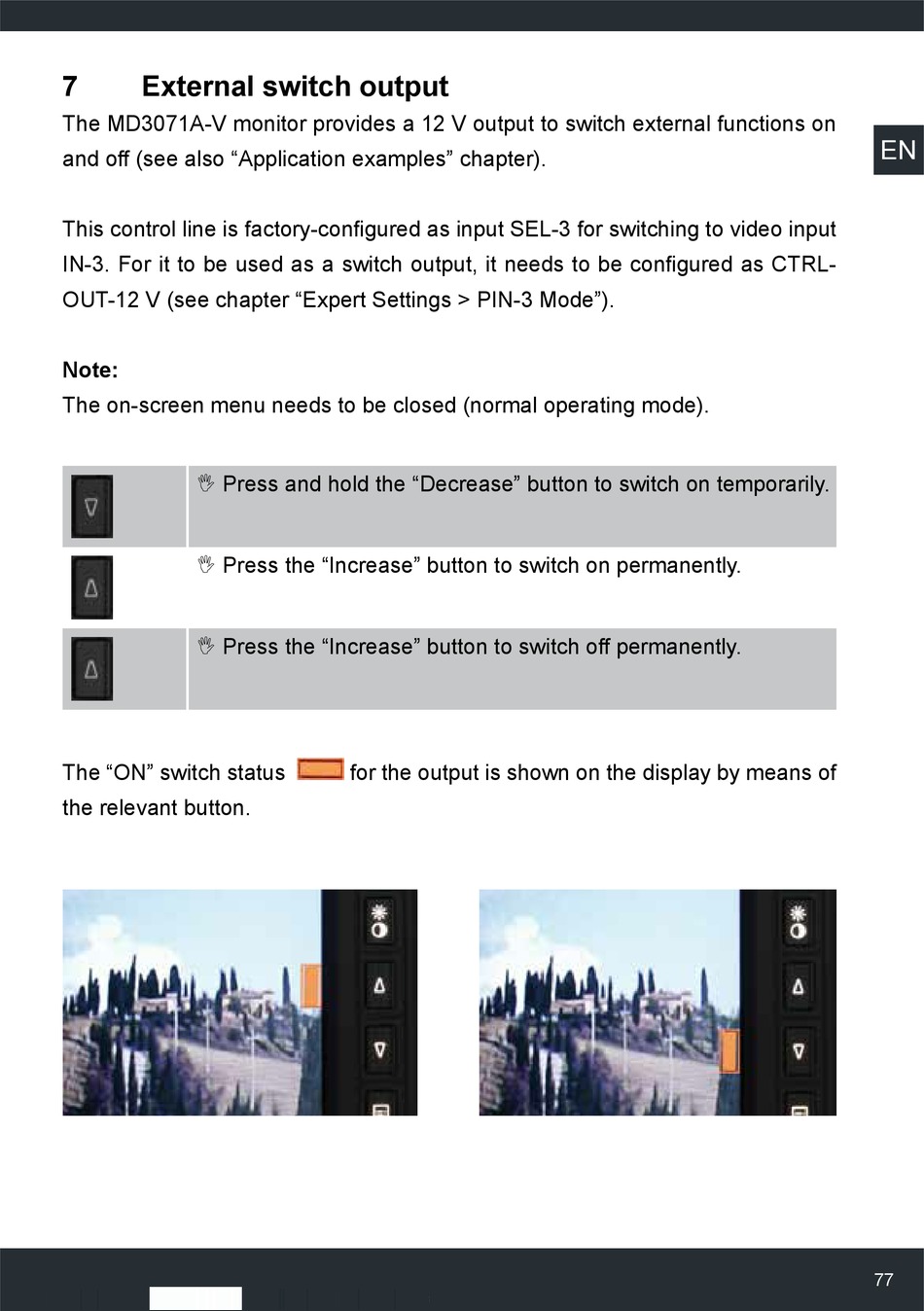

External switch output

The MD3071A-V monitor provides a 12 V output to switch external functions on
and off (see also "Application examples" chapter).
This control line is factory-configured as input SEL-3 for switching to video input
IN-3. For it to be used as a switch output, it needs to be configured as CTRL-
OUT-12 V (see chapter "Expert Settings > PIN-3 Mode").
Note:
The on-screen menu needs to be closed (normal operating mode).
 Press and hold the "Decrease" button to switch on temporarily.
 Press the "Increase" button to switch on permanently.
 Press the "Increase" button to switch off permanently.
The "ON" switch status
the relevant button.
for the output is shown on the display by means of
EN
77
