EN
4.2

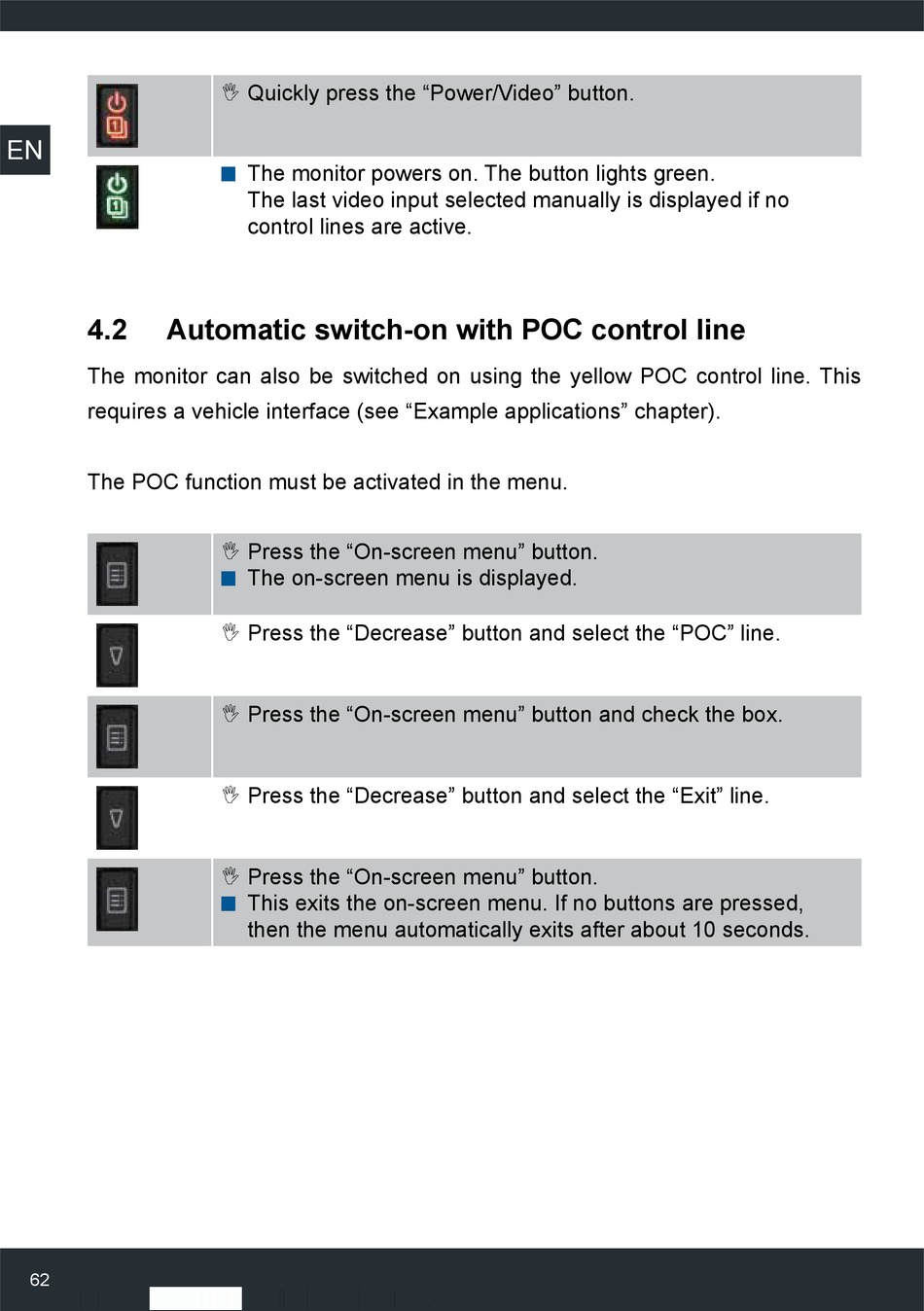

Automatic switch-on with POC control line

The monitor can also be switched on using the yellow POC control line. This
requires a vehicle interface (see "Example applications" chapter).
The POC function must be activated in the menu.
62
 Quickly press the "Power/Video" button.
The monitor powers on. The button lights green.
The last video input selected manually is displayed if no
control lines are active.
 Press the "On-screen menu" button.
The on-screen menu is displayed.
 Press the "Decrease" button and select the "POC" line.
 Press the "On-screen menu" button and check the box.
 Press the "Decrease" button and select the "Exit" line.
 Press the "On-screen menu" button.
This exits the on-screen menu. If no buttons are pressed,
then the menu automatically exits after about 10 seconds.
