STUDIO RONDO / STUDIO CLASSIC / ARCOS STUDIO
—

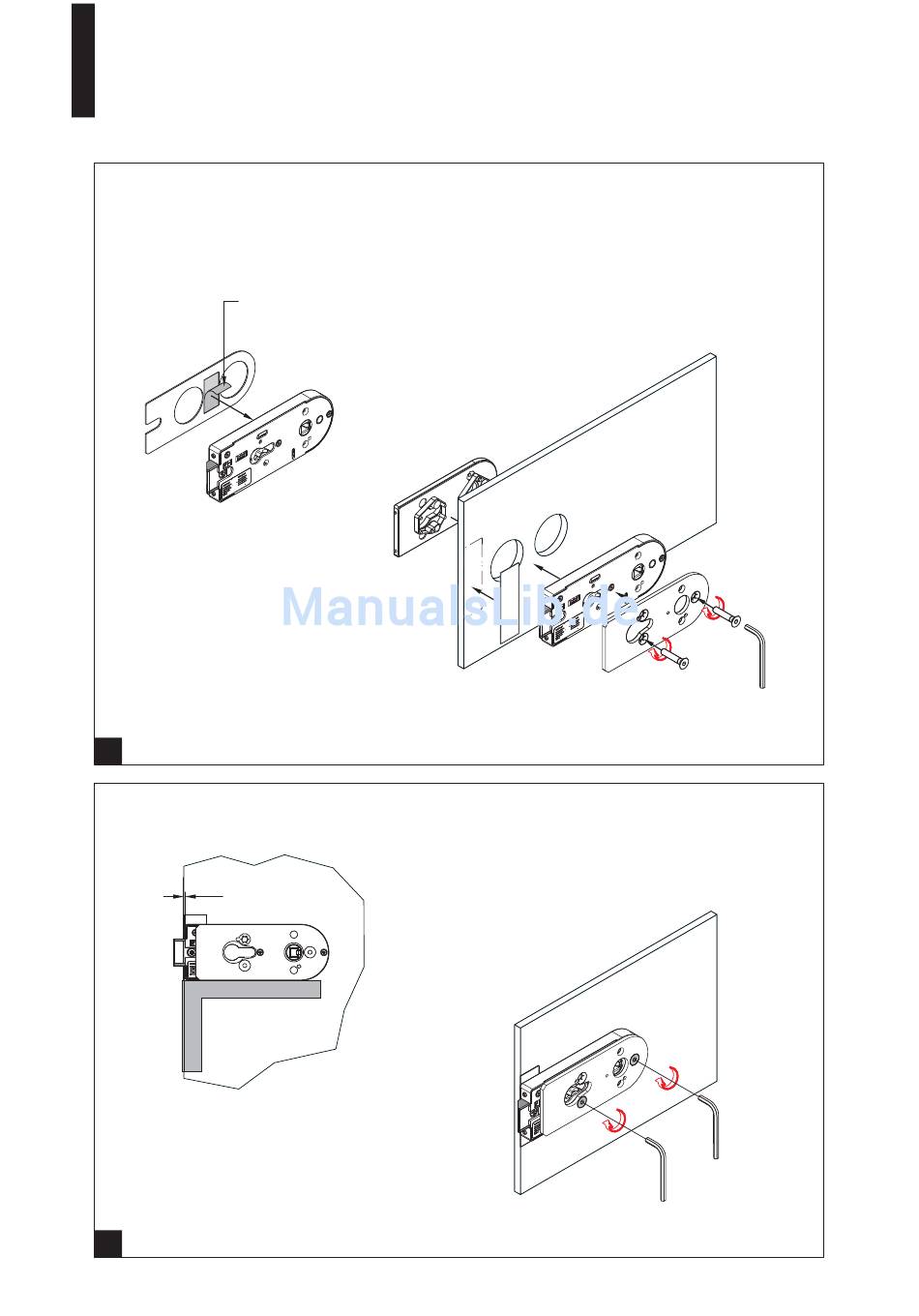

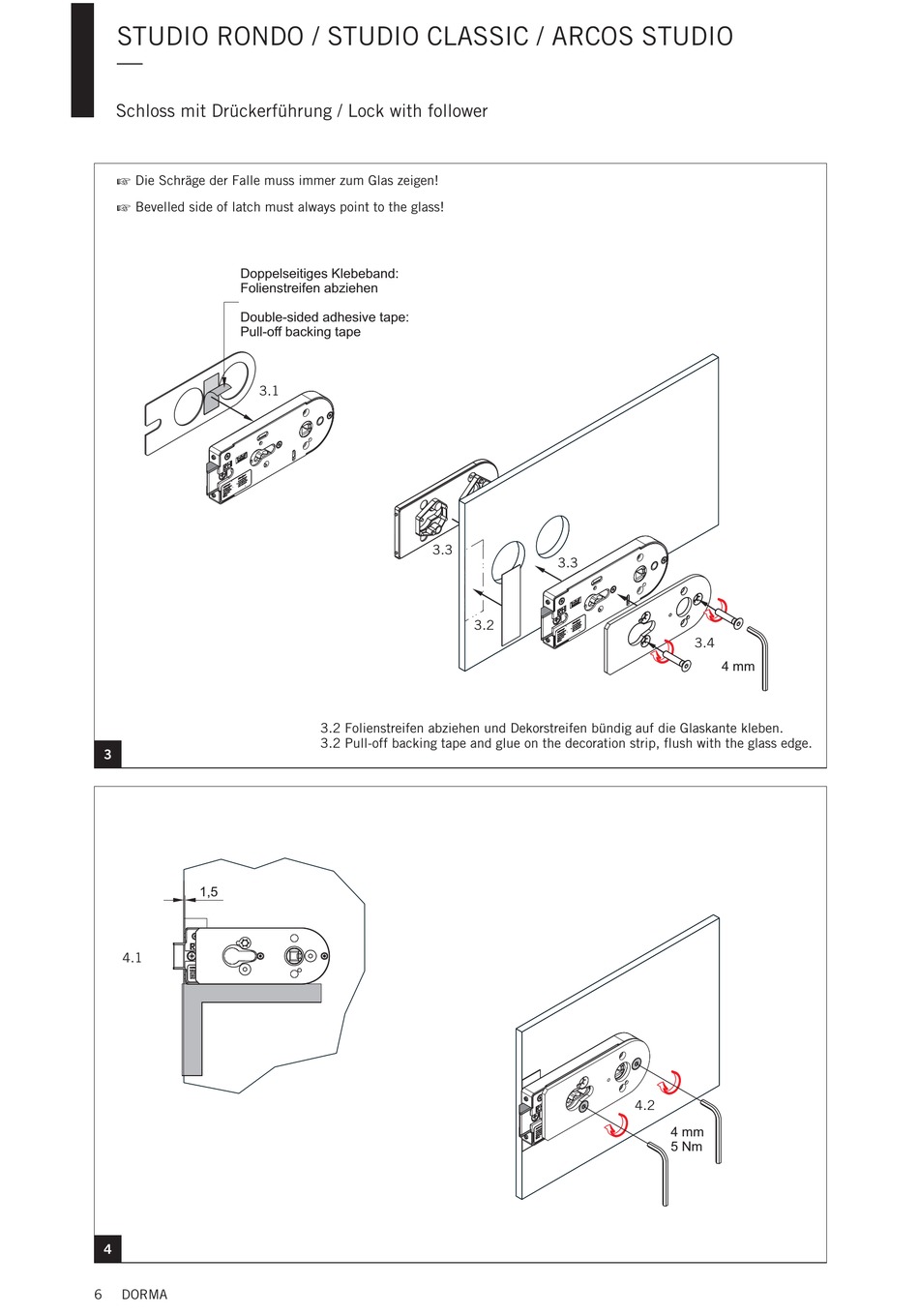

Schloss mit Drückerführung / Lock with follower
+
Die Schräge der Falle muss immer zum Glas zeigen!
+
Bevelled side of latch must always point to the glass!
Doppelseitiges Klebeband:
Folienstreifen abziehen
Double-sided adhesive tape:
Pull-off backing tape
3.1
3
1,5
4.1
4
6
DORMA
3.3
3.2
3.2 Folienstreifen abziehen und Dekorstreifen bündig auf die Glaskante kleben.
3.2 Pull-off backing tape and glue on the decoration strip, flush with the glass edge.
3.3
3.4
4 mm
4.2
4 mm
5 Nm
