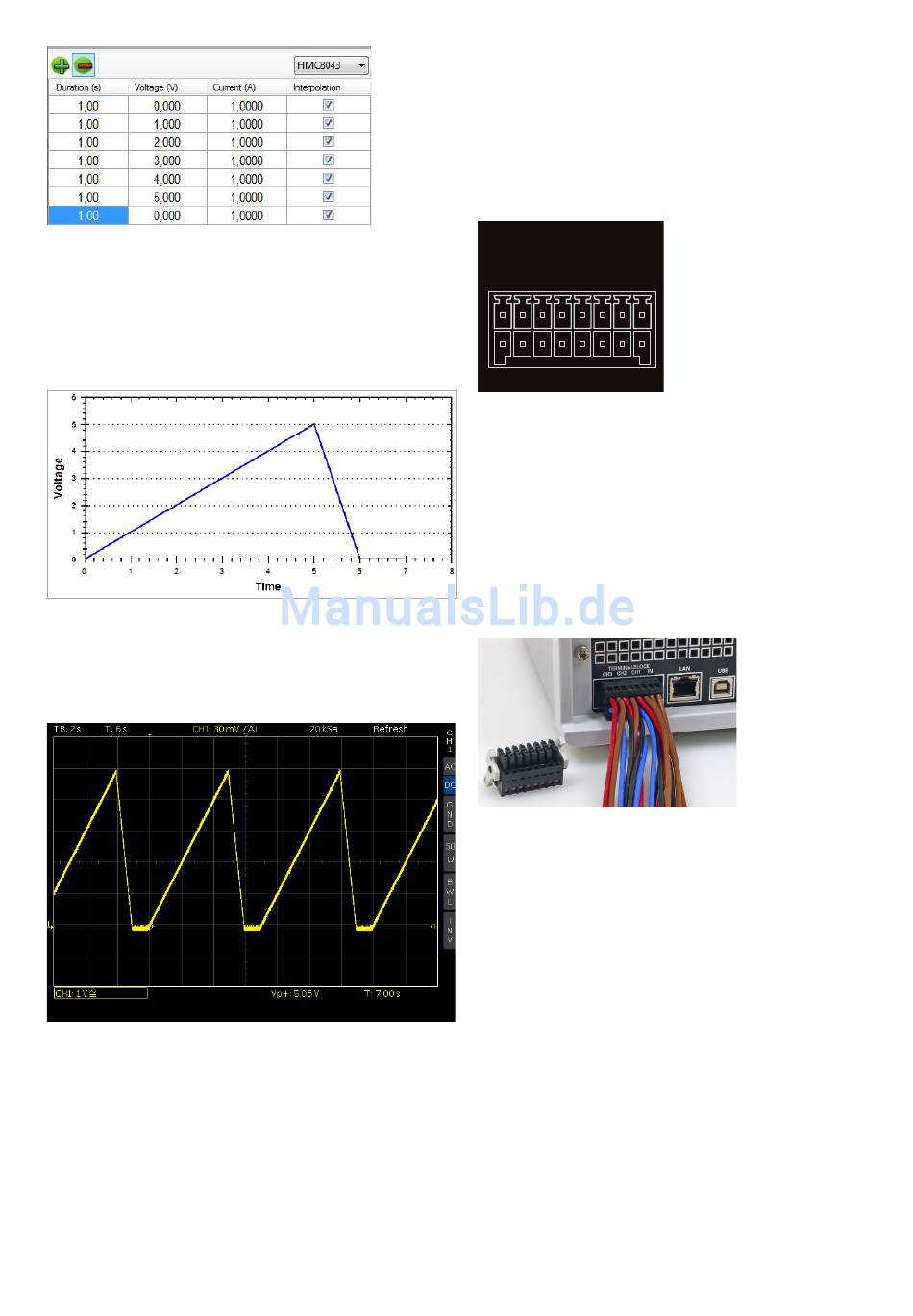

Fig. 5.8: Arbitrary-editor example (excerpt) HMExplorer software
Once all arbitrary points have been created, the created
signal can be transferred to the instrument via interface by
using the menu item TRANSFER. The menu TRANSFER
opens and allows you to select the respective HMC chan-
nel and the repetitions.
USB

Fig. 5.9: Arbitrary example HMExplorer software

Additionally, you can activate the output to issue the signal
directly at the output and to view it on an oscilloscope, for
instance (see fig. 5.10).

Fig. 5.10: Output arbitrary example on an oscilloscope

For more information about the arbitrary software module,
please see the internal help of the HMExplorer software
which can be found in the main module overview under
HELP (F1).

SERIENNUMMER

6 Advanced Ope-
rating Functions
HMC 8043 POWER SUPPLY
100-240 V ±10% / 50-60 Hz
200 WATT (max.)
6 . 1

Terminal Connector

FUSE: T3,15L250V
TERMINALBLOCK
CH3 CH2 CH1 IN
P+ S+ P+ S+ P+ S+ U+ I+
P- S- P- S- P- S- U- I-
The terminal connector on the back panel of the instru-
ment allows you to execute the voltages / currents of all
channels (including SENSE).
The 16-pole terminal block includes the following connec-
tors for each channel:
❙ P+ (corresponds to + socket on the front panel)
❙ P- (corresponds to - socket on the front panel)
❙ S+ and S- (SENSE connectors)
❙ U+, U-, I+, I- (voltage/current interface) + Trigger
To connect lines, you have the option to purchase and use
the plug-in terminal block connector HZC40. This allows
for the easy integration into 19`` rack systems (please refer
to fig. 6.2). The terminal block connector will be supplied
without cable.
The SENSE lines (only available on the back panel for the
R&S®HMC8042 and R&S®HMC8043) allow you to com-
pensate voltage drops on the supply lines to the load so
that the actual selected voltage is applied to the load. The
instrument automatically detects when the SENSE lines
are connected and it regulates the output voltage directly
at the load. If the SENSE lines are connected via S+ and
S-, the display shows SENSE. The maximum compensa-
tion value of the lead resistances is 1V.
6 . 1 . 1 19" Rack Mount Kit
To install a 19" rack, you can use the rack mount set
HZC95. When one or more R&S®HMC804x instruments
are installed in a 19" rack, it is important to ensure that

Advanced Operating Functions

F-5013569 MC 253564
Engineered in Germany
Fig. 6.1: Terminal block with
Manufactured in Czech Republic
connector assignment
Fig. 6.2: Plug-
in terminal block
connector HZC40
(supplied without cable)
