34
6. Insert four ¹₄-inch x ³₄-inch buttonhead screws through
7. Lower the rear cover over the mounting bracket so that
Assembling and Maintaining the RBK 615 Recumbent Exercise Bike
the screw holes in the tabs on the mounting bracket and
into the screw anchors on the console. Tighten the screws
completely using a ⁵₃₂-inch hex wrench.
the upright support extends through the gap in the cover.

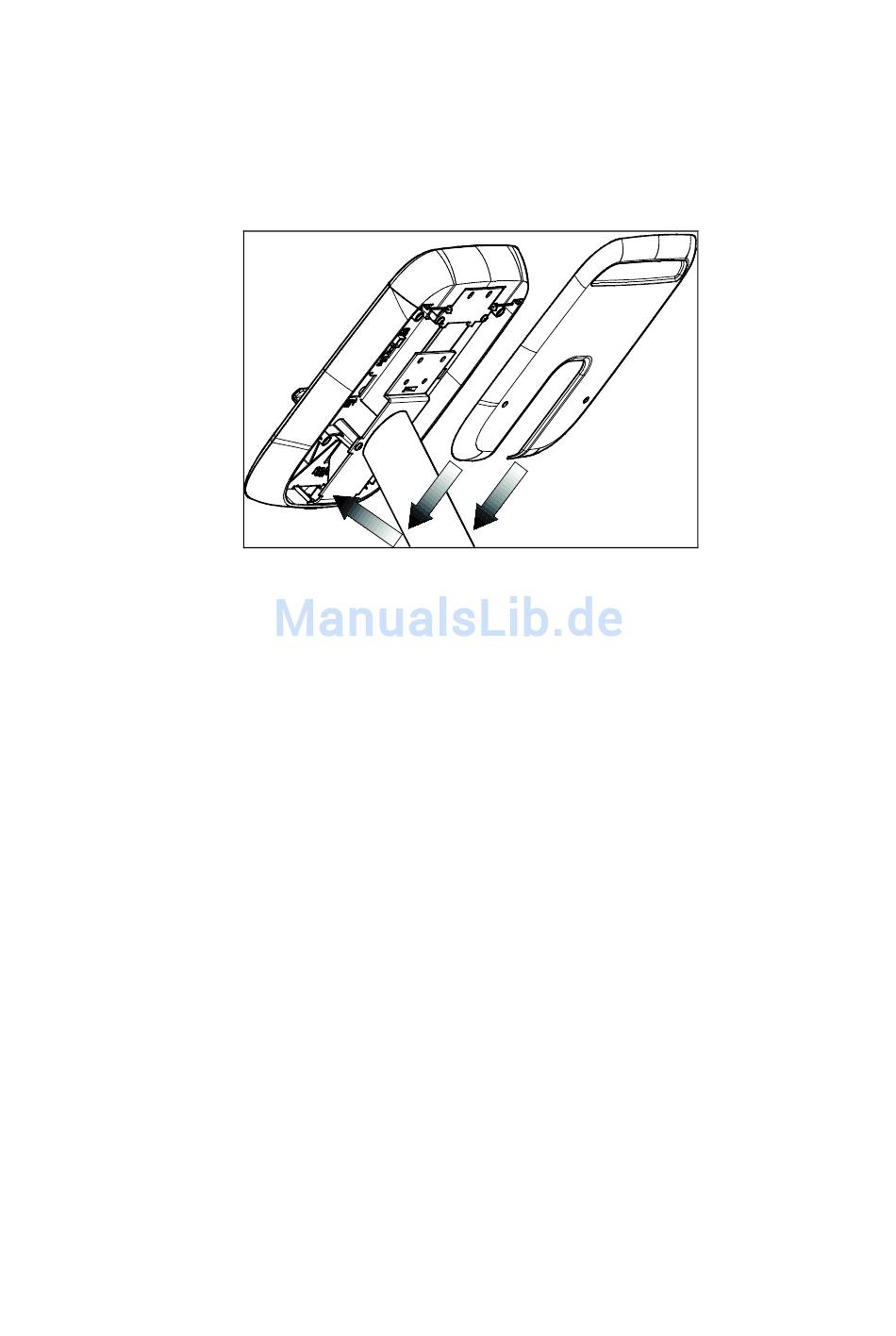

Figure 18: Rear cover position
