RECEIVER

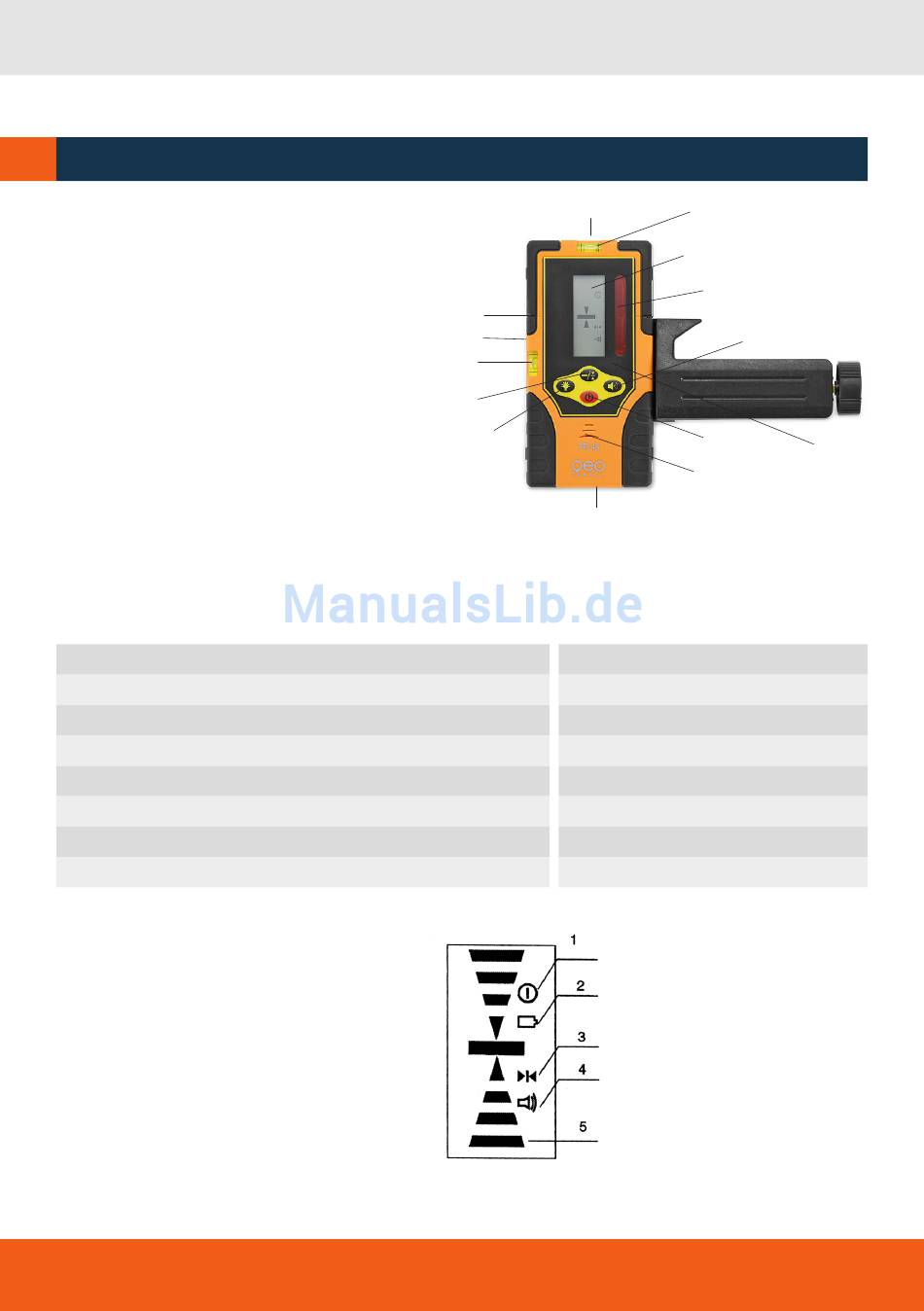

FEATURES
1. Vial (2)
2. Display
3. Reference indicator
4. Receiving window
5. ON / OFF switch
6. Loudspeaker
7 . Battery compartment (back side)
8. Sound on / off
9. Accuracy coarse / normal / fine
10. Light on / off
11. Magnets (2)
12. 1/4"-thread for clamp (back side)
SUPPLIED WITH
Receiver FR 45, battery, clamp, user manual
Technical Data
Indication
Accuracy coarse
Accuracy normal
Accuracy fine
Tones
Operating time
Power supply
Wave length
SYMBOLS
1. Power ON / OFF
2. Battery status indicator
3. Detection indicator
4. Sound ON / OFF
5. Detected position indicator
14
11
3
11
1
9
10
7
Front display
± 10 mm
± 4 mm
± 2 mm
3
400h
1 x 9V
635 nm
1
2
4
8
5
12
6
