Affinity 800

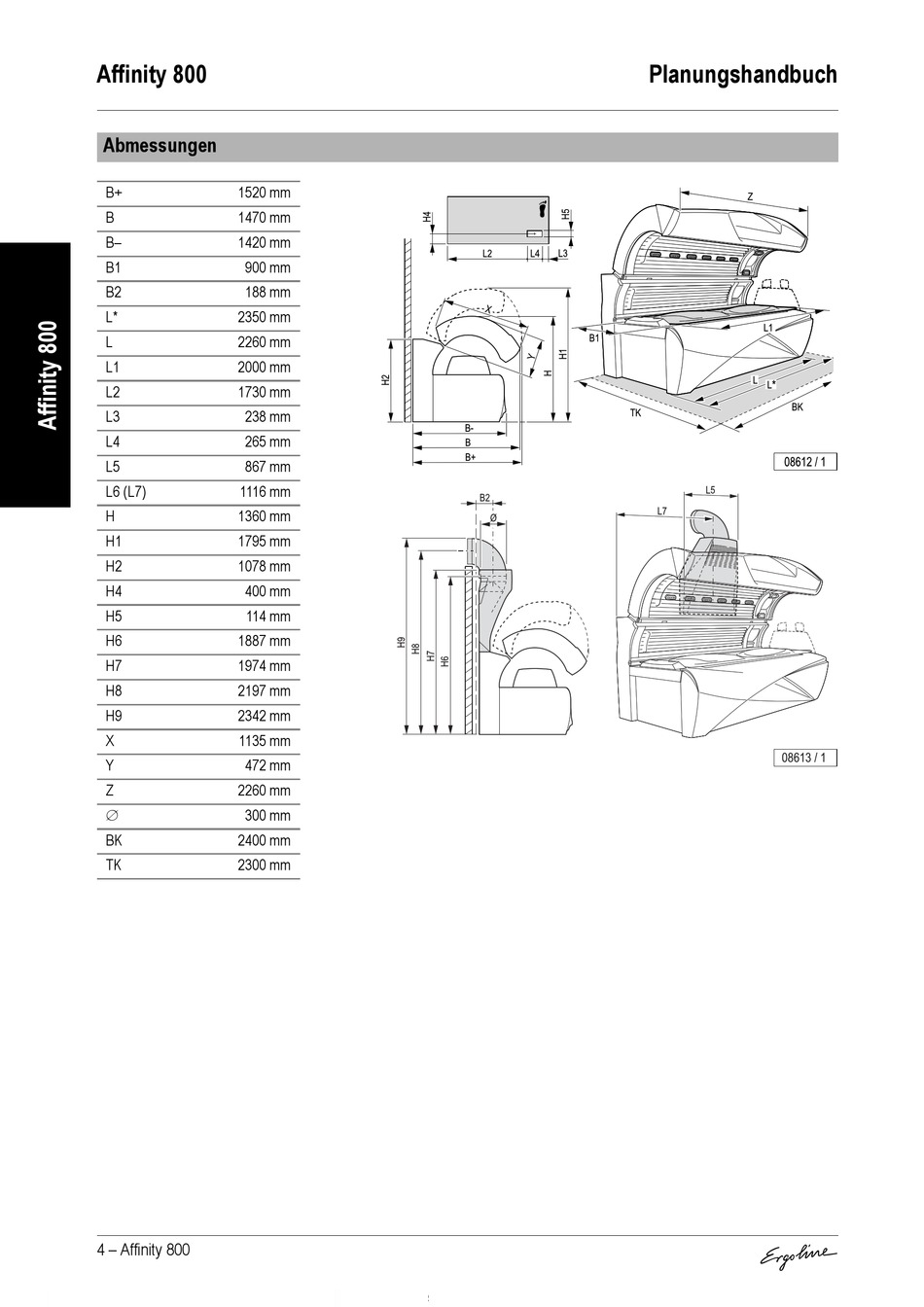

Abmessungen

B+ 1520 mm
B 1470 mm
B– 1420 mm
B1 900 mm
B2 188 mm
L* 2350 mm
L 2260 mm
L1 2000 mm
L2 1730 mm
L3 238 mm
L4 265 mm
L5 867 mm
L6 (L7) 1116 mm
H 1360 mm
H1 1795 mm
H2 1078 mm
H4 400 mm
H5 114 mm
H6 1887 mm
H7 1974 mm
H8 2197 mm
H9 2342 mm
X 1135 mm
Y 472 mm
Z 2260 mm

300 mm
BK 2400 mm
TK 2300 mm
4 – Affinity 800
Planungshandbuch
08613 / 1
