Fig. 1 a
594
X

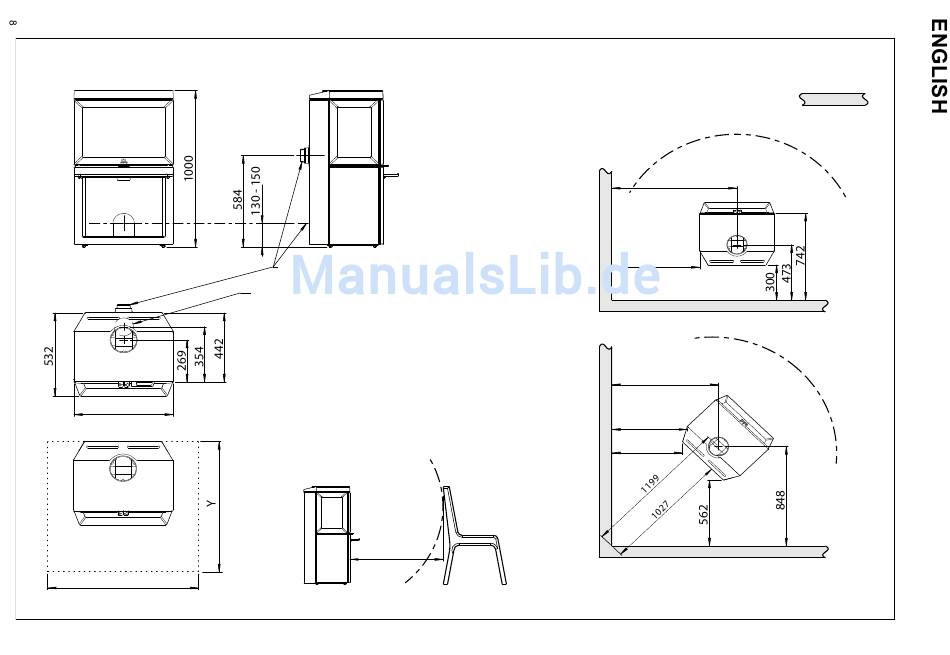

Min. measurements floor plate.
X,Y = according to national standards and regulations.
Jøtul F 520
Hole in wall for external air
ø80 / Ø100 mm
Hole in floor for external air
ø80 / Ø100 mm
Min. distance to furniture /
combustible material:
900
Min. distance to combustible wall
997
700
848
600
562
Combustible wall
900187-P00
