Trotec TTK 120 E Bedienunganleitung Seite 6

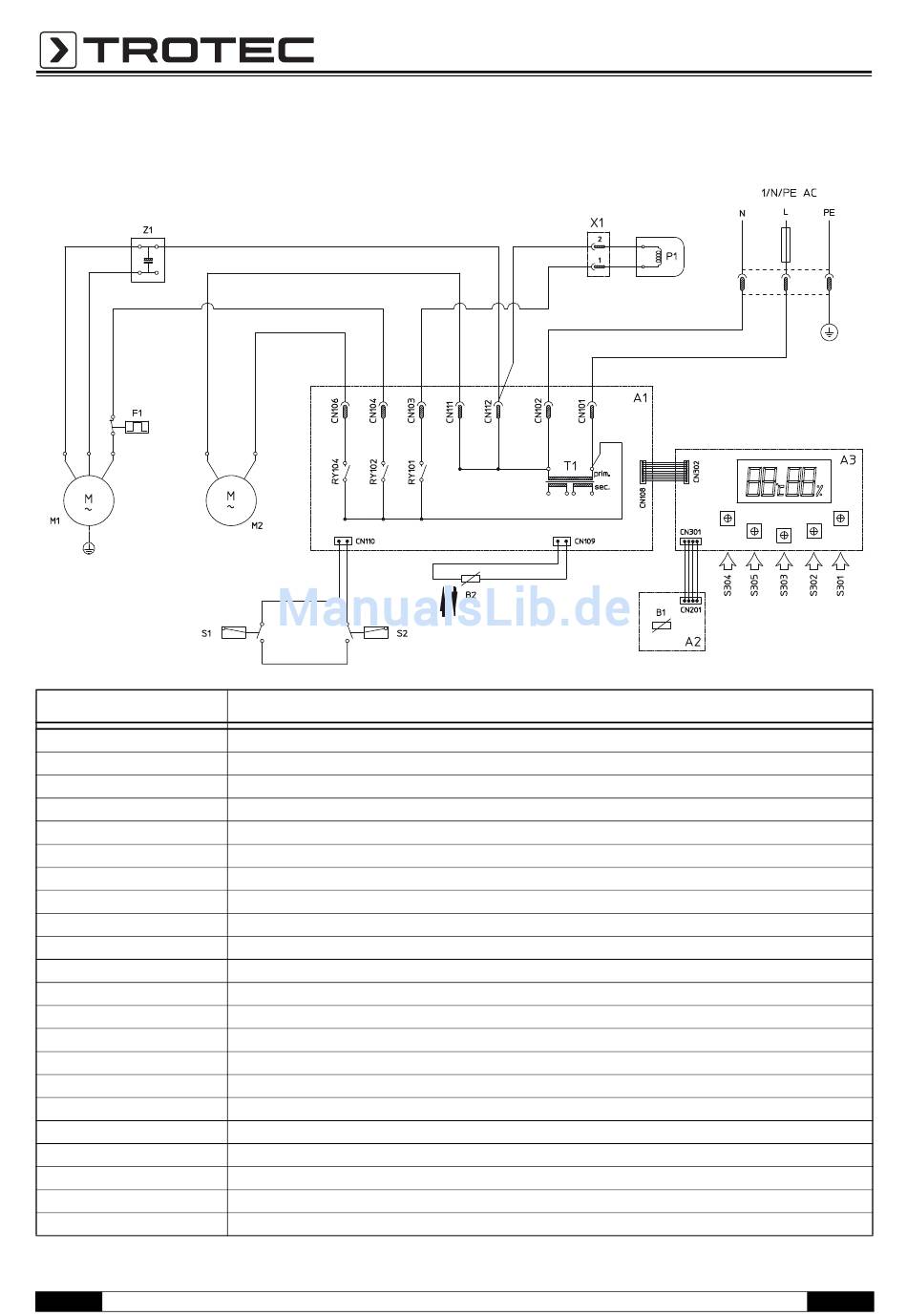

Schaltplan – TTK 122 E
Kennzeichnung
A1
A2
A3
B1
B2
F1
P1
RY101
RY102
RY104
M1
M2
S1
S2
S301
S302
S303
S304
S305
T1
X1
Z1
5
Bedeutung
electronic card (power)
humidity/temperature sensor card
electronic card (control)
humidity/temperature sensor
evaporator sensor
compressor thermal cutout
bypass valve coil
bypass valve coil relay
compressor relay
fan relay
motor-driven compressor
fan
tank full microswitch
tray presence microswitch
signal key for the humidity/room temperature detected
desired humidity decrease key
desired humidity increase key
switch-on/stand-by key
operating mode selection key
transformer
2-pole connector
compressor capacitor
Bedienungsanleitung – Luftentfeuchter TTK 120/122 E
DE
