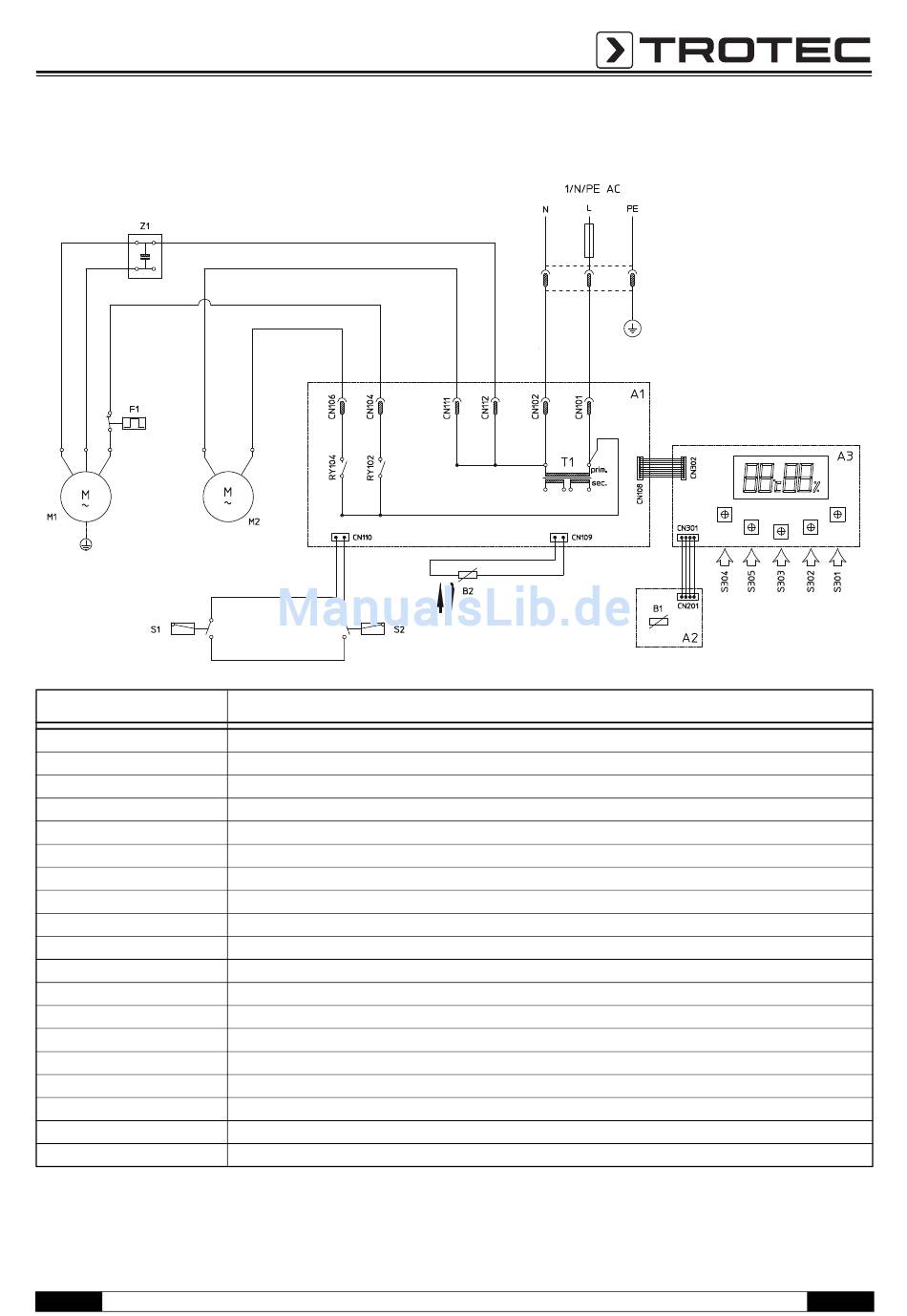

Schaltplan – TTK 120 E
Kennzeichnung
A1
A2
A3
B1
B2
F1
RY102
RY104
M1
M2
S1
S2
S301
S302
S303
S304
S305
T1
Z1
DE
Bedeutung
electronic card (power)
humidity/temperature sensor card
electronic card (control)
humidity/temperature sensor
evaporator sensor
compressor thermal cutout
compressor relay
fan relay
motor-driven compressor
fan
tank full microswitch
tray presence microswitch
signal key for the humidity/room temperature detected
desired humidity decrease key
desired humidity increase key
switch-on/stand-by key
operating mode selection key
transformer
compressor capacitor
