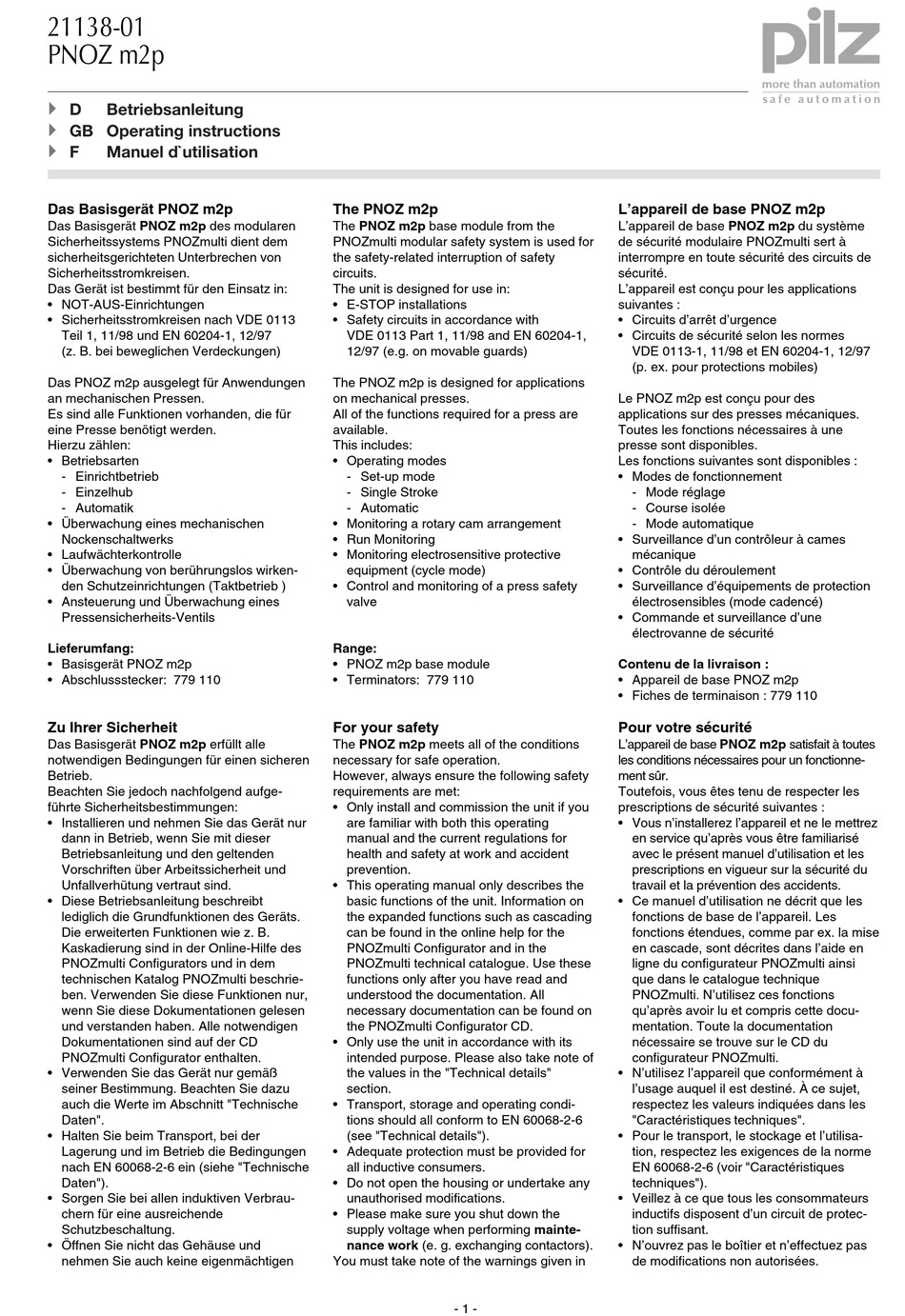

21138-01
PNOZ m2p
4
D
Betriebsanleitung
4
GB Operating instructions
4
F
Manuel d`utilisation
Das Basisgerät PNOZ m2p
Das Basisgerät PNOZ m2p des modularen
Sicherheitssystems PNOZmulti dient dem
sicherheitsgerichteten Unterbrechen von
Sicherheitsstromkreisen.
Das Gerät ist bestimmt für den Einsatz in:
• NOT-AUS-Einrichtungen
• Sicherheitsstromkreisen nach VDE 0113
Teil 1, 11/98 und EN 60204-1, 12/97
(z. B. bei beweglichen Verdeckungen)
Das PNOZ m2p ausgelegt für Anwendungen
an mechanischen Pressen.
Es sind alle Funktionen vorhanden, die für
eine Presse benötigt werden.
Hierzu zählen:
• Betriebsarten
- Einrichtbetrieb
- Einzelhub
- Automatik
• Überwachung eines mechanischen
Nockenschaltwerks
• Laufwächterkontrolle
• Überwachung von berührungslos wirken-
den Schutzeinrichtungen (Taktbetrieb )
• Ansteuerung und Überwachung eines
Pressensicherheits-Ventils
Lieferumfang:
• Basisgerät PNOZ m2p
• Abschlussstecker: 779 110
Zu Ihrer Sicherheit
Das Basisgerät PNOZ m2p erfüllt alle
notwendigen Bedingungen für einen sicheren
Betrieb.
Beachten Sie jedoch nachfolgend aufge-
führte Sicherheitsbestimmungen:
• Installieren und nehmen Sie das Gerät nur
dann in Betrieb, wenn Sie mit dieser
Betriebsanleitung und den geltenden
Vorschriften über Arbeitssicherheit und
Unfallverhütung vertraut sind.
• Diese Betriebsanleitung beschreibt
lediglich die Grundfunktionen des Geräts.
Die erweiterten Funktionen wie z. B.
Kaskadierung sind in der Online-Hilfe des
PNOZmulti Configurators und in dem
technischen Katalog PNOZmulti beschrie-
ben. Verwenden Sie diese Funktionen nur,
wenn Sie diese Dokumentationen gelesen
und verstanden haben. Alle notwendigen
Dokumentationen sind auf der CD
PNOZmulti Configurator enthalten.
• Verwenden Sie das Gerät nur gemäß
seiner Bestimmung. Beachten Sie dazu
auch die Werte im Abschnitt "Technische
Daten".
• Halten Sie beim Transport, bei der
Lagerung und im Betrieb die Bedingungen
nach EN 60068-2-6 ein (siehe "Technische
Daten").
• Sorgen Sie bei allen induktiven Verbrau-
chern für eine ausreichende
Schutzbeschaltung.
• Öffnen Sie nicht das Gehäuse und
nehmen Sie auch keine eigenmächtigen
The PNOZ m2p
The PNOZ m2p base module from the
PNOZmulti modular safety system is used for
the safety-related interruption of safety
circuits.
The unit is designed for use in:
• E-STOP installations
• Safety circuits in accordance with
VDE 0113 Part 1, 11/98 and EN 60204-1,
12/97 (e.g. on movable guards)
The PNOZ m2p is designed for applications
on mechanical presses.
All of the functions required for a press are
available.
This includes:
• Operating modes
- Set-up mode
- Single Stroke
- Automatic
• Monitoring a rotary cam arrangement
• Run Monitoring
• Monitoring electrosensitive protective
equipment (cycle mode)
• Control and monitoring of a press safety
valve
Range:
• PNOZ m2p base module
• Terminators: 779 110
For your safety
The PNOZ m2p meets all of the conditions
necessary for safe operation.
However, always ensure the following safety
requirements are met:
• Only install and commission the unit if you
are familiar with both this operating
manual and the current regulations for
health and safety at work and accident
prevention.
• This operating manual only describes the
basic functions of the unit. Information on
the expanded functions such as cascading
can be found in the online help for the
PNOZmulti Configurator and in the
PNOZmulti technical catalogue. Use these
functions only after you have read and
understood the documentation. All
necessary documentation can be found on
the PNOZmulti Configurator CD.
• Only use the unit in accordance with its
intended purpose. Please also take note of
the values in the "Technical details"
section.
• Transport, storage and operating condi-
tions should all conform to EN 60068-2-6
(see "Technical details").
• Adequate protection must be provided for
all inductive consumers.
• Do not open the housing or undertake any
unauthorised modifications.
• Please make sure you shut down the
supply voltage when performing mainte-
nance work (e. g. exchanging contactors).
You must take note of the warnings given in
- 1 -
L'appareil de base PNOZ m2p
L'appareil de base PNOZ m2p du système
de sécurité modulaire PNOZmulti sert à
interrompre en toute sécurité des circuits de
sécurité.
L'appareil est conçu pour les applications
suivantes :
• Circuits d'arrêt d'urgence
• Circuits de sécurité selon les normes
VDE 0113-1, 11/98 et EN 60204-1, 12/97
(p. ex. pour protections mobiles)
Le PNOZ m2p est conçu pour des
applications sur des presses mécaniques.
Toutes les fonctions nécessaires à une
presse sont disponibles.
Les fonctions suivantes sont disponibles :
• Modes de fonctionnement
- Mode réglage
- Course isolée
- Mode automatique
• Surveillance d'un contrôleur à cames
mécanique
• Contrôle du déroulement
• Surveillance d'équipements de protection
électrosensibles (mode cadencé)
• Commande et surveillance d'une
électrovanne de sécurité
Contenu de la livraison :
• Appareil de base PNOZ m2p
• Fiches de terminaison : 779 110
Pour votre sécurité
L'appareil de base PNOZ m2p satisfait à toutes
les conditions nécessaires pour un fonctionne-
ment sûr.
Toutefois, vous êtes tenu de respecter les
prescriptions de sécurité suivantes :
• Vous n'installerez l'appareil et ne le mettrez
en service qu'après vous être familiarisé
avec le présent manuel d'utilisation et les
prescriptions en vigueur sur la sécurité du
travail et la prévention des accidents.
• Ce manuel d'utilisation ne décrit que les
fonctions de base de l'appareil. Les
fonctions étendues, comme par ex. la mise
en cascade, sont décrites dans l'aide en
ligne du configurateur PNOZmulti ainsi
que dans le catalogue technique
PNOZmulti. N'utilisez ces fonctions
qu'après avoir lu et compris cette docu-
mentation. Toute la documentation
nécessaire se trouve sur le CD du
configurateur PNOZmulti.
• N'utilisez l'appareil que conformément à
l'usage auquel il est destiné. À ce sujet,
respectez les valeurs indiquées dans les
"Caractéristiques techniques".
• Pour le transport, le stockage et l'utilisa-
tion, respectez les exigences de la norme
EN 60068-2-6 (voir "Caractéristiques
techniques").
• Veillez à ce que tous les consommateurs
inductifs disposent d'un circuit de protec-
tion suffisant.
• N'ouvrez pas le boîtier et n'effectuez pas
de modifications non autorisées.
