5.2

CONNECTING THE BATTERIES

Important!!! Before connecting a battery pack, check one last time that all the set
parameters are correct! The battery may be damaged, explode or catch fire if the settings
are incorrect. To avoid a short-circuit with the banana plugs, always connect the charge
leads to the battery charger first, and only then to the battery. Reverse the sequence when
disconnecting the battery. Always maintain correct polarity!
Connecting the equalizer:
The black wire of the voltage sensor lead from the battery must be connected to the charger
at the arrow marking. The arrow marking indicates the earth terminal (negative). Maintain
correct polarity!

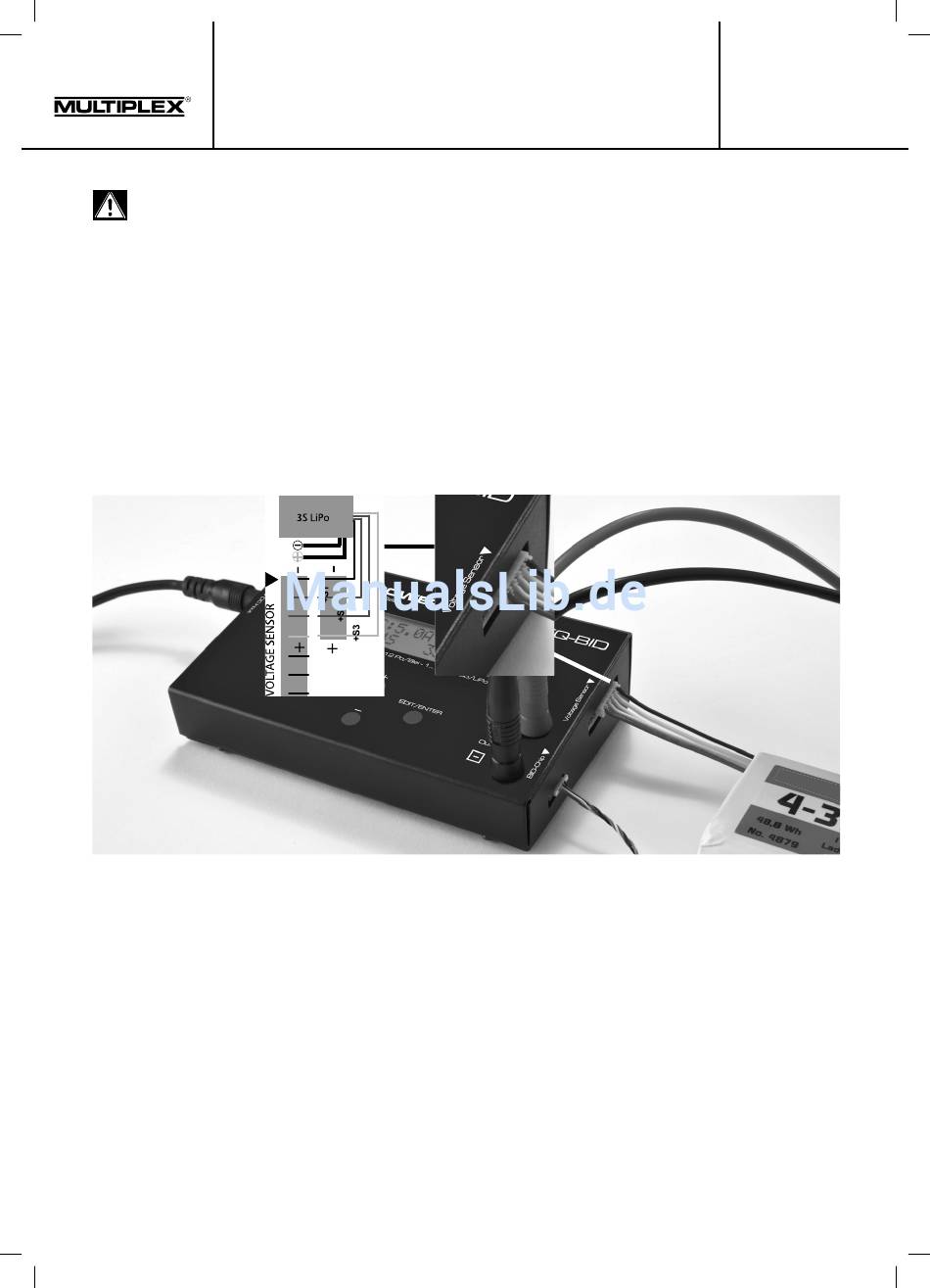

This example is only intended as a general guide; it shows how to connect the voltage
sensor lead to the equalizer.
