PROGRAMMING MODE

If no BID chip or key is connected, the charger operates in manual mode.
Pressing the 'EDIT / ENTER' button from the working display takes you to programming
mode, where you can program one of the four battery memories.
M1 C:1.0A
NM 4S
6.1

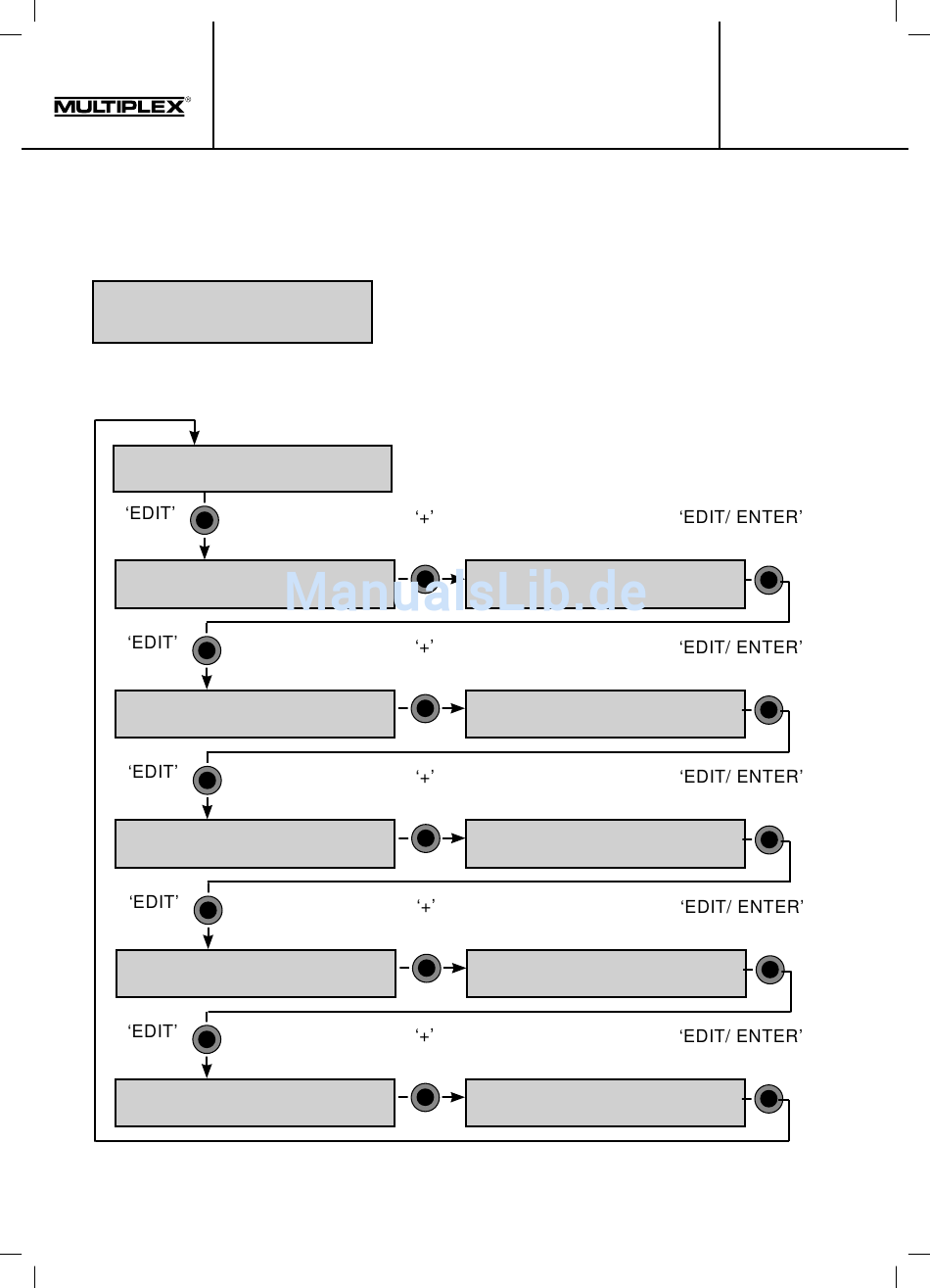

PROGRAMMING MODE MENU STRUCTURE

M1 C:1.0A
NM 4S
button
BAT. TYPE
BAT. CELL
button
BAT. TYPE
BAT. CELL
button
CH. CURR
DC. CURR
button
CH. CURR
DC. CURR
button
BAT.CAP
