5 PLACE THE SUCTION UNIT AND FINISHING
• Place the fat filter (7900.020) into the suction unit (990.984). The fat filter will lie at a slant in the suction unit.
• Place the tilt lid (990.985) onto the suction unit.

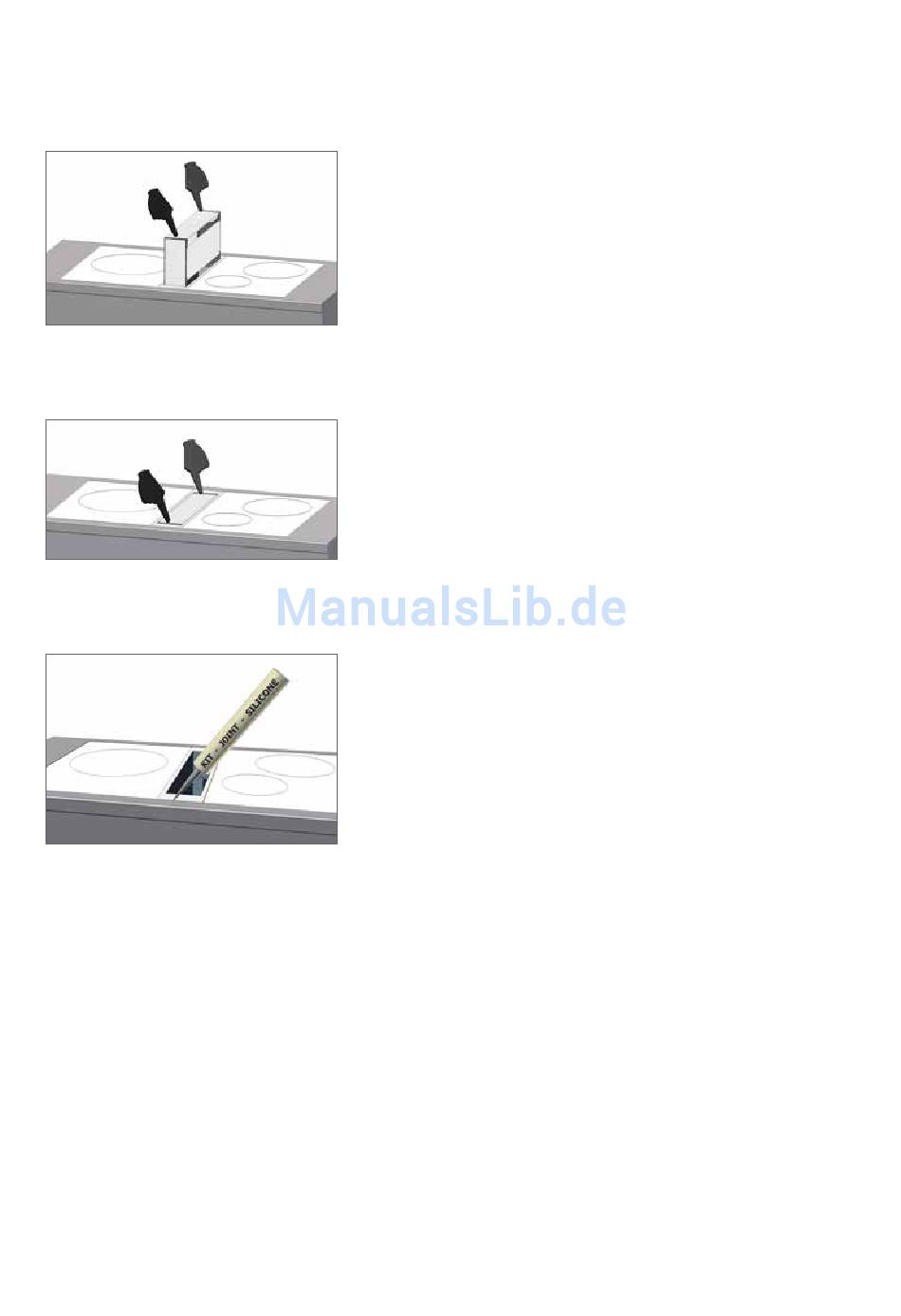

• Take the complete suction unit with the fat filter and press it down the suction opening of UP_SIDE
• The motor of the appliance will start operating i mmediately. Use both hands - one at the front and one at the rear of the
suction unit - to press down and lock the suction unit into place. The motor switches off when the lid on the suction unit
is horizontal.
• Check the functioning of the installed appliances. Use sealant (not supplied) to close the gaps between UP_SIDE, the
work surface and the other appliances. This prevents cooking liquid, condensation, etc. from entering the space between
the work surface and the cabinets.
6 ACCESSORIES
Adapter for flat ducting (item number 7901.052)
The adapter makes it possible to continue with a flat duct directly from the cooking hood. In case of a cabinet with a limited
depth, this adapter is the ultimate solution to allow installation with flat ducts. The adapter is mounted unto the outlet of UP_
SIDE to which a flat duct can be connected directly. More information for connecting the adapter can be found in the mounting
instructions for the adapter.
Recirculation
UP_SIDE can be connected to an exhaust box with a monoblock recirculation filter. The choice can be made between 3
exhaust boxes, being:
- 7900.400 – 140 mm height for building in into the plinth
- 7910.400 – 98 mm height for building in into the plinth
- 830.400 SS/ 831.400 WHITE – 270 x 500 x 295 mm
More information for connecting the exhaust box can be found in the mounting instructions for the exhaust box concerned.
