Milled groove:
X = 526 mm
Y = the total width of all appliances + space for the silicon (3 mm between the table top and the appliance, 2 mm between 2
appliances)
Z = the depth of the milled groove = the thickness of the glass of the cooking plate + 1,5 mm (tolerance -0/+0,5 mm)
Example with 2 x UP_SIDE and 3 domino elements:
Domino 2 zone (380 mm) + UP_SIDE (110 mm) + Domino 2-zone (380 mm) + UP_SIDE (110 mm) + Domino wok (380 mm)
Flush mounting:
Opening
X = 502 mm
Y = (380 mm + 2 mm + 110 mm + 2 mm + 380 mm + 2 mm + 110 mm + 2 mm + 380 mm) - 10 mm
Milled groove
X = 526 mm
Y = 3 mm + 380 mm + 2 mm + 110 mm + 2 mm + 380 mm + 2 mm + 110 mm + 2 mm + 380 mm + 3 mm

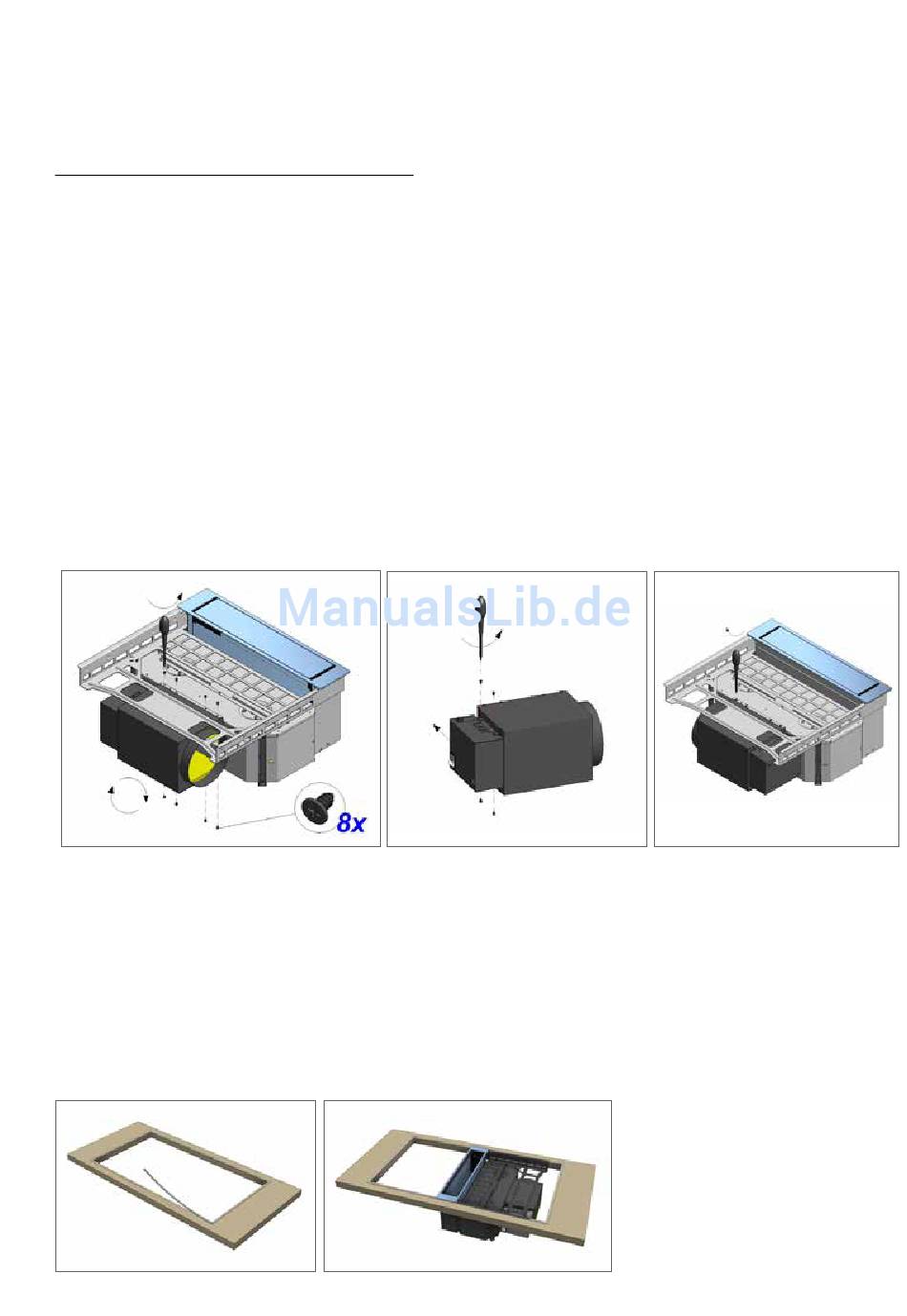

1.2 CHANGE THE EXHAUST DIRECTION
The exhaust direction can be changed dependent on the exhaust direction of the motor casing (left or right of UP_SIDE's
suction opening).
• A: Remove the 8 screws of the sound-insulating outlet .
• B: Turn the electronics box by removing the 4 screws and by placing back the box upside down (cables facing up).
(7901_M3) Remount using the 4 screws.
• C: Turn the outlet 180° again with the 8 screws.
A
2 MOUNTING
Attention! When using the adapter (7901.052), this should be mounted first unto UP_SIDE, before placing UP_SIDE into the
table top (more information about the adapter 7901.052 is to be found at point 6).
2.1

SURFACE MOUNTING

Stick the delivered grey insulating tape (661-050) on the edge of the opening.
Determine the position of UP_SIDE and put it at the correct place in the opening.
Proceed with 2.3
B C
EN 21
