2.2
FLUSH MOUNTING
Before installing the domino and/or the induction hotplate, please make the preparations below with respect to the appliances.
•
In order to be able to completely seal UP_SIDE after installation, apply a drip tray (990-987) to the bottom side of the
adjacent domino or induction hotplate only along the side lying against UP_SIDE.
•

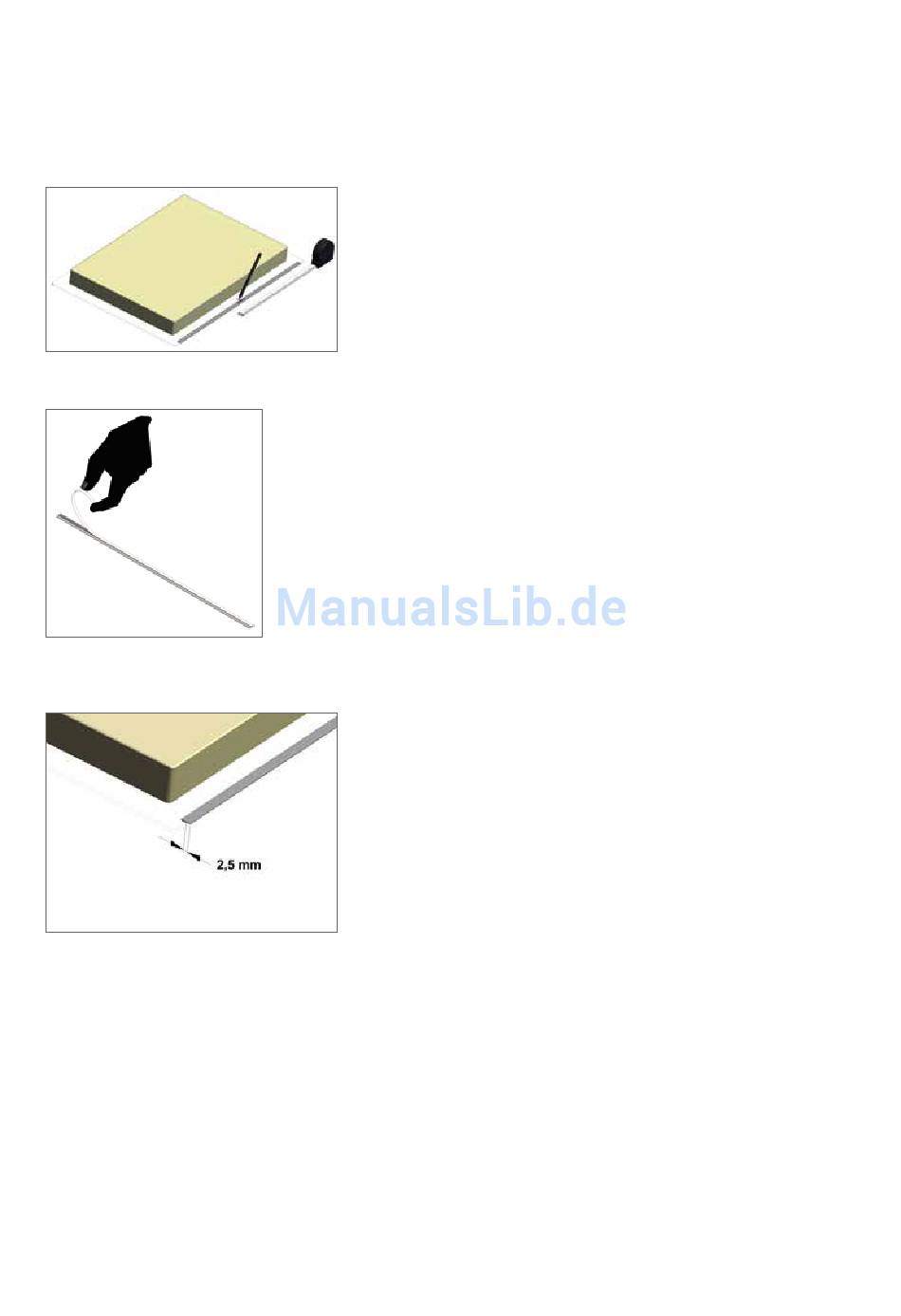

Turn the appliance concerned and mark the centre of the side lying against UP_SIDE.
•
Also mark the centre of the drip tray and remove the protective layer from the adhesive strip.
•
Stick the drip tray unto the bottom side of the work surface of the domino or induction hotplate and make sure the tray is
centred and protrudes max. 2,5 mm along the edge of the appliance.
Place UP_SIDE at the correct position and first shut off the exhaust duct before laying the domino or the induction hotplate
into the cut-away.
2.3
INSTALL THE EXHAUST DUCT
The exhaust of the hood must be well maintained in order to exhaust the cooking fumes as well as possible. You may choose
between an exhaust duct to the outside or connecting the exhaust duct to an exhaust box with a monoblock recirculation filter.
Information about the exhaust box is to be found in chapter 6.
For optimum performance of the hood it is important to pay attention to the points given below.
When using a round exhaust duct:
•
Use smooth, non-fla mmable pipes with an internal diameter that is equal to the external diameter of the connection
nozzle of the hood. The UP_SIDE requires an exhaust duct of Ø150 mm. Maximally extend flexible ducts and cut them to
size.
•
Do not reduce the exhaust diameter. This will decrease the capacity and increase the noise level.
•
When connecting to a short exhaust duct, it may be required to mount a non-return valve TSKE in the duct to prevent the
EN 22
