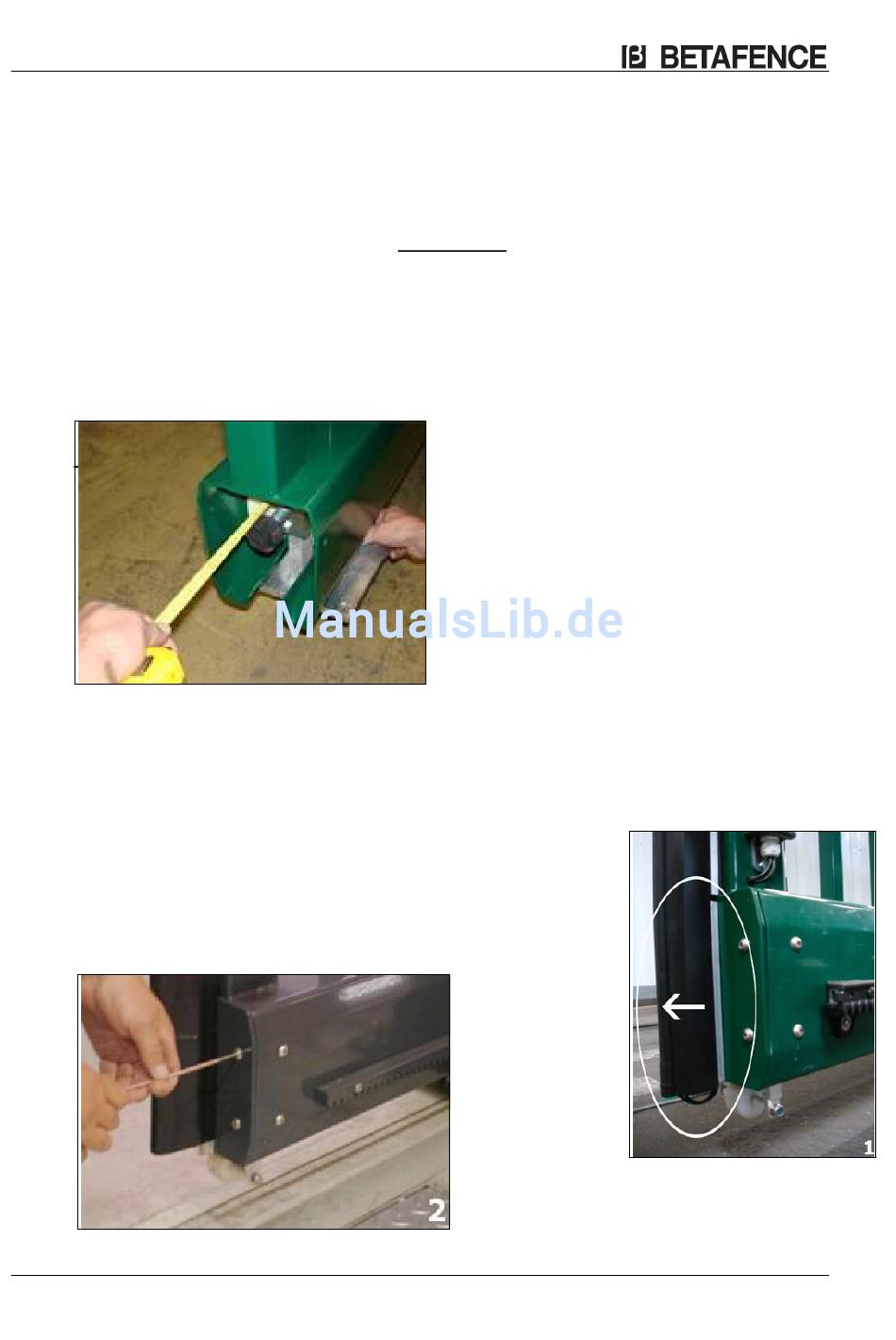

5.Adjustment of the mechanical stops

5.1. Adjustment of the front mechanical end buffering

The verification and/or the adjustment of the mechanical end buffering must always
be executed. When the end buffering is not adjusted properly it may cause severe
irreversible damage to some parts of the gate.
The mechanical end buffering is located on the front- and rear support of the guiding
wheels in the under beam. To have access to them the front and the rear of the
under beam must be opened.
However, if there is some deviation from the foundation plan or if an obstacle at the
rear side of the gate is preventing the wing opening over its full length, then adjust
according to the description below:
1. Remove the lower part of the safety pressure strip from
its aluminum fixation profile.
2. Remove the front cover plate from the under beam by
unscrewing the 4 screws on the front of the underbeam.
®
Robusta Freitragende Schiebetore/Cantilever sliding gate
Ed. February 2015
ATTENTION!
If the gate is installed correctly according
the foundation plan, the front end buffer
doesn't need to be adjusted as the factory
default setting (default 13 cm) will be
sufficient.
- Robusta
®
28/36
