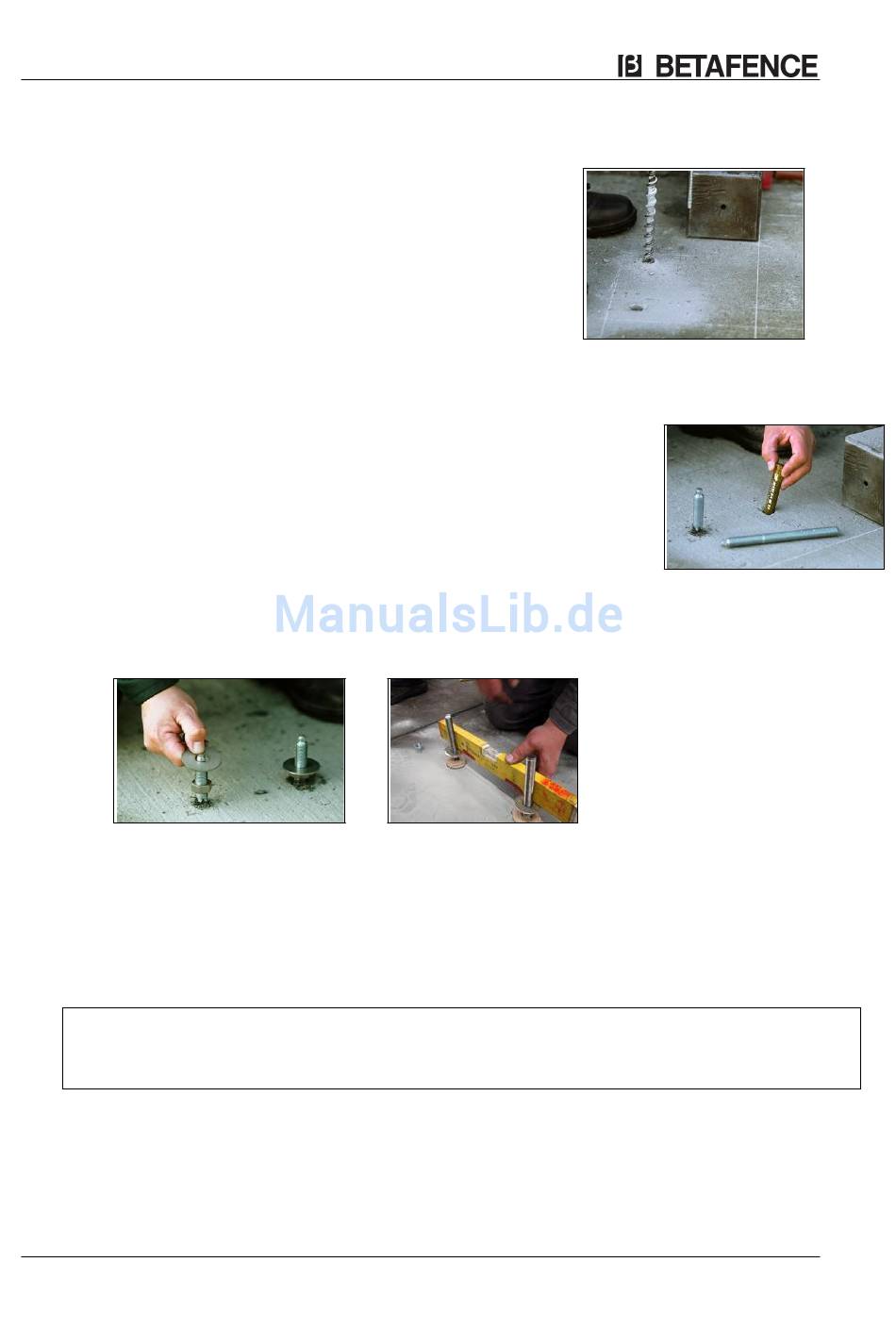

4.2. Ground anchors

1. Install the ground fixations of the guiding and end
post according to the positions indicated on the
foundation plan. Therefore following fixation material
is required: Chemical anchors M16 (minimum 100mm
above Finished Ground Level. For anchor depth check
installation manual of supplier chemical resin).
Betafence does not deliver the chemical anchors.
2. Mark the position of the holes with a small diameter
concrete drill, this will help to centre the final drill.
3. Drill the corresponding holes for the fixation according the installation instructions of the
supplier of the chemical anchors. Drillings must be in good vertical
position.
4. Remove any dust and small particles from the drill holes using a brush
and hand pump. This will ensure perfect adhesion between the resin
for the ground anchor and the concrete foundation.
5. Place the chemical anchors according to the instructions of the
supplier. Drying times must be respected.
Use "high bond" type anchors for correct installation.

4.3. Preparing of the installation levels

1. Screw the bottom adjustment nuts on their ground anchors and place the washers on the
nuts.
2. Choose one anchor at the guiding post and turn its nut until the washer is leveled 30mm
above concrete level. Use this anchor as reference and p u t all other nuts / washers of the
guiding and l o c k post at the same l e v e l , so that they are perfectly horizontal one b e t w e e n
another.
Remark:
It's very important to fill the free space under the plate of the guiding- and
lock post with shrinkage-compensated concrete.
®
Robusta Freitragende Schiebetore/Cantilever sliding gate
Ed. February 2015
®
- Robusta 23/36
