Recommended fuels
Some conventional gasolines are being blended
with oxygenates such as alcohol or an ether com-
pound to meet clean air standards. Your engine is
designed to operate satisfactorily on any gasoline
intended for automotive use including oxygenated
gasolines. It is recommended to use unleaded
petrol as fuel.
Lubrication of chain and chain bar
Whenever you refi ll the fuel tank with petrol you
must also top up the level of chain oil in the chain
oil tank. It is recommended to use standard chain
oil.

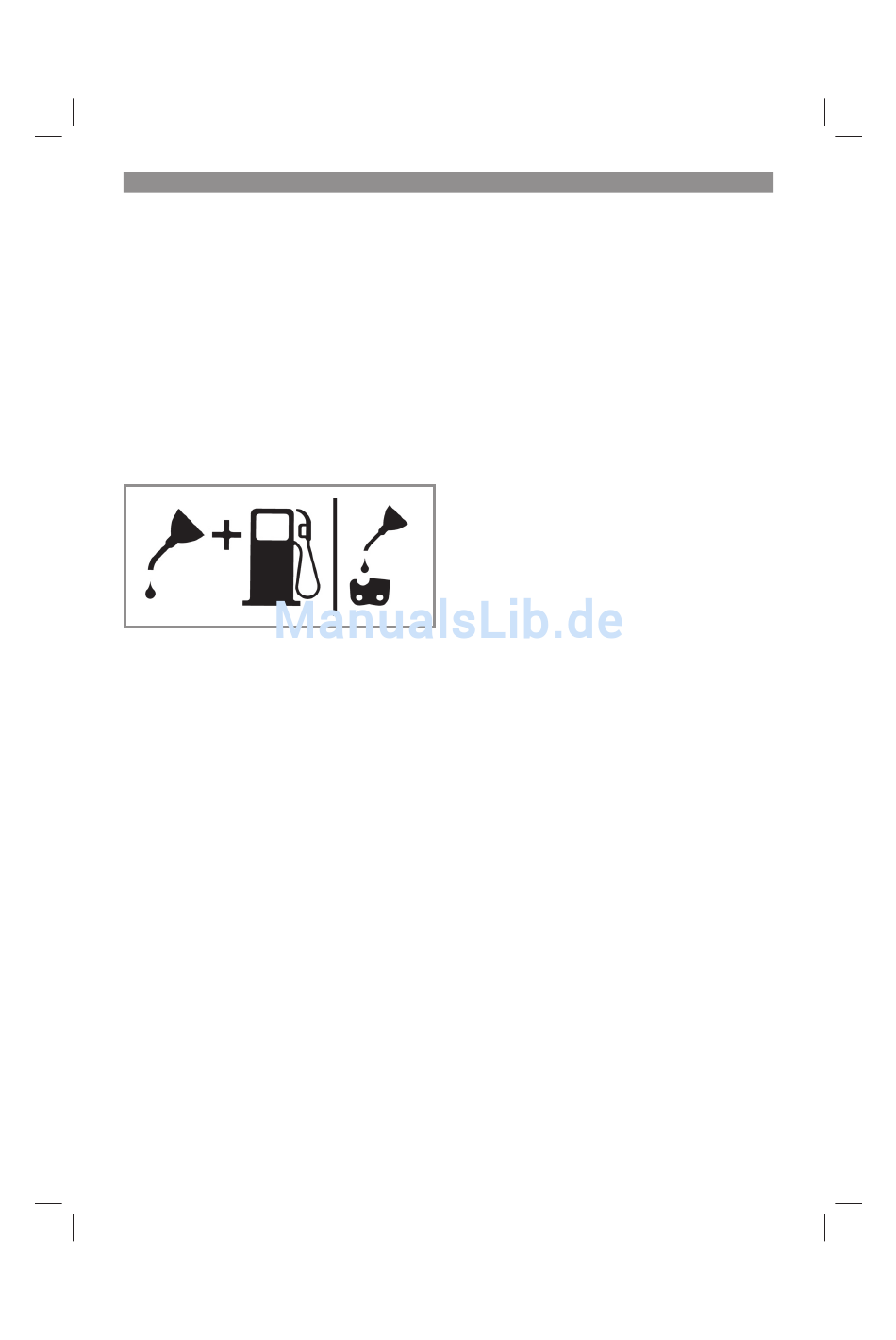

Engine oil and gasoline
Mixture 1:40
Engine pre-start checks
Danger: Never start or operate the saw unless
the bar and chain are properly installed.
1. Fill the fuel tank (21) with correct fuel mixture
(Fig. 4).
2. Fill the oil tank (22) with chain oil (Fig. 4).
Once you have fi lled the chain and oil tank, tigh-
ten the tank cover securely by hand. Do not use
any tools to do so.
6. Operation
Before you use the saw, check it for damage.
If you discover any damage, do not use it. The
chainsaw may be started only when the chain
brake is engaged. The chain brake is engaged
when the brake lever (6) is pushed forward.
Explanation of how it works: refer to Che-
cking the chain brake - Static check.
Anl_GC_PC_1235_I_SPK1.indb 26 Anl_GC_PC_1235_I_SPK1.indb 26
GB

6.1 Chain brake

The chainsaw is fi tted with a chain brake which
reduces the risk of injury caused by the danger of
kickback. The brake is engaged when pressure is
applied to the hand guard (6), e.g. when the hand
of the person operating the chainsaw strikes the
hand guard (6) if kickback occurs. When the bra-
ke is engaged, the chain (3) stops abruptly.
Warning: The chain brake is intended to reduce
the risk of injury due to kickback; however, it is un-
able to provide adequate protection if the saw is
used carelessly. You must check the operation of
the chain brake on a regular basis. Test the chain
brake before the fi rst cut, after several cuts, after
maintenance is done on the chainsaw and if the
I Saw chain chainsaw has been subjected to strong impact or
if it has been dropped.
6.1.1 Checking the chain brake (Fig. 5A/5B/6)
Static check (engine switched off )
Chain brake disengaged (chain (3) is free to
move)
1. Pull the front hand guard (6) towards the front
I Oil Only
handle (7). The front hand guard (6) must
make an audible click when it snaps into
place. (Fig. 5A)
2. It must be possible to move the chain (3) on
the guide rail (2).
Chain brake engaged (chain (3) is blocked)
1. Push the front hand guard (6) towards the
guide rail (2). The front hand guard (6) must
make an audible click when it snaps into
place. (Fig. 5B)
2. It must not be possible to move the chain (3)
on the guide rail (2).
Note: The front hand guard (6) must snap into
place in both positions. If you feel strong resis-
tance or if the front hand guard (6) does not snap
into place, do not use the chainsaw. Take your
chainsaw to an authorized service center for
repair.
Dynamic check (engine is started)
1. Place the saw on a fi rm and level surface.
2. Hold the front handle (7) with your left hand.
3. Start the chain saw by following the starting
instructions. (refer to 6.2 and 6.3)
4. Disengage the chain brake (pull the front
hand guard (6) towards the front handle (7)).
(Fig. 5A)
5. Grasp the rear handle (8) with your right
hand.
