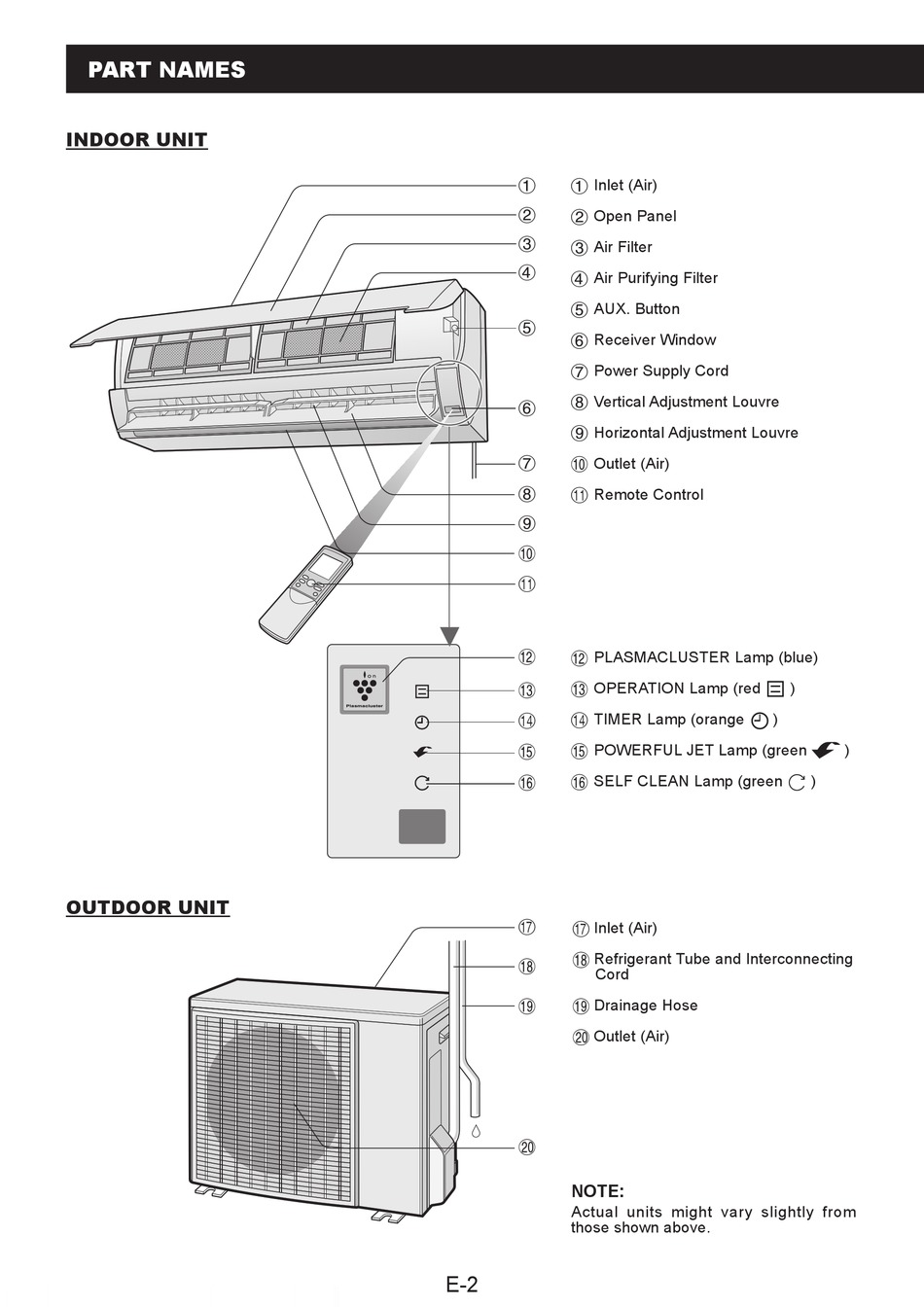

PART NAMES

INDOOR UNIT
OUTDOOR UNIT
1 Inlet (Air)
1
2 Open Panel
2
3
3 Air Filter
4
4 Air Purifying Filter
5 AUX. Button
5
6 Receiver Window
7 Power Supply Cord
8 Vertical Adjustment Louvre
6
9 Horizontal Adjustment Louvre
7 0 Outlet (Air)
q Remote Control
8
9
0
q
w PLASMACLUSTER Lamp (blue)
w
e OPERATION Lamp (red
e
r TIMER Lamp (orange
r
t POWERFUL JET Lamp (green
t
y SELF CLEAN Lamp (green
y
u u Inlet (Air)
i Refrigerant Tube and Interconnecting
i
Cord
o Drainage Hose
o
p Outlet (Air)
p
NOTE:
Actual units might vary slightly from
those shown above.
E-2
)
)
)
)
