A201_5 OPERATOR MAINTENANCE

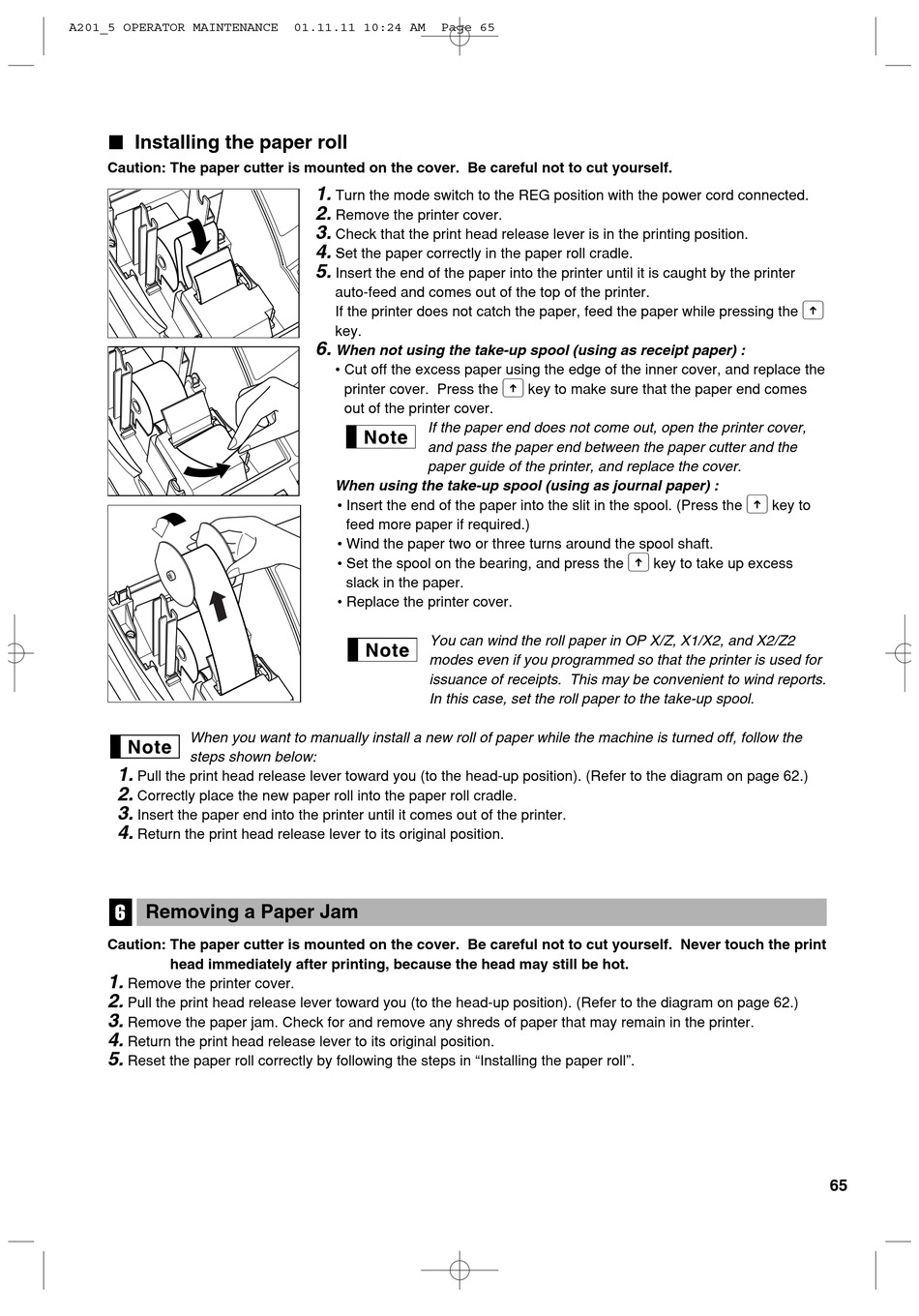

Installing the paper roll
Caution: The paper cutter is mounted on the cover. Be careful not to cut yourself.
When you want to manually install a new roll of paper while the machine is turned off, follow the
steps shown below:
1.
Pull the print head release lever toward you (to the head-up position). (Refer to the diagram on page 62.)
2.
Correctly place the new paper roll into the paper roll cradle.
3.
Insert the paper end into the printer until it comes out of the printer.
4.
Return the print head release lever to its original position.
6

Removing a Paper Jam

Caution: The paper cutter is mounted on the cover. Be careful not to cut yourself. Never touch the print
head immediately after printing, because the head may still be hot.
1.
Remove the printer cover.
2.
Pull the print head release lever toward you (to the head-up position). (Refer to the diagram on page 62.)
3.
Remove the paper jam. Check for and remove any shreds of paper that may remain in the printer.
4.
Return the print head release lever to its original position.
5.
Reset the paper roll correctly by following the steps in "Installing the paper roll".
01.11.11 10:24 AM Page 65
1.
Turn the mode switch to the REG position with the power cord connected.
2.
Remove the printer cover.
3.
Check that the print head release lever is in the printing position.
4.
Set the paper correctly in the paper roll cradle.
5.
Insert the end of the paper into the printer until it is caught by the printer
auto-feed and comes out of the top of the printer.
If the printer does not catch the paper, feed the paper while pressing the
key.
6.
When not using the take-up spool (using as receipt paper) :
• Cut off the excess paper using the edge of the inner cover, and replace the
printer cover. Press the
out of the printer cover.
If the paper end does not come out, open the printer cover,
and pass the paper end between the paper cutter and the
paper guide of the printer, and replace the cover.
When using the take-up spool (using as journal paper) :
• Insert the end of the paper into the slit in the spool. (Press the
feed more paper if required.)
• Wind the paper two or three turns around the spool shaft.
• Set the spool on the bearing, and press the
slack in the paper.
• Replace the printer cover.
You can wind the roll paper in OP X/Z, X1/X2, and X2/Z2
modes even if you programmed so that the printer is used for
issuance of receipts. This may be convenient to wind reports.
In this case, set the roll paper to the take-up spool.
F
key to make sure that the paper end comes
F
key to take up excess
F
F
key to
65
