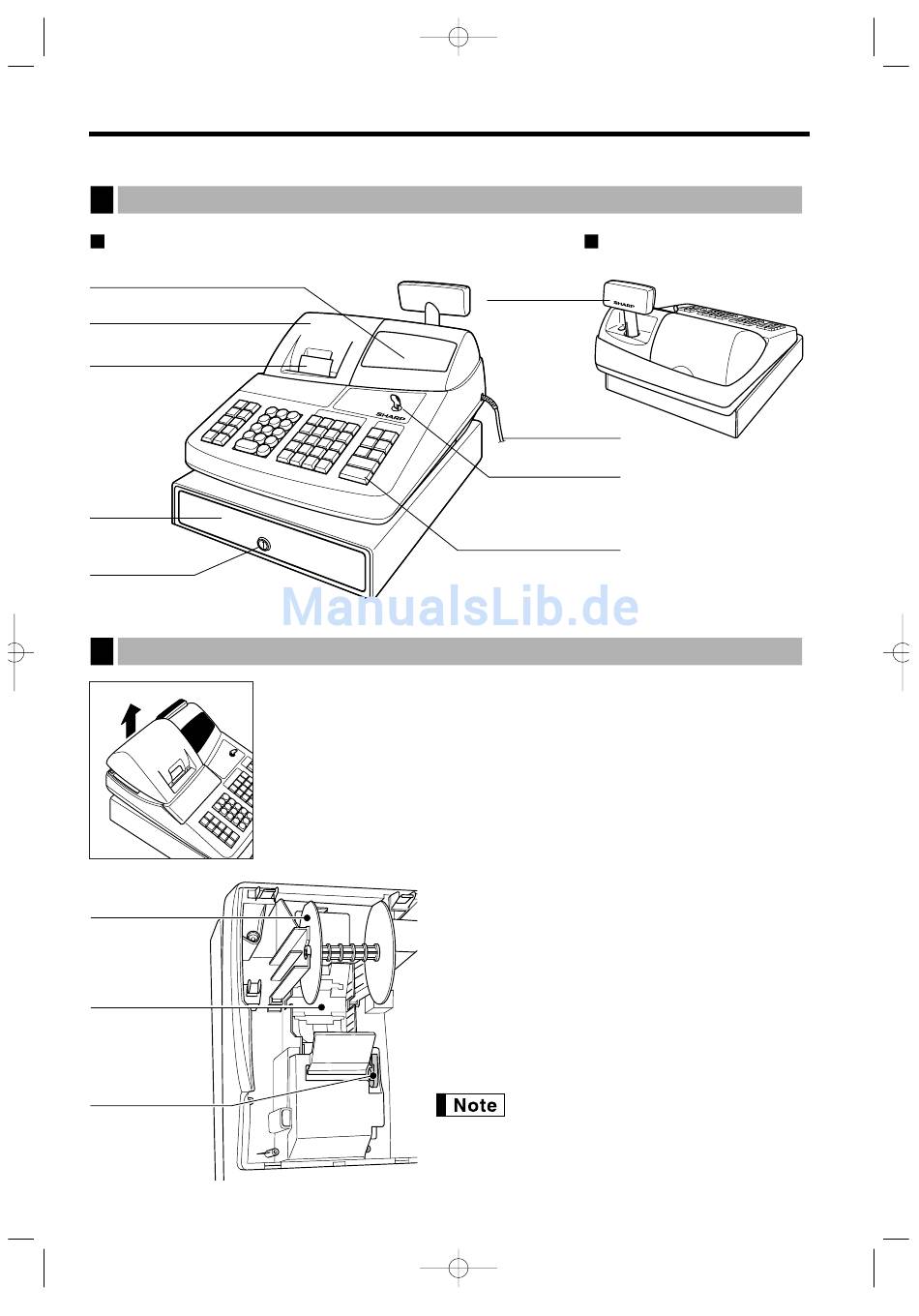

PARTS AND THEIR FUNCTIONS

1

External View

Front view
Operator display
Printer cover
Receipt paper
Drawer
Drawer lock
2

Printer

Take-up spool
Paper roll cradle
Print head
release lever
4
Page 4
The printer is one station type thermal printer, and therefore it does not require any
type of ink ribbon or cartridge.
Lift the rear of the printer cover to remove. To re-install, hook the pawls on the
cabinet and close.
Caution: The paper cutter is mounted on the cover. Be careful not to cut
yourself.
Print head release lever
The print head can be lifted off the roller by the print head
release lever (light green lever on the right side of the
printer). Pulling the lever toward you moves the print head
away from the roller. If the paper becomes jammed, you
will need to use this lever to release the print head from
the paper to remove the jammed paper.

Rear view

Customer display
(Pop-up type)
AC power cord
Mode switch
Keyboard
Do not attempt to remove the paper roll with
the head in the down position. This may result
in damage to the printer and print head.
