Replacing Air Filter; Changing Drive Belt - Comprag Fv4513 Bedienungsanleitung

5.5

Replacing air filter

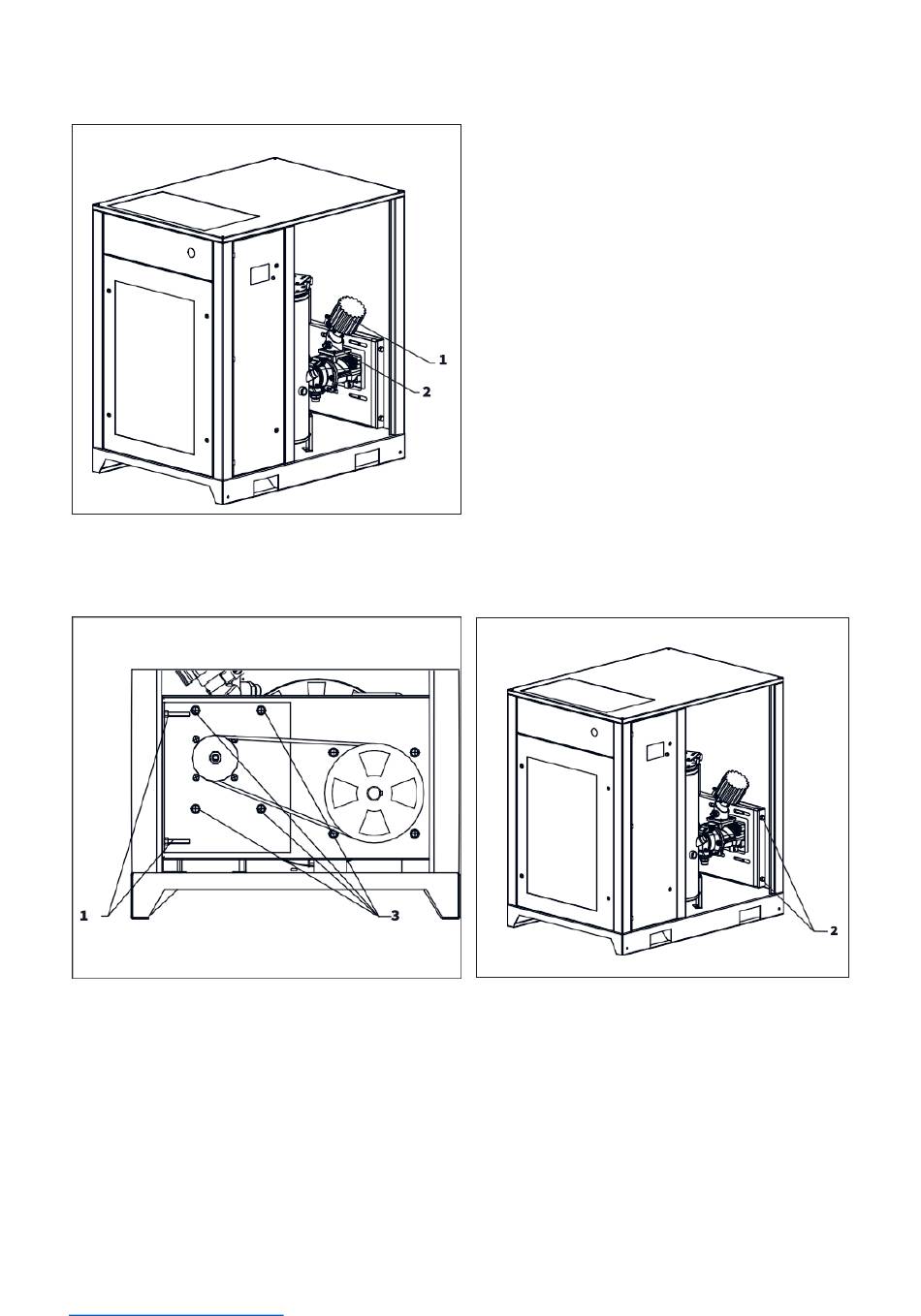

Fig. 5.5 Air filter replacing
5.6

Changing drive belt

Fig. 5.6 Changing drive belt
Open the front and right side panel, loosen the 4 screws (3) securing the bracket of the air
end by turning them 2 revolutions. Loosen the 2 bolts of the support (2) and the 2 correspond-
ing nuts (1) on the tensioner using a wrench. Remove the old belts from the pulleys and install
the new belts. After installing the new belt, tighten the belt with the appropriate tensile force
(see section 5.3 Checking Drive Belt). Tighten the 2 bolts of the support (2) and the 2 corre-
sponding nuts on the tensioner. Tighten the 4 screws of the bracket of the air end. Check the
belt tension within four hours of the compressor's operation in accordance with section
+7 (800) 777-83-75(звонок бесплатный)
https://www.v-p-k.ru/
The air filter (1) is attached to the compres-
sor's intake valve. In order to replace it,open
the front side panel, loosen the clamp
(2) securing the filter. Remove the contam-
inated filter, and detach the clamp from it.
Set the new filter in its place and fit into
place with the clamp.
5.3.
FV4513
