Machine Description; Machine Parts; Technical Data; Operation - ECM C-MANUALE 54 Bedienungsanleitung

3

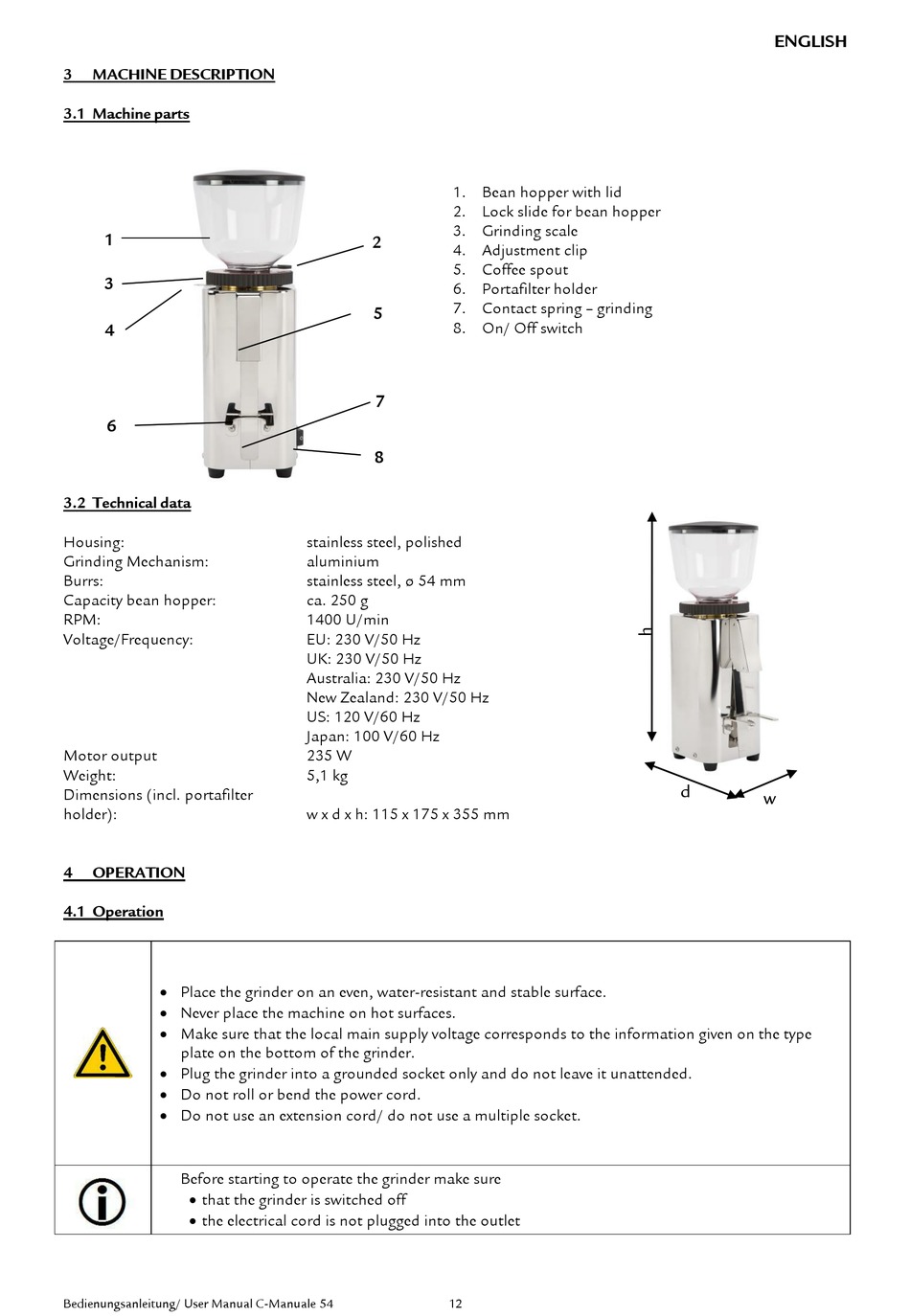

MACHINE DESCRIPTION

3.1 Machine parts

1
3
4
6

3.2 Technical data

Housing:
Grinding Mechanism:
Burrs:
Capacity bean hopper:
RPM:
Voltage/Frequency:
Motor output
Weight:
Dimensions (incl. portafilter
holder):
4

OPERATION

4.1 Operation
 Place the grinder on an even, water-resistant and stable surface.
 Never place the machine on hot surfaces.
 Make sure that the local main supply voltage corresponds to the information given on the type
plate on the bottom of the grinder.
 Plug the grinder into a grounded socket only and do not leave it unattended.
 Do not roll or bend the power cord.
 Do not use an extension cord/ do not use a multiple socket.
Before starting to operate the grinder make sure
 that the grinder is switched off
 the electrical cord is not plugged into the outlet
Bedienungsanleitung/ User Manual C-Manuale 54
1. Bean hopper with lid
2. Lock slide for bean hopper
3. Grinding scale
2
4. Adjustment clip
5. Coffee spout
6. Portafilter holder
7. Contact spring – grinding
5
8. On/ Off switch
7
8
stainless steel, polished
aluminium
stainless steel, ø 54 mm
ca. 250 g
1400 U/min
EU: 230 V/50 Hz
UK: 230 V/50 Hz
Australia: 230 V/50 Hz
New Zealand: 230 V/50 Hz
US: 120 V/60 Hz
Japan: 100 V/60 Hz
235 W
5,1 kg
w x d x h: 115 x 175 x 355 mm
12
ENGLISH
d
w
