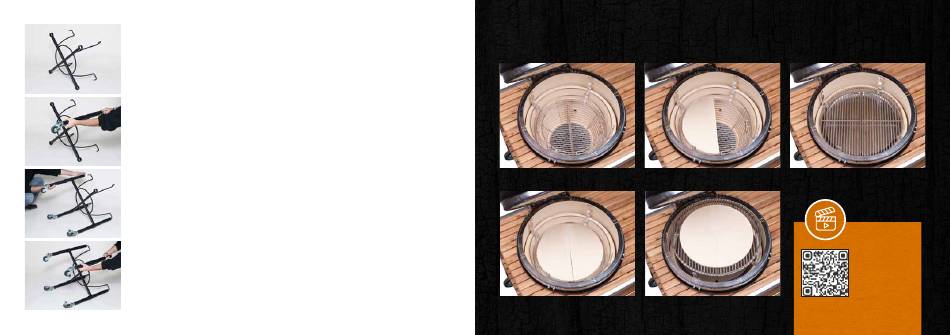

ASSEMBLY WITH STAND
A. Assemble the stand by placing the cradle upside down, wit-
hout feet, on a sheet or pad. Push the legs through the guide
tube and screw onto the end of the stand. We recommend you
place a piece of paper between the guide tube and the legs in
order to prevent scratches. Place the stainless steel caps over
the threaded rods and screw each leg into the cradle. (Basic &
Junior require legs to be bolted to the cradle)
Caution: In order to guarantee easier use of the locking mecha-
nism, the legs must be attached with the lockable castors next to
each other at the front.
B. Turn the stand over and lock the wheels.
Caution: Make sure the grill is on a flat surface which can bear
the heavy weight of the grill. The grill should never be placed in the
immediate vicinity of combustible materials. The grill must not be
operated in closed rooms.
C. Lower the unit into the stand, making sure the air supply
control and the opening for ash removal is in the middle of the
legs with the locking castors.
Caution: We recommend that the grill unit be carried by two
people because of its weight. Gloves will help prevent injuries.
D. Loosen the two cap nuts on the front of the upper locking
ring and attach the handle to the bolt. Screw the cap nuts back
on to the bolts and tighten with a wrench.
E. Fasten the ventilation cap to the lid.
F. Place the metal frame of the fire box inside the grill with
the ash compartment opening precisely in front of the ash re-
moval opening / airflow control. Then gradually fit the ceramic
segments of the fire box – 5 ceramic segments for the MONO-
LITH Classic & LeChef & 4 for the Icon. For the Junior, fit the
one-piece fire box.
G. Place the fire ring on the fire box (not Icon) with the opening
for feeding in wood chips precisely in front of the correspon-
ding opening / valve in the unit.
H. Place the cast iron grate inside the fire box and then the
charcoal basket (Classic & LeChef only) inside the fire box, ma-
king sure that the opening in the basket is aligned with the
opening / valve for feeding in wood chips.
I. Place the metal frame of the smart grid system (Classic &
LeChef only) on top of the fire ring. Hook the support ring
into the corresponding eyelets. Now all of the elements of the
smart grid system can be inserted. Deflector stone, drip pan
and grid. For Junior, place ceramic heat deflector stone in the
lift frame and rest on the fire ring.
K. Hook the side tables (Classic & LeChef models with cart) into
the corresponding brackets in the unit. If necessary, adjust the
distances between the brackets on the side tables by bending
them slightly.
Caution: Before and after first use, check that all screws are secu-
rely fastened to the unit and stand. The screws of the locking ring
in the unit must be tightened regularly, as the gaskets underneath
them may draw together with use.
The frame for the Avantgarde series is available separately.
Please follow the assembly instructions included in the packa-
ging of the frame.
SETUP
Grilling, smoking, baking, cooking, searing. With its multiple setup configurations,
your new MONOLITH combines all this in a single grilling appliance.
Charcoal basket with divider (Classic & LeChef) Deflector stone (Junior) with lift for indirect
cooking (*additional cost option for Icon)
Deflector stone (both halves) with lift for Baking stone for pizza or bread
indirect cooking (Basic) (optional accessory)
21
Deflector stone ((halved) in Classic and LeChef),
divided drip pan, two half stainless steel grates,
ring for height adjustment
SCAN
ME!
You can find tutorials
on MONOLITH set-
ups on our Youtube
Channel.
