Note:
• The maximum and minimum volume of liquid is 6 ml (at max level mark) and 2 ml respectively.
• Do NOT exceed the limit (Max. 6 ml).

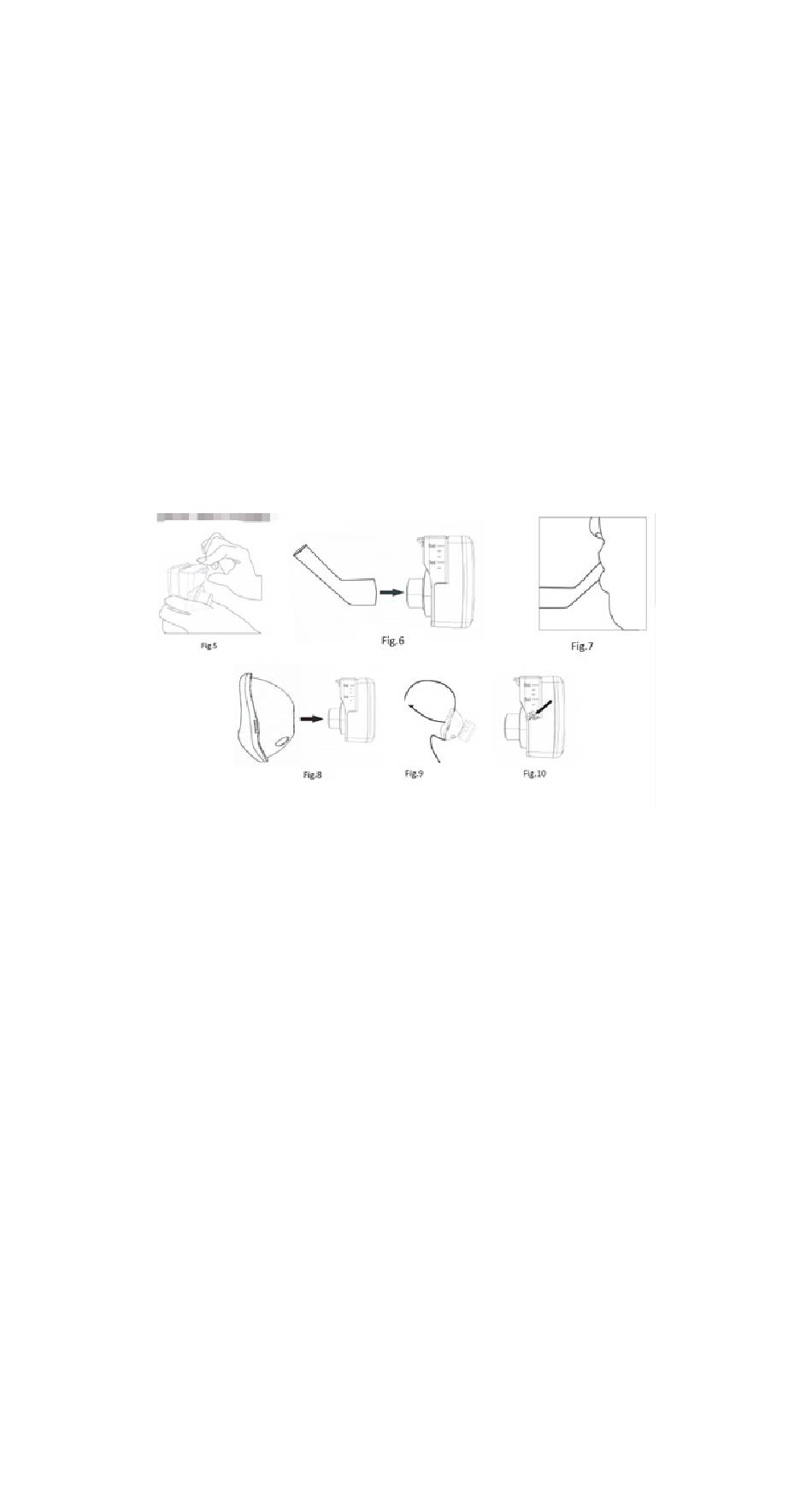

4. Close the medicine cup:
Hold the device and close the nebulizer cover, press the lock downwards with the thumb to the point
when you hear a "ka" sound which indicates a good closing state, see Fig.5.
5. Install accessories and performing the inhalation:
Install the mouthpiece: connect the mouthpiece to the outlet of nebulizer along the direction of
arrow, see Fig. 6.
Use the mouthpiece: bring the mouthpiece into mouth and close lips slightly to facilitate aerosol
medication flowing to the lesion position smoothly (see Fig.7) And then press the ON/OFF button.
Use the mask:
Connect the outlet of nebulizer and the mask successively along the direction of arrow (see Fig.8).
Keep the mask in slightly contact with or a little away from the patient's face, then pull the elastic
belt to back of the head and secure it appropriately (see Fig.9). And then press the ON/OFF button.
1) In case of medication through nasal cavity, it is recommended to takea long breath through nasal
cavity and then exhale through mouth.
2) In case of medication through throat, it is recommended to take breath throuah mouth and then
exhale through nasal cavity.
3) You can alternate between both methods said above. lf mask is used, gently press the mask
against the face so ttat it fits snugly over the mouth and nose.
Note:
• For safety reasons, please choose the accessories we provide when you replace old ones.
• Use mouthpiece correctly and prevent the accumulation of medicationon the tongue.
• Do not swallow the aerosol medication and ensure the medication reaches the affected area.
• For effective aerosol therapy, you should be calm, relaxed and sit still.
The same when lying in bed for treatment. Discomfort posture and unsteady breathing may cause
blockage of the airway.
• Ensure correct posture when receiving aerosol therapy. Steady andslow deep breath will help
aerosol medication to be inhaled into the respiratory tract.
• The device will automatically shut down when the medication is used up.
• When there are many bubbles between the medication and the metal mesh the device is unable
to spray the aerosol. You can turn off the device first. Then gently shake the nebulizer. At last restart
the device (see Fig. 10)
• To ensure that the medication can be nebulized normally, keep the device vertical or tilt it slightly
toward the metal mesh. If an operating device is tilted to the extent that the liquid is not in contact
with the nebulizing head, the device will shut down after a delay time of 10 seconds (10 seconds is
the time for normal saline, other liquids will be different).
• Tilt the nebulizer slightly towards yourself until the solution is almost exhausted to make sure that
the residual solution contacting the mesh is nebulized completely.
• High viscosity solution may result in poor nebulization or clogging of the mesh. In this case, turn off
the power and rinse the accumulated solution on the mesh with distilled water.
• During operation be cautious not to shake the device because it may cause device malfunction,
such as automatic shutdown.
6.End of inhalation:
After the treatment is completed, press the ON/OFF button to shut down the device. Remove the
mouthpiece or mask from the nebulizer in an order reverse to the corresponding installation order.
Press and hold the "press" button to remove the nebulizer head for cleaning.
Pour off the residual medication and clean the device. For detail, please refer to the section-
