Using The Device - Gima Nb-813C Bedienungsanleitung

1. Power supply
Powered by lithium Battery
• Charge the battery before using the nebulizer for the first time.
• Charge the battery when its power is too low to support normal aerosoltherapy.
• The service life of battery is 500 times cycle. And the battery can notbe changed if it fails.
The battery can be charged by DC power supply which should meet the requirement (DC 5V, 0.5A).
Power by DC power supply
• Plug the Type-C end of the cable into the Type-c port of the nebulizer.
• When a mains adapter is chosen as DC power supply, plug the USB end of the cable into the
USB port on the adapter and insert the adapter into the socket.
• When a power bank or a laptop is chosen as DC power supply, plug the USB end of the cable
into the USB port of the power bank or laptop and then power on the equipment.
The power source should meet therequirement (DC 5V, 0.5A).
Notes:
• In the shutdown status, when the battery is charged, the power indicator flashes blue. As soon as
the battery is fully charged, the power indicator turns blue steadily.
• Once the battery is fully charged, disconnect the device from the power supply in time.
• To remove the adapter, disconnect the adapter plug from the socket first and then disconnect the
adapter cord form the DC Jack.
2.Trial Run
Whether you choose battery powered or DC powered, please try tap water before adding medicine,
power on and check whether the power indicator lights up or not. lf it cannot be used normally,
please find the reason in time, see chapter-TROUBLESHOOTING.
Note:
Please select a medical adapter that complies with lEC/ EN 60601-1standard.
3. Cleaning the accessories
• Clean and disinfect the nebulizer head and accessories before using them for the first time after
purchase.
• lf the device has not been used for a long period of time, please cleans and disinfects the
nebulizer head and accessories before using them.
• To prevent the risk of cross infection, different persons should never use the same nebulizer head
and accessories.
• For cleaning and disinfection methods, please refer to the following CLEANING AND
DISINFECTION chapter.

USING THE DEVICE

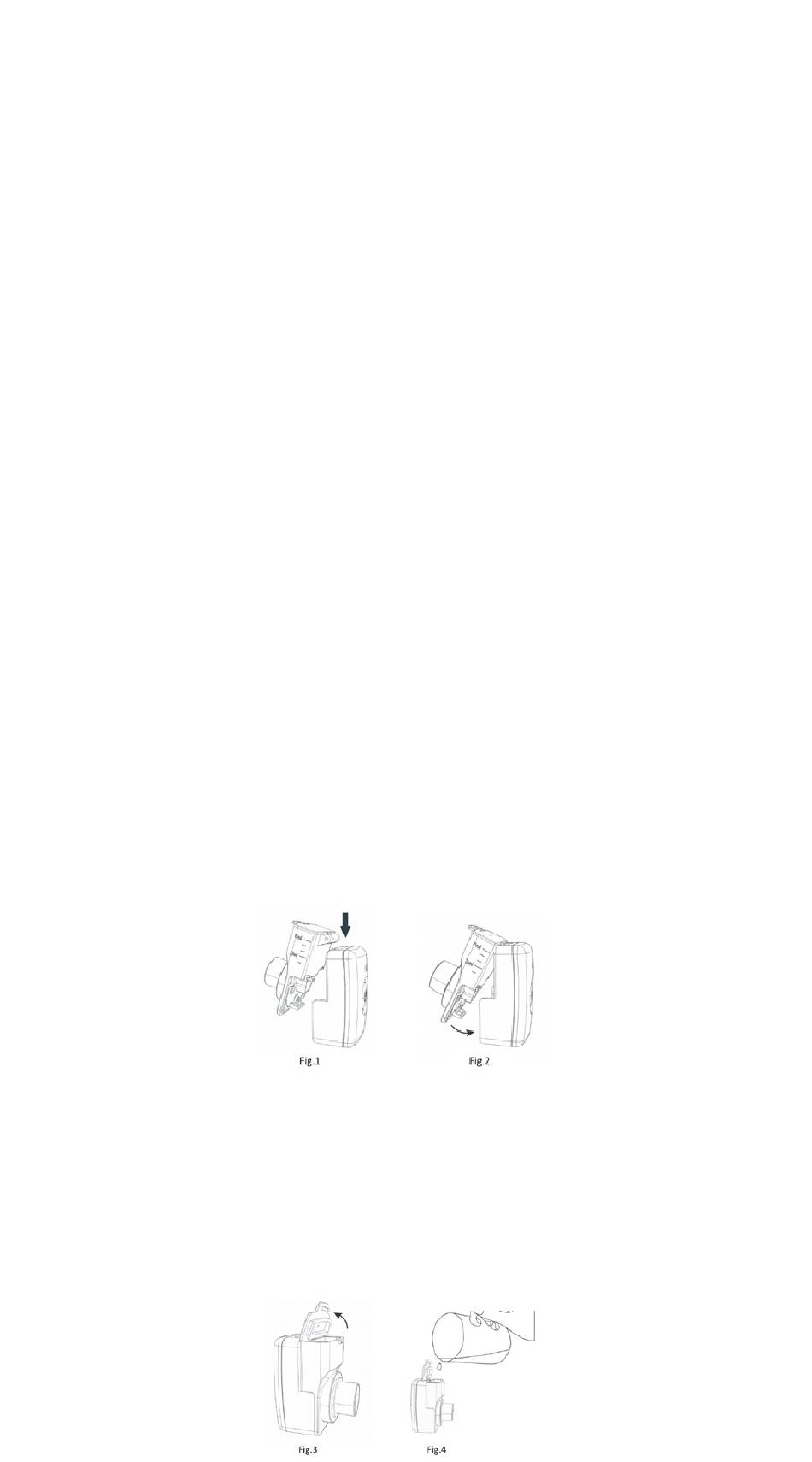

1. Install NebulizerFirst put the hinge of the nebulizer head cover into the groove on the topof the
main unit (as shown in Fig. 1), and then clip the nebulizer head intothe main unit in the direction
indicated in Fig. 2. When the sound of "Ka" is heard, it indicates that the installation is correct.
Note:
If you want to separate the main engine from the atomizing head, hold the "press" button and reverse
the operation steps just now.If you are not going to use the device right now, please place the
assembled device into clean and dry storage bag.
2. Open the medicine cup:
Hold the device and pinch the lock and snap it upward to open the medicine cup as Fig. 3.
3. Add medication:
Make sure that the indicator light is off before adding the medication. Add the quantity of medication
prescribed by your doctor, see Fig.4
