Wiring; Connecting The Plug-In Power Supply (Optional) - Becker Centronic VarioControl VC360-II Montage & Betriebsanleitung

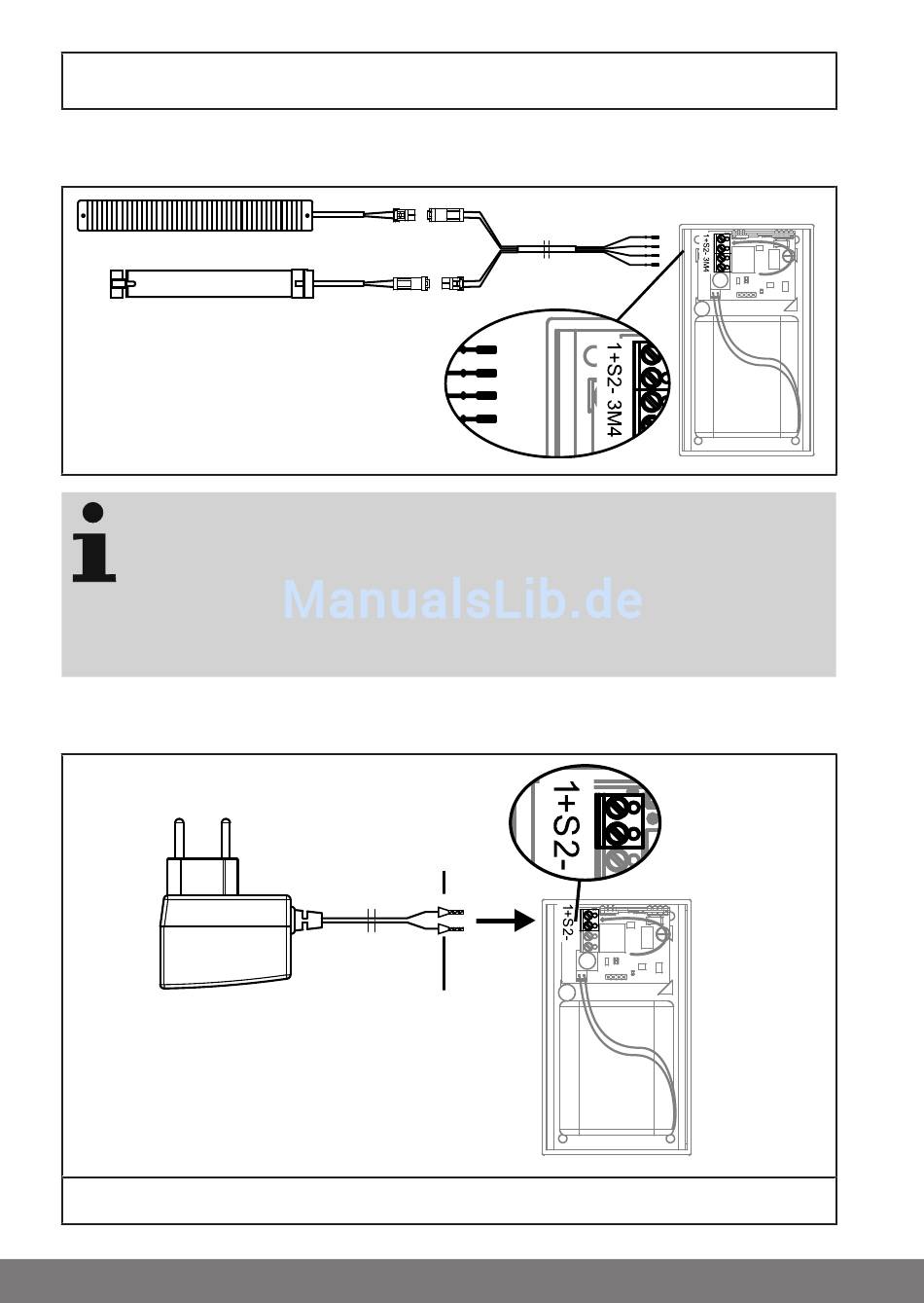

Connect the radio receiver as follows:
1
2
3
4
Ensure that there is optimal radio reception.
Check the direction of rotation of the tubular drive. Should
the direction of rotation be incorrect, swap connecting wires
3 and 4 on the tubular drive.
The charging voltage indicator lamp lights up as soon as the
solar cell is connected.

Connecting the plug-in power supply (optional)

The 12 V plug is optionally available.
28 - en

Wiring

1
2
3
4
Yellow (S1+)
Blue (S2-)
