RF Rx SW868/915/917/922-NET-4S-A
Montage- und Anschlussanleitung / Funk-Aktor
Mounting and wiring instructions / Wireless actor
English
Typical ranges:
Location
in free field (SW868/915/917)
in free field (SW868/915/917) (max.)
in free field (SW922)
in free field (SW922) (max.)
indoors (SW868/915/917)
indoors (SW868/915/917) (max.)
indoors (SW922)
indoors (SW922) (max.)
To get the maximum range: use the specified antennas. With other an-
tennas, the maximum range may differ.
Start-up and select operation mode
Requirements:
- Mount device on standard DIN rail.
- Connect cable for supply voltage 24 VDC.
- The LEDs show the operating states. If the wireless actuator and the
green LED MD are both switched on, then the device is ready for use.
Switching of relays
Switch relays: The relays are switched via the Sensor Bridge. They are
switched manually via the user interface of the Sensor Bridge under
»Sensors & Actors« or via an external interface, e.g. REST API (see
www.nexy.net/docs). The actors have two modes, »Instant« and »Eco«.
In the pre-set Instant mode the relays are switched directly. In the Eco
mode the relays are always switched during the wake-up time of the
RF RxT SW868/915/917/922-NET.
Set wake-up time: The wake-up signal is adjustable (configurable on
the Sensor Bridge interface under: »Groups«, »Timing«).
For example: »0x01« for relays switching once a minute.
Maintenance and cleaning
.steute recommends routine maintenance as follows:
1. Remove all dirt particles: Clean enclosure on the outside only.
Clean device in accordance with IP protection class. Clean with
a soft cloth and water or a mild detergent.
Do not clean using compressed air.
2. Test the function.
Disposal
- Observe national, local and legal regulations concerning disposal.
- Recycle each material separately.
Disposal
- Observe national, local and legal regulations concerning disposal.
- Recycle each material separately.
Safety
Do not use the device in connection with other devices whose direct or
indirect purpose is to ensure life or health, or whose operation may
pose a threat to humans, animals or material assets.
Wireless range
N.B.
(approx.)
Subject to technical modifications. Reconstruction and alterations to
450 m
the device are not allowed.
700 m
150 m
230 m
40 m
50 m

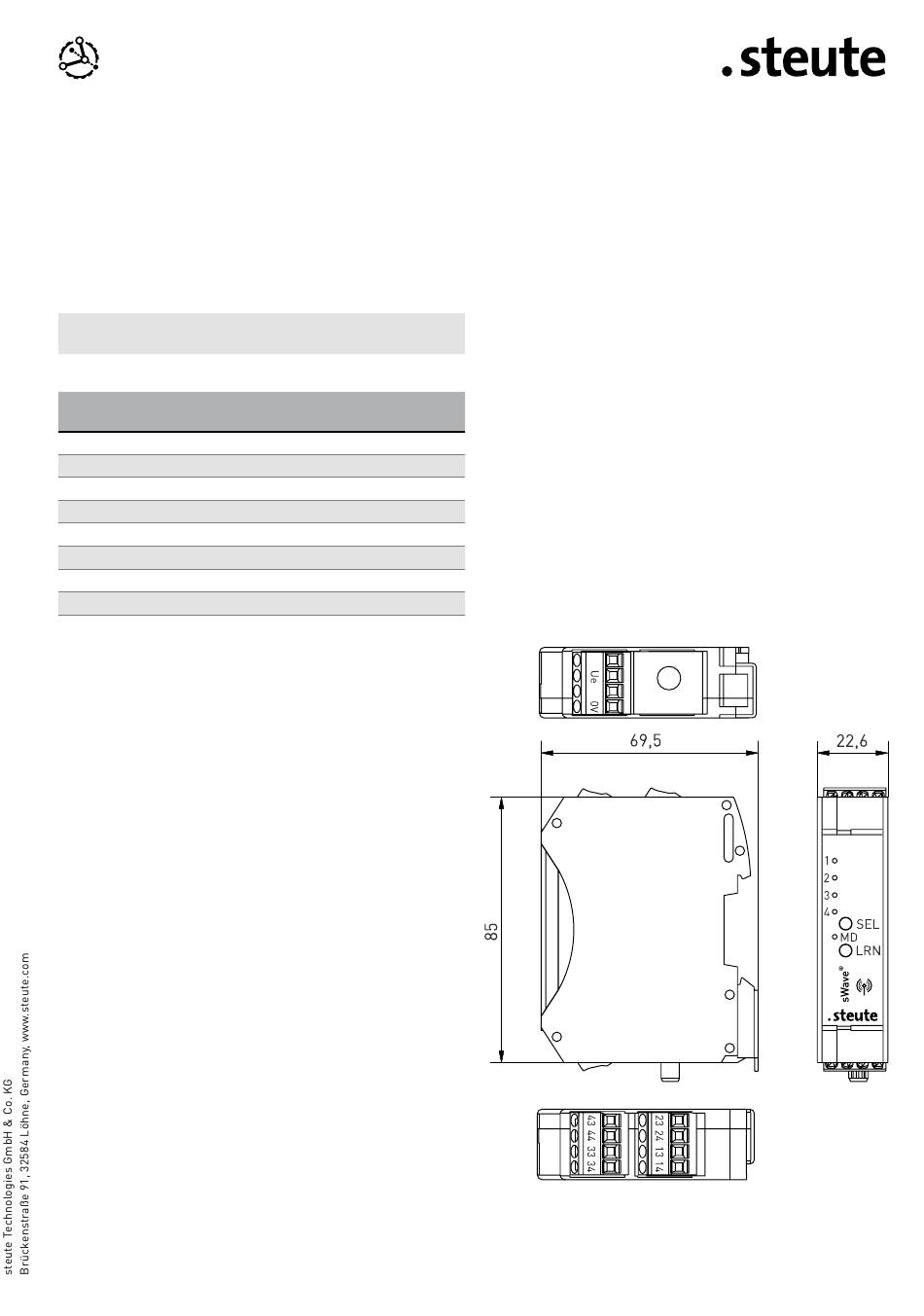

Abmessungen
20 m
Dimensions
25 m
3 / 8
