RF RxT SW868/SW915/SW917/SW922-USB
Montage- und Anschlussanleitung / Funk-Empfänger
Mounting and wiring instructions / Wireless receiver
English
use the receiver is set to »Gateway« mode. The operation mode can be
selected via telegram and is stored until the next change. The LED
lights up green to indicate reception standby and orange to indicate the
receiption of a telegram. Concerning the format of the data observe
the separate telegram description.
Select operation mode
There are six different operation modes that can be selected after
switch-on. For the selection a telegram with an appropriate command
must be transferred to the receiver.
Sniffer mode of operation
In the Sniffer mode all received telegrams are output at the serial
interface.
Gateway mode of operation
In the Gateway mode only telegrams of switchgear are displayed. Re-
sponse telegrams of receivers or repeaters are suppressed.
Receiver mode of operation
In this mode only telegrams of switchgear are displayed that have
been taught in before. The teaching in or deleting of switchgear is car-
ried out in the Learn Mode.
Repeater 1K mode of operation
In this mode telegrams of switchgear are received and transferred in
order to increase the wireless range. Telegrams of other repeaters or
response telegrams are ignored.
Repeater 2K mode of operation
In this mode telegrams of switchgear are received and transferred in
order to increase the wireless range. Telegrams of other 2K repeaters
or response telegrams are ignored.
Learn mode of operation
In the Learn mode switchgear can be taught in or deleted. A maximum
of 40 addresses can be stored. For the selection a telegram with an ap-
propriate command must be transferred to the receiver.
Maintenance and cleaning
.steute recommends routine maintenance as follows:
1. Remove all dirt particles: Clean enclosure on the outside only.
Clean device in accordance with IP protection class. Clean with
a soft cloth and water or a mild detergent. Do not clean using
compressed air.
2. Replace damaged parts.
3. Test the function.
Disposal
- Observe national, local and legal regulations concerning disposal.
- Recycle each material separately.
Herstellungsdatum 014425
Production date
01 Montag Monday
02 Dienstag Tuesday
03 Mittwoch Wednesday
04 Donnerstag Thursday
05 Freitag Friday

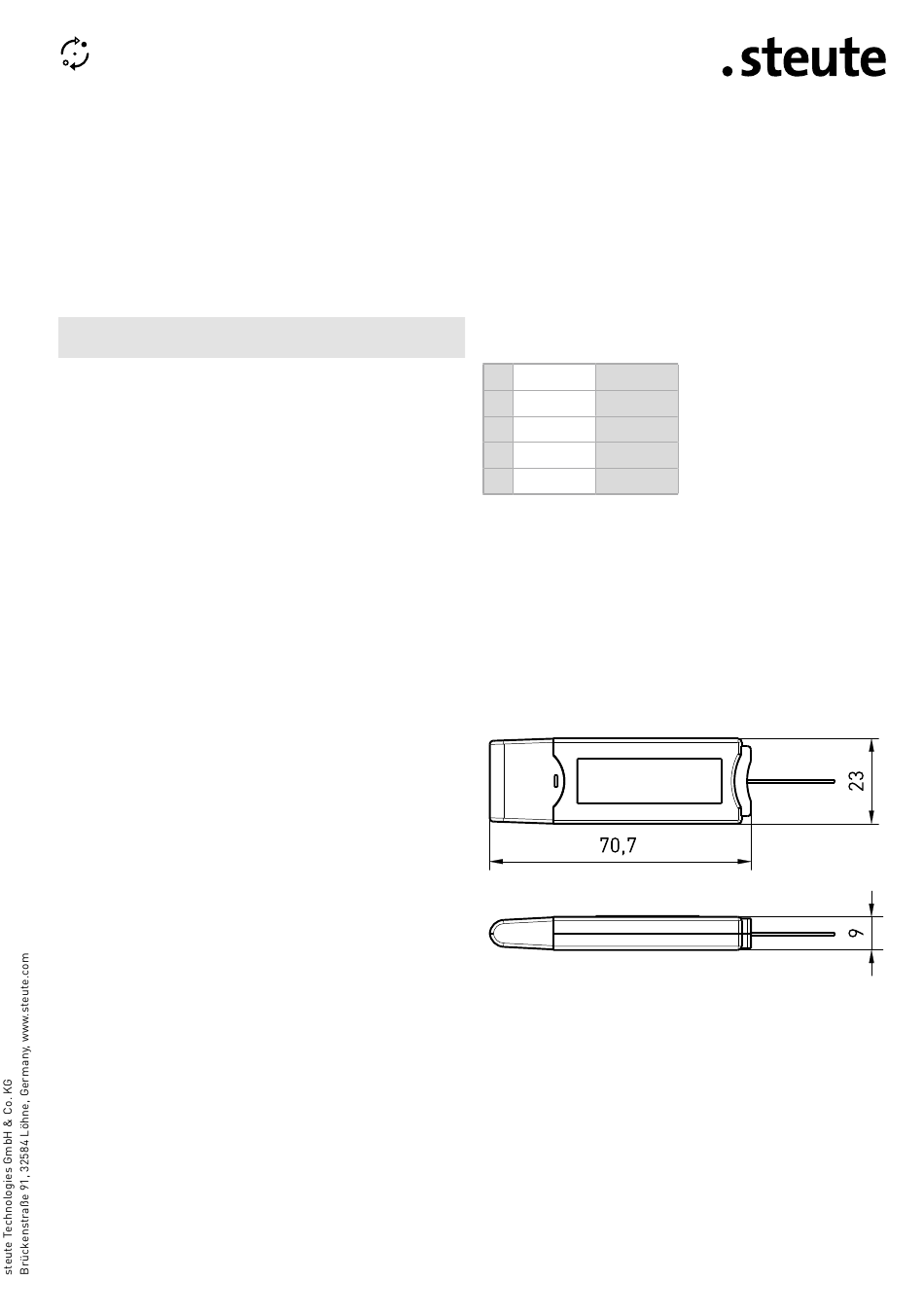

Abmessungen
Dimensions
3 / 8
➡
Montag KW 44 / 2025
Monday CW 44 / 2025
