RAIL KEY INSTALLATION/REMOVAL
THE TLR MUST BE REMOVED FROM THE FIREARM BEFORE THIS PROCEDURE
CAN BE PERFORMED.
The TLR is shipped with a rail key installed and may include a variety of other keys. If the key
is not correct, select a key that will securely attach your TLR to the weapon with special regard
for: width of key and rail slot, operation of the switch, and non-interference with the trigger
guard, etc. Refer to the Compatibility List for configurations that are tested and approved
by Streamlight.
A KEY MUST BE USED OR THE TLR WILL SLIDE OFF THE WEAPON RAIL UNDER RECOIL.
1. Unscrew the rail clamp tension bolt and remove it completely (the tension spring must stay
with the rail clamp tension bolt).
2. Place the key into the slot on the top of the TLR. Note: The key is fitted properly when the
rail clamp tension bolt can be installed.

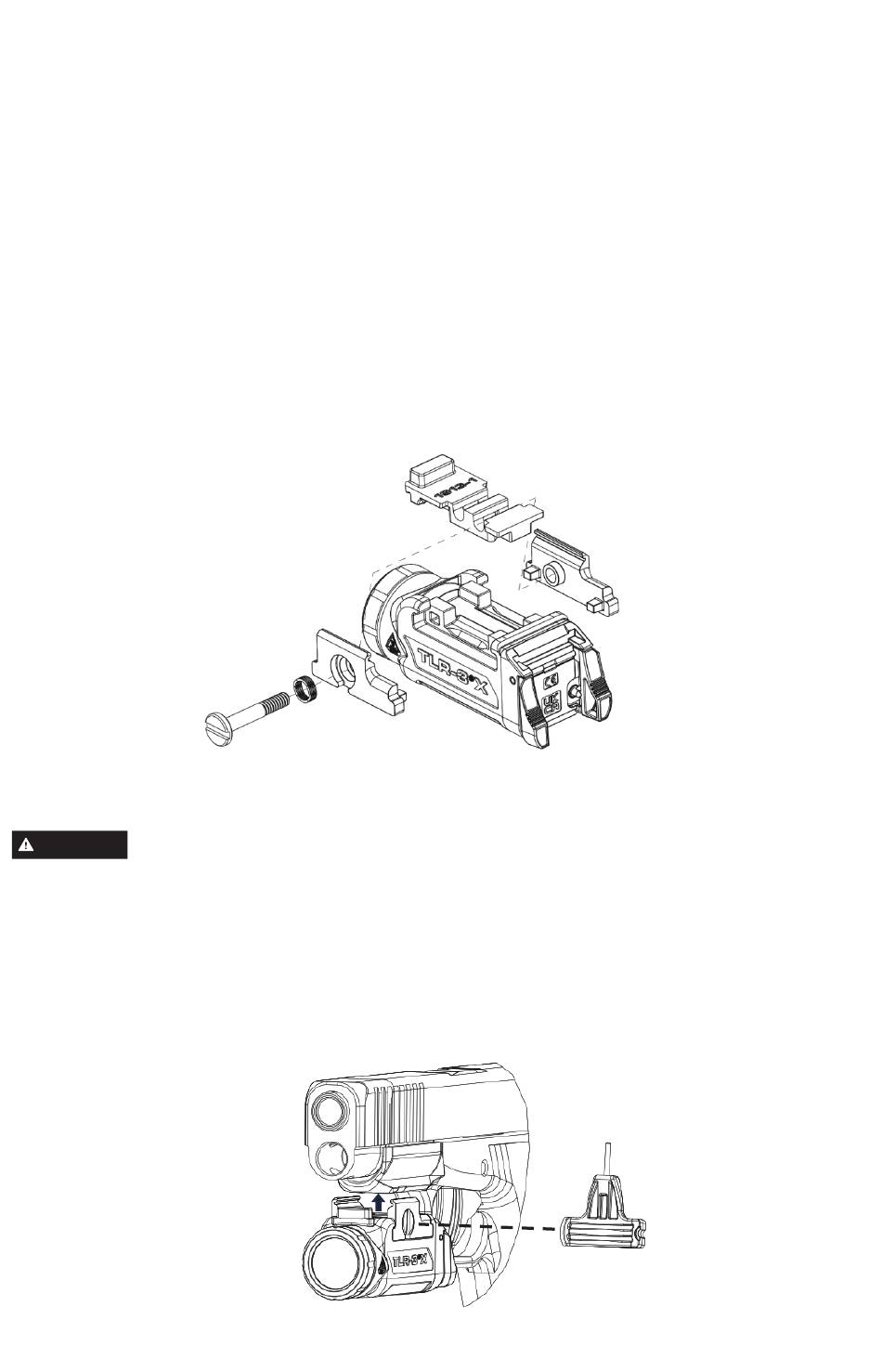

3. Insert the rail clamp tension bolt through the countersunk rail clamp, through the key and
into the threaded clamp as illustrated below.
FLASHLIGHT MOUNTING/REMOVAL
HANDLING A FIREARM CAN BE DANGEROUS AND MAY RESULT IN SERIOUS
WARNING
INJURY, DAMAGE TO PROPERTY, OR DEATH. MAKE SURE THAT THE FIREARM
IS UNLOADED AND THE BREECH IS OPEN. IT IS IMPERATIVE THAT SAFETY MEASURES BE
EMPLOYED AT ALL TIMES WHILE HANDLING THE FIREARM.
1. The TLR is designed to be quickly attached or detached from the side of the weapon
or accessory rail.
2. Loosen the rail clamp tension bolt without disengaging from the threaded clamp end.
3. Position the TLR on the accessory rail and tighten the rail clamp tension bolt until the TLR is
securely attached to the firearm.
NOTE: A coin may be used. Tighten only "finger tight."
