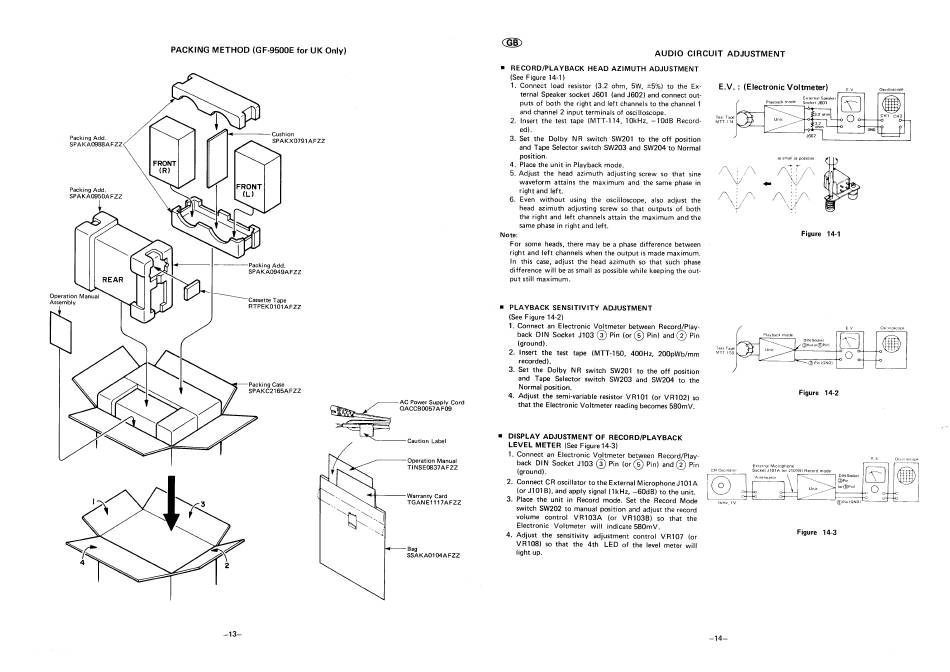

Sharp GF-9500H Serviceanleitung Seite 8

PACKING METHOD (GF-9500E for UK only)
Packing Add.
SPAKA0988AFZZ
FRONT
Packing Add.
SPAKA0950AFZZ
REAR
Operation Manual
Assembly
3
4
2
-13-
Cushion
SPAKX0791AFZZ
FRONT
(L)
Packing Add.
SPAKA0949AFZZ
Cassette Tape
RTPEKOIOIAFZZ
Packing Case
SPAKC2165AFZZ
AC Power Supply Cord
QACCB0057AF09
Caution
Operation
TINSE0837AFZZ
Warranty Card
TGANEI
Bag
SSAKA0104AFZZ
• RECORD/PLAYBACK HEAD AZIMUTH
(See Figure 14-1 )
1. Connect load resistor (3.2 ohm, 5W,
ternal Speaker socket J601 (and J602) and connect out-
puts of both the right and left channels to the channel I
and channel 2 input terminals of oscilloscope.
2. Insert the test tape (MT T.114, 10kHz,
edh
3. Set the Dolby NR switch SW201 to the off position
and Tape Selector switch SW203 and SW204 to Normal
position.
4. Place the unit in Playback mode.
5. Adjust the head azimuth adjusting screw so that sine
waveform attains the maximum
right and left.
Even without using the oscilloscope,
6.
head azimuth adjusting screw so that outputs
the right and left channels attain
same phase in right and left.
Note:
For some heads, there may be a phase difference
right and left channels when the output is made maximum.
In this case, adjust the head azimuth so that such phase
difference will be as small as possible while keeping the out-
put still maximum.
PLAYBACK SENSITIVITY ADJUSTMENT
•
(See Figure 14-2)
I. Connect an Electronic Voltmeter between Record/PIay-
backDINSocket J1033 Pin(or@ Pin)and 2 Pin
(ground).
2. Insert the test tape (MTT-150, 400Hz, 200pWb/mm
recorded
3. Set the Dolby NR switch SW201 to the off position
and Tape Selector switch SW203 and SW204 to the
Normal position.
4. Adjust the semi-variable resistor VRIOI (or V RI 02) so
that the Electronic Voltmeter readingbecomes580mV.
DISPLAY ADJUSTMENT OF RECORD/PLAYBACK
•
Label
LEVEL METER (See Figure 14-3)
1. Connect an Electronic Voltmeter between Record/PIay-
Manual
back DINSocket J103 @ Pin(or@ Pin) a nd@Pin
(ground).
2. ConnectCR oscillator to the External MicrophoneJIOI A
(or JIOI B), and apply signal (I kHz. —60dB) to the unit.
3. Place the unit in Record mode. Set the Record Mode
117AFZZ
switch SW202 to manual position and adjust the record
volume control VR103A (or V R103B) so that the
Electronic Voltmeter will indicate 580mV.
4. Adjust the sensitivity adjustment control V R107 (or
V R108) so that the 4th LED of the level meter will
light up.
AUDIO CIRCUIT ADJUSTMENT
ADJUSTMENT
to the Ex- E.V. : (Electronic Voltmeter)
Play Oack mode Socket '601
Test Tacr
—1 OdB Record-
unit
J602
as Sman as possible
and the same phase in
also adjust the
of both
the maximum and the
Figure
between
Playback
DIN
@e.nIorOpini
unit
130
Figure
External Microphone
Socket J TOIA 10' J 101B) Record mode
o
Figure
14 —
.2
O CHI CH2
37
14-1
Osc
Socket
@Pin IGNO'
14-2
OSCO
DIN Socket
o
unit
14-3
