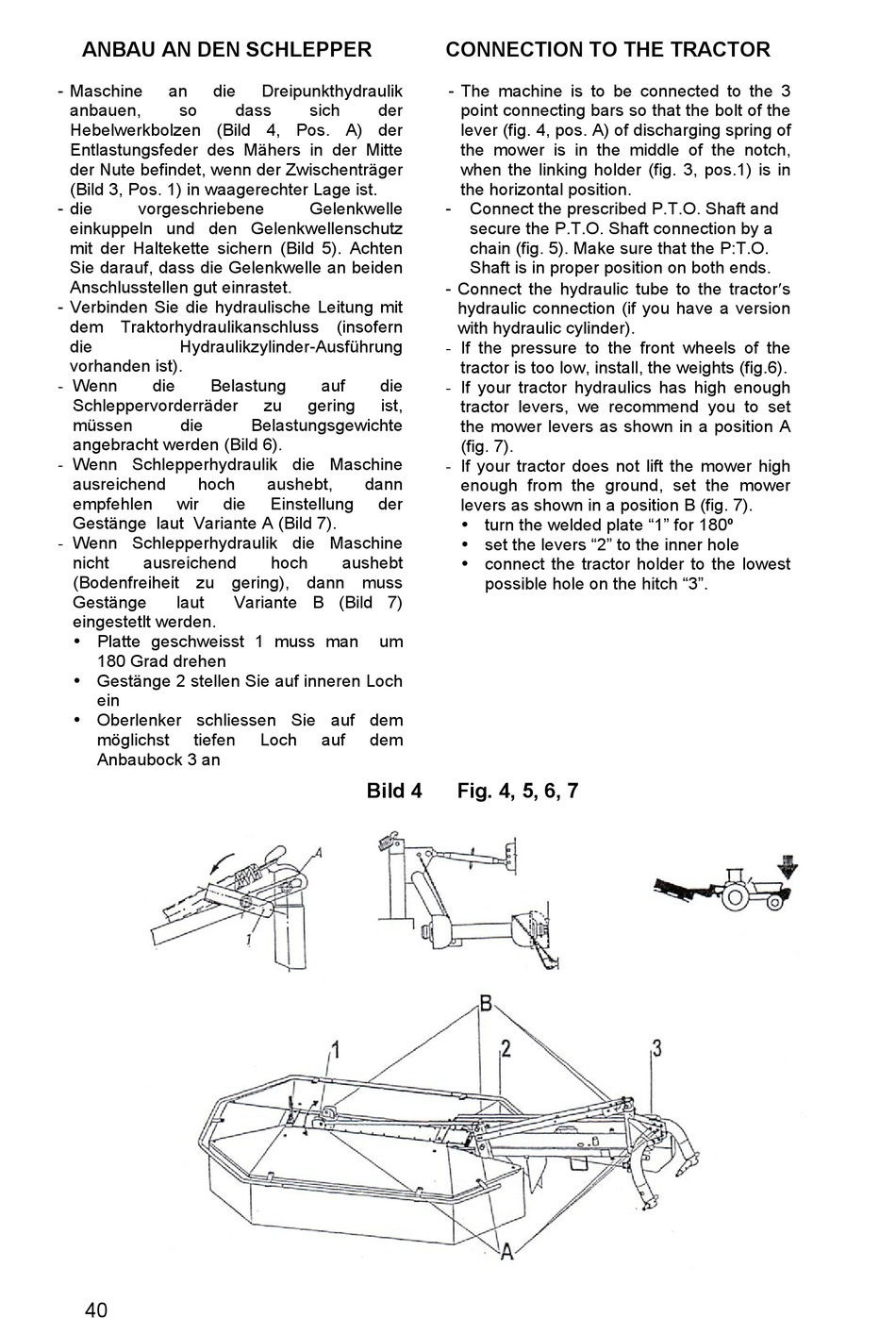

ANBAU AN DEN SCHLEPPER
- Maschine
an
die
anbauen,
so
Hebelwerkbolzen (Bild 4, Pos. A) der
Entlastungsfeder des Mähers in der Mitte
der Nute befindet, wenn der Zwischenträger
(Bild 3, Pos. 1) in waagerechter Lage ist.
- die
vorgeschriebene
einkuppeln und den Gelenkwellenschutz
mit der Haltekette sichern (Bild 5). Achten
Sie darauf, dass die Gelenkwelle an beiden
Anschlusstellen gut einrastet.
- Verbinden Sie die hydraulische Leitung mit
dem Traktorhydraulikanschluss (insofern
die
Hydraulikzylinder-Ausführung
vorhanden ist).
- Wenn
die
Belastung
Schleppervorderräder
müssen
die
angebracht werden (Bild 6).
- Wenn Schlepperhydraulik die Maschine
ausreichend
hoch
empfehlen
wir
die
Gestänge laut Variante A (Bild 7).
- Wenn Schlepperhydraulik die Maschine
nicht
ausreichend
(Bodenfreiheit zu gering), dann muss
Gestänge
laut
eingestetlt werden.
Platte geschweisst 1 muss man
180 Grad drehen
Gestänge 2 stellen Sie auf inneren Loch
ein
Oberlenker schliessen Sie auf dem
möglichst
tiefen
Anbaubock 3 an
40
Dreipunkthydraulik
dass
sich
der
Gelenkwelle
auf
die
zu
gering
ist,
Belastungsgewichte
aushebt,
dann
Einstellung
der
hoch
aushebt
Variante B (Bild 7)
um
Loch
auf
dem
Bild 4
CONNECTION TO THE TRACTOR
- The machine is to be connected to the 3
point connecting bars so that the bolt of the
lever (fig. 4, pos. A) of discharging spring of
the mower is in the middle of the notch,
when the linking holder (fig. 3, pos.1) is in
the horizontal position.
-
Connect the prescribed P.T.O. Shaft and
secure the P.T.O. Shaft connection by a
chain (fig. 5). Make sure that the P:T.O.
Shaft is in proper position on both ends.
- Connect the hydraulic tube to the tractors
hydraulic connection (if you have a version
with hydraulic cylinder).
- If the pressure to the front wheels of the
tractor is too low, install, the weights (fig.6).
- If your tractor hydraulics has high enough
tractor levers, we recommend you to set
the mower levers as shown in a position A
(fig. 7).
- If your tractor does not lift the mower high
enough from the ground, set the mower
levers as shown in a position B (fig. 7).
turn the welded plate "1" for 180º
set the levers "2" to the inner hole
connect the tractor holder to the lowest
possible hole on the hitch "3".
Fig. 4, 5, 6, 7
