Installation and operating guide

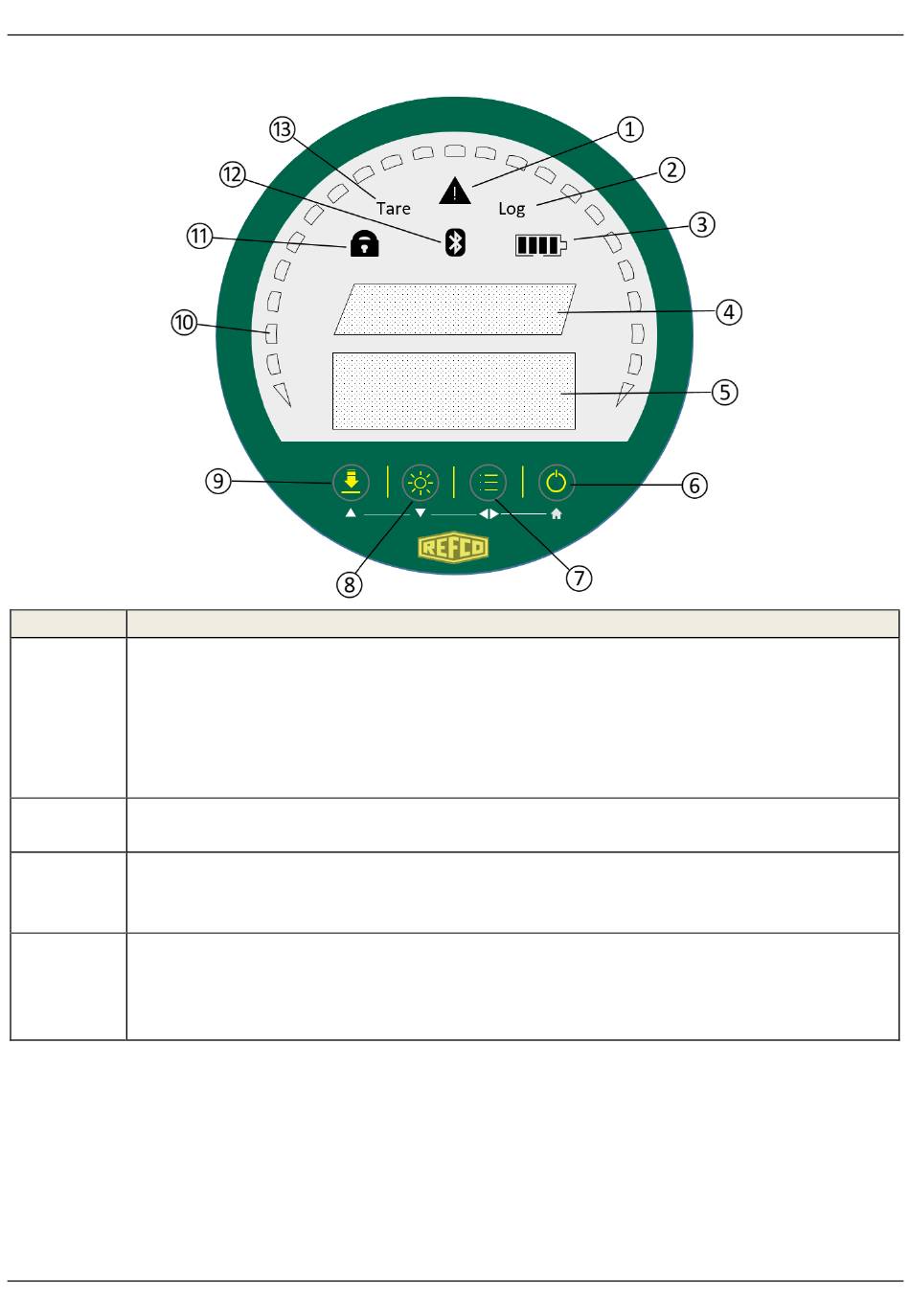

Display
Position Description
① Warning symbol
The symbol lights up when
- Values are above or below the pressure range
- Values are above or below the temperature range
- The logger memory reaches 90% capacity
- A device error occurs or battery charge is < 10%
② Log (optional)
Active logger function
③ Battery charge display
The battery symbol is permanently lit; each segment indicates 20%
battery capacity
④ Pressure display
The 5 ½-digit, 7-segment display always shows the current pressure. If
the pressure value is no longer current, dashes are displayed (for 10 s in
low-power mode)
