Technical information

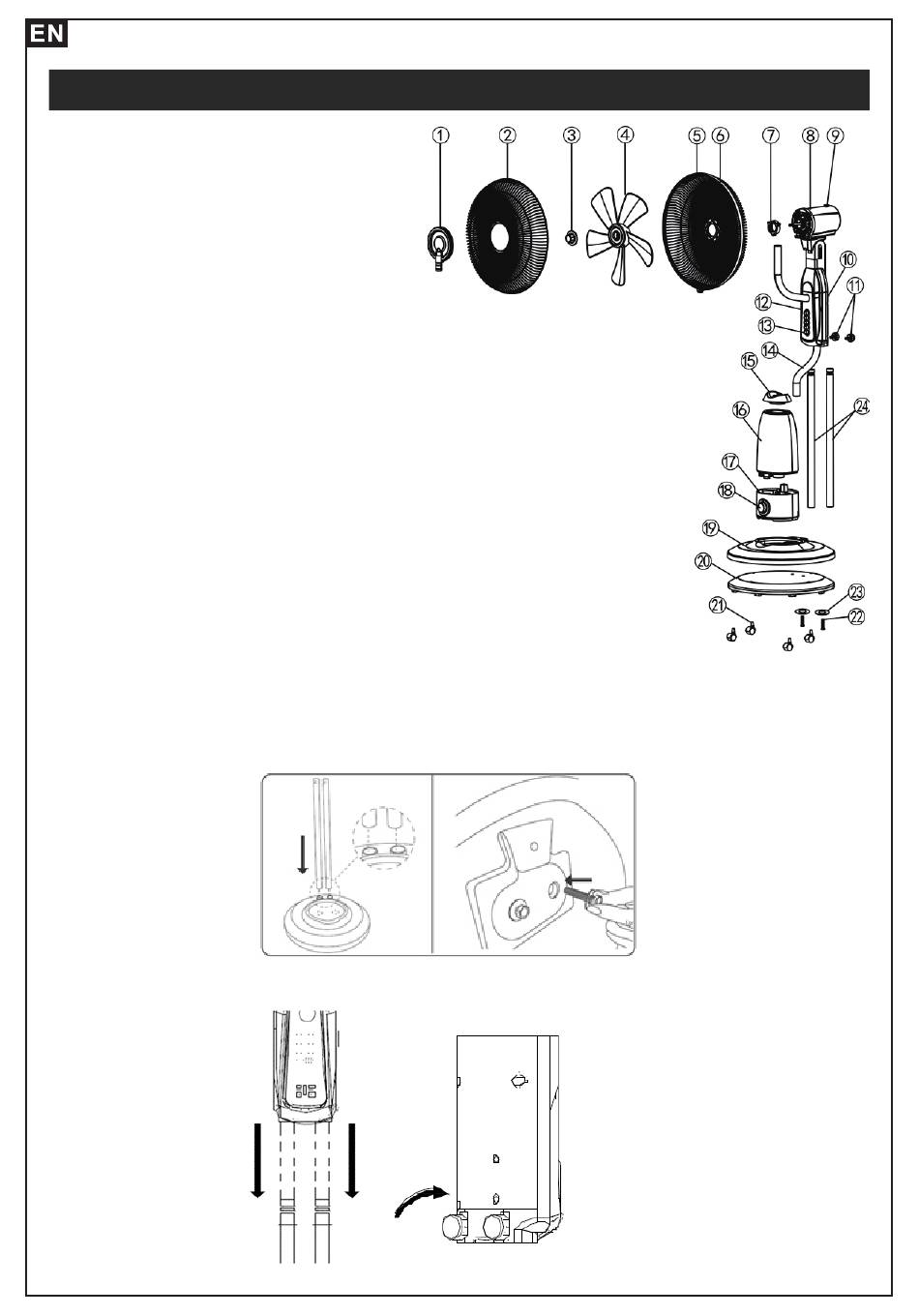

1. Misting Board
2. Front Grill
3. Blade Lock Nut
4. Blades
5. Back Grill
6.Grill Ring
7.Grill Lock Nut
8. Motor Holder
9.Oscillation Button
10. Back Shell
11. Nut
12.Panel
13. Switch
14. Misting Tube
15. Top Cap
16. Water Tank
17. Tank Bracket
18.Knop
19.Base
20.Weight Rubber
Instructions for use
1. Insert the support tube (24) into the base (19), and tight up by the screw (16) and the
gasket (23).
2. Insert the main body into the support tube (24), and tight up by the nut (11).
21.Wheels
22.Screw
23.Gasket
24. Support Tube
