10. Hydraulic diagrams
68
Recommended settings:
Parameter
Central heating pump start temperature
Mixing valve 1 control
Max. mixing valve 1 temperature
Mixing valve heating curve
Mixing valve 1 outdoor temperature compensation
Select mixing valve 1 thermostat*
Mixing valve 2 control
Max. mixing valve 2 temperature
Mixing valve 2 heating curve
Mixing valve 2 outdoor temperature compensation
Select mixing valve 2 thermostat*

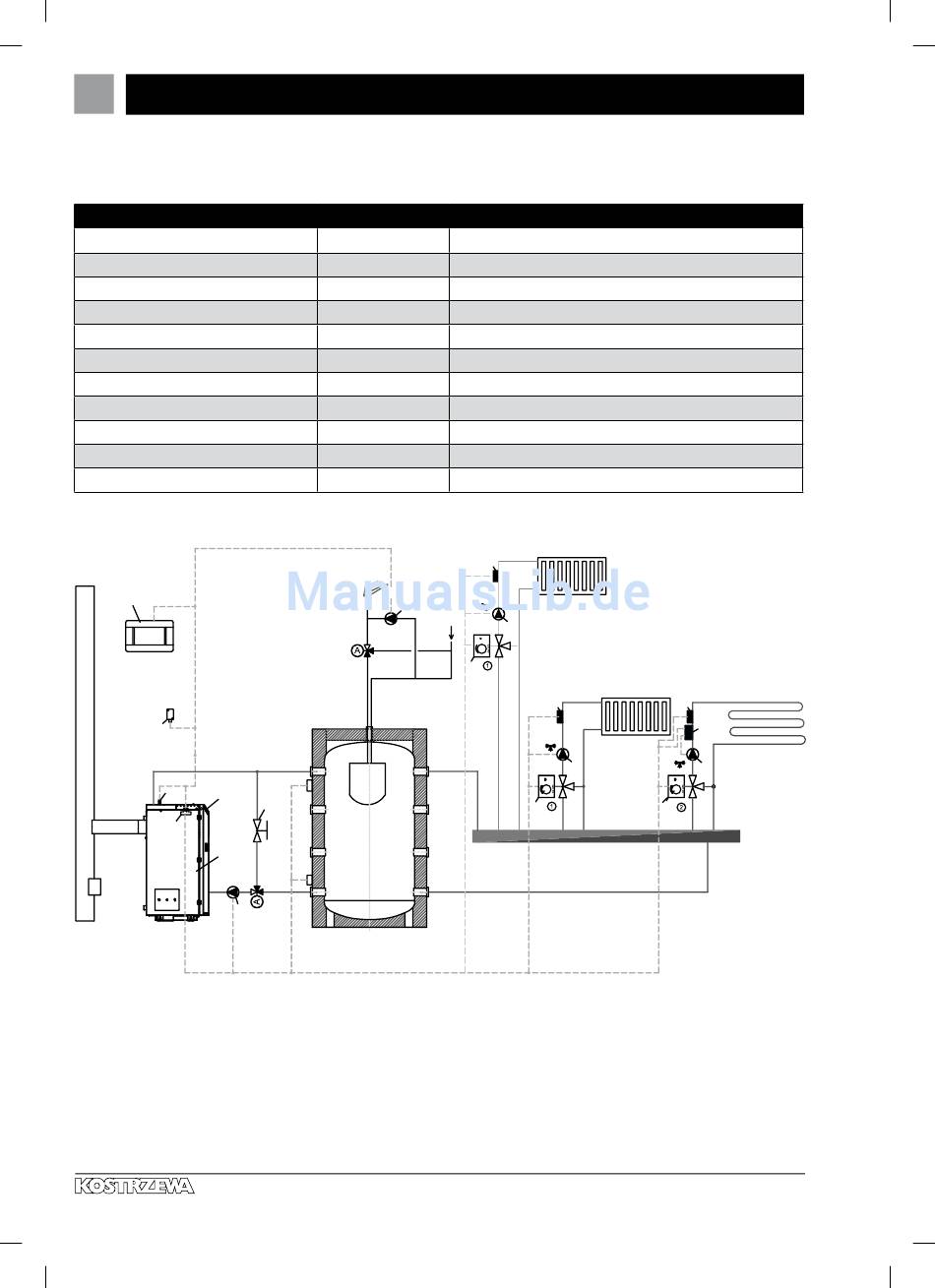

Diagram with buffer tank:
13
15
4 2
3
1
5
1. boiler,
2. control panel,
3. controller module,
4. CT4 boiler temperature sensor,
5. boiler pump,
6. buffer tank,
7. DHW pump,
8. mixing valve actuator,
9. CT4 mixing valve circuit temperature sensor,
Leader in pellet boilers
Setpoint
55°C
CH enabled
70°C
0.8 – 1.4
ON
ecoSTER T1
Floor heating ON
45°C
0.3 – 0.8
ON
ecoSTER T1
domestic hot water
7
11
11
Buffer tank
6
12
14
MENU
menu > service settings > CH and DHW settings
menu > service settings > mixing valve 1 settings
menu > service settings > mixing valve 1 settings
menu > mixing valve 1 settings
menu > mixing valve 1 settings
menu > service settings > mixing valve 1 settings
menu > service settings > mixing valve 2 settings
menu > service settings > mixing valve 2 settings
menu > mixing valve 2 settings
menu > mixing valve 2 settings
menu > service settings > mixing valve 2 settings
9
10
8
9
10
8
10. mixing valve pump,
11. CT4 buffer tank top temperature sensor,
12. CT4 buffer tank bottom temperature sensor,
13. ecoSTER TOUCH room temperature controller with local thermostat
function or standard room thermostat,
14. thermostatic three-way valve for return protection,
15. CT6-P weather compensator
16. additional protection system: thermostat disabling the pump at high
temperature of water supplying the floor heating system.
Platinum Bio ecoMAX 860P User Manual – EN 09.17
9
16
10
