10. Hydraulic diagrams
The following diagrams do not replace central heating and domestic hot water system design and are for information only.

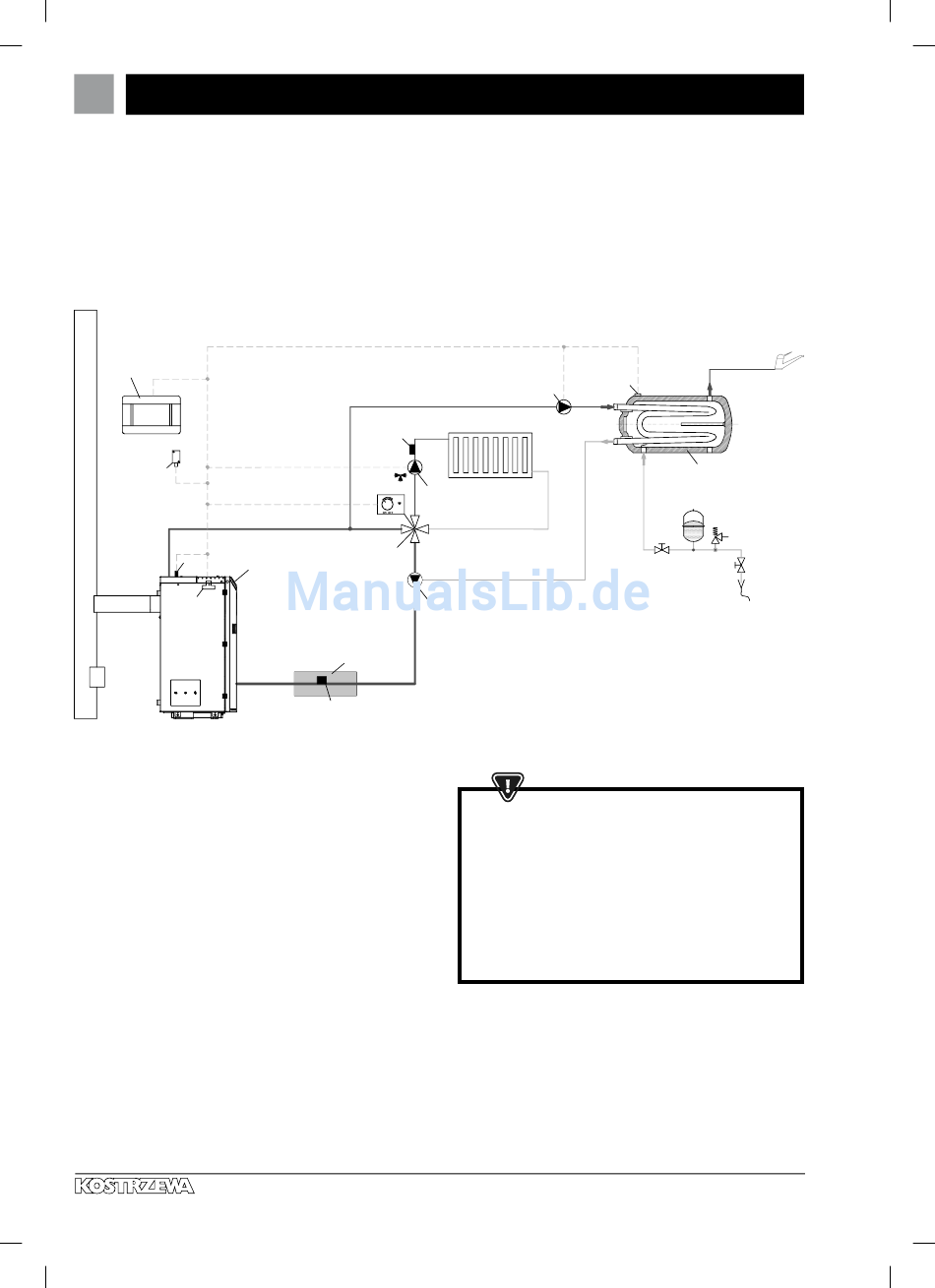

Diagram with four-way valve controlling the central heating circuit:
12
11
4
2
1. boiler with control panel;
2. controller module;
3. CT4 boiler return water temperature sensor;
4. CT4 boiler temperature sensor;
5. four-way valve with actuator;
6. mixing valve circuit pump;
7. CT4 mixing valve circuit temperature sensor;
8. DHW storage tank;
9. DHW pump;
10. temperature sensor CT4 DHW;
11. CT6-P weather compensator;
12. ecoSTER TOUCH room temperature controller with local thermostat
function or standard room thermostat;
13. thermal insulation;
14. boiler pump - forces water circulation with the four-way mixer closed to
protect the hose (used when the gravitational circuit does not allow for
return heating)
Leader in pellet boilers
7
5
1
13
3
9
6
14
SET HIGH BOILER TEMPERATURE SETPOINT FOR THE VALVE (6)
TO INCREASE RETURN WATER TEMPERATURE! TO IMPROVE
WATER CIRCULATION IN THE GRAVITY CIRCUIT (IN BOLD LINES):
USE HIGH NOMINAL PIPE OR FOUR-WAY VALVE DIAMETER, AVOID
BENDS AND REDUCTIONS IN DIAMETER, MAINTAIN MIN. 2°
GRADIENT ETC. IF THE SENSOR (3) IS ATTACHED TO THE PIPE,
USE FOAM INSULATION (14) COVERING BOTH THE SENSOR
AND THE PIPE.
