8. Operation
58
8.2 Boiler startup and shutdown

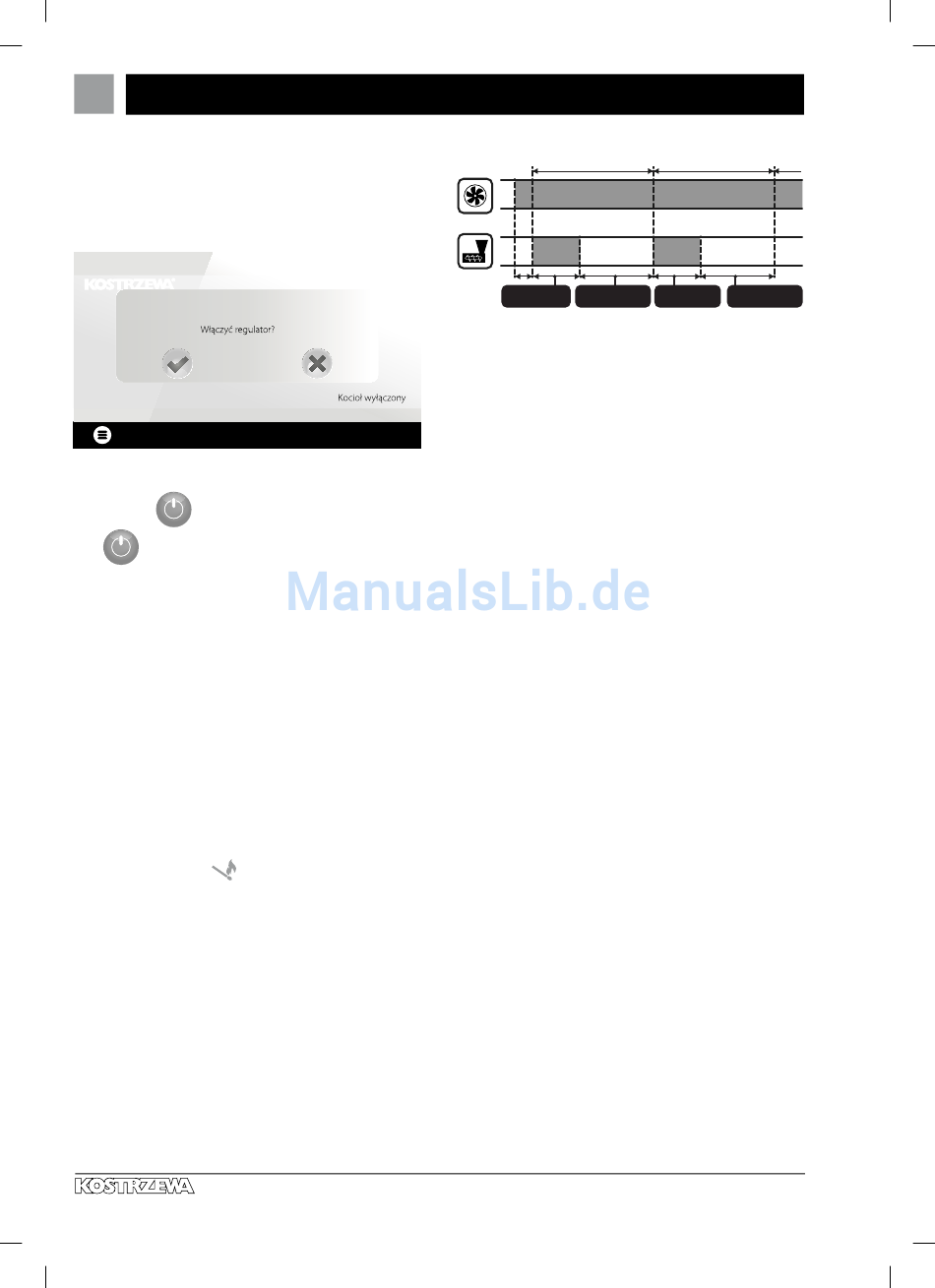

Make sure the fuel is available, the boiler door is closed, and touch the screen
(Boiler OFF); the following message is displayed: Turn the controller on?
ecoMAX860P3-O TOUCH (VG)
MENU |
Confirm to switch to startup mode. Alternative method:
Press Menu, select GREEN ICON in the menu.
Select RED ICON to turn the controller OFF.
8.3 Setting temperature setpoints
Boiler, DHW and mixing valve circuit temperature can be set in:
Boiler settings > Boiler temperature setpoint
DHW settings > DHW temperature setpoint
Mixing valve 1-5 settings > Mixing valve temperature setpoint
The controller can automatically increase boiler temperature setpoint to charge
DHW storage tank or supply mixing valve heating circuits.

8.4 STARTUP mode

STARTUP mode allows automatic startup of the burner. Startup parameters can
be modified in:
Service settings > Burner settings > Startup
In case the burner does not start, another attempts are made indicated with
a number by the igniter symbol .
After three failed attempts, Startup failed alarm is displayed and the boiler
stops. Theboiler will not resume operation automatically and user intervention
is required. The burner can be started again after the cause is identified and
remedied.

8.5 OPERATION mode

In OPERATION mode, the blower fan operates in continuous mode and the fuel
feeder is activated periodically. The cycle includes feeder operation time and
feeder idle time and is set with Cycle time parameter in OPERATION mode in:
Service settings > Burner settings > Operation
Leader in pellet boilers
T
5s
czas podawania przerwa podawania
praca praca
Feeder operation time is determined automatically based on the required
current burner power, feeder output and fuel calorific value. OPERATION mode
parameters can be modified in:
Service settings > Burner settings > Operation
Blow-in power parameters in OPERATION mode can be modified in:
Service settings > Burner settings > Operation > Blow-in settings.

8.6 Control modes

Two control modes are available for the boiler temperature setpoint
stabilization: Standard with a three-stage burner power modulation and Fuzzy
Logic with a smooth burner power modulation using the controller's algorithm.
The modes can be set in:
Boiler settings > Control mode
1. Operation in Standard mode.
The controller features burner power control mode which gradually
reduces power as the boiler temperature setpoint is reached.
For Maximum burner power, individual blow-in power can be.
set to nominal, intermediate or minimum, which along with the
maximum power, calorific value and feeder output determine the actual
burner power level. Blow-in power level parameters can be modified in:
Service settings > Burner settings > Operation > Blow-in
settings
The controller determines burner power based on the boiler temperature
setpoint and defined hysteresis
2. Operation in Fuzzy Logic mode.
In Fuzzy Logic mode, the controller automatically determines burner
power to maintain the boiler temperature at a set level. The controller
uses the blow-in power settings set in Standard mode. This mode allows
the temperature setpoint to be reached quicker. The boiler power can also
be limited with Min. and Max. parameters.
Platinum Bio ecoMAX 860P User Manual – EN 09.17
